#47138 – 9/8/23
Identification and Overview

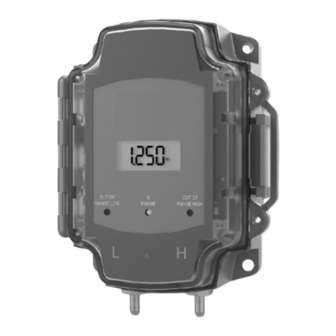

Standard Range ZPM - Zone Pressure Sensor in a BBox Enclosure
The ZPM is designed for quick and easy field installation. The outputs, ranges, units,
directionality, are all easily set in the field without powering the unit.
The optional LCD display helps with troubleshooting because it displays the actual
pressure regardless of the selected pressure range. Three LEDs on the face of the
unit indicate when the pressure is "Out of Range Low", "In Range" or "Out of Range
High" for the selected range. The appropriate LED will flash when out of range.
Part #: N1-ZPM-SR-ST-D-BB-C
Specifications
Catalog No. 11-808-1051-01
Ranges and outputs can be set easily without powering the
unit. Just open the hinged cover.
Specifications subject to change without notice.
Standard Range ZPM - Zone Pressure Sensor
Specification
Page 1 of 7
Advertisement
Related Manuals for Carrier N1-ZPM-SR-ST-D-BB-C
Summary of Contents for Carrier N1-ZPM-SR-ST-D-BB-C
- Page 1 “Out of Range Low”, “In Range” or “Out of Range High” for the selected range. The appropriate LED will flash when out of range. Part #: N1-ZPM-SR-ST-D-BB-C Ranges and outputs can be set easily without powering the unit.
- Page 2 Standard Range ZPM - Zone Pressure Sensor Specification #47138 – 9/8/23 Field Selectable Ranges and Outputs Catalog No. 11-808-1051-01 Specifications subject to change without notice. Page 2 of 7...
- Page 3 Standard Range ZPM - Zone Pressure Sensor Installation and Operation #47138 – 9/8/23 Switch Setup - Outputs, Ranges, Units/Response Always follow the Auto-Zero procedure after changing settings. Mounting 1. Attach the unit to its mounting surface with the four self-tapping #10x3/4” sheet metal screws through the holes in the mounting feet.
- Page 4 Standard Range ZPM - Zone Pressure Sensor Installation and Operation #47138 – 9/8/23 Catalog No. 11-808-1051-01 Specifications subject to change without notice. Page 4 of 7...
- Page 5 Standard Range ZPM - Zone Pressure Sensor Installation and Operation #47138 – 9/8/23 Mounting Template – Actual Size Catalog No. 11-808-1051-01 Specifications subject to change without notice. Page 5 of 7...
-
Page 6: Output Termination
Standard Range ZPM - Zone Pressure Sensor Installation and Operation #47138 – 9/8/23 Output Termination To ensure that all wires are properly terminated, twist the stripped ends of each wire together before inserting into the terminals. Gently tug on the wire after inserting into the terminal to verify a good connection. -
Page 7: Typical Applications
Standard Range ZPM - Zone Pressure Sensor Installation and Operation #47138 – 9/8/23 Typical Applications Figure 5: Air Filter Pressure Drop Monitoring (ZPM Pressure Figure 4: Duct Static Pressure Monitoring (ZPM Pressure Sensor Sensor mounted on the duct with a Static Pressure Probe on mounted on the duct with a Static Pressure Probe in the duct.) either side of the filter in a duct.) Form a drip loop in the tubing to prevent condensation from reaching the unit.
