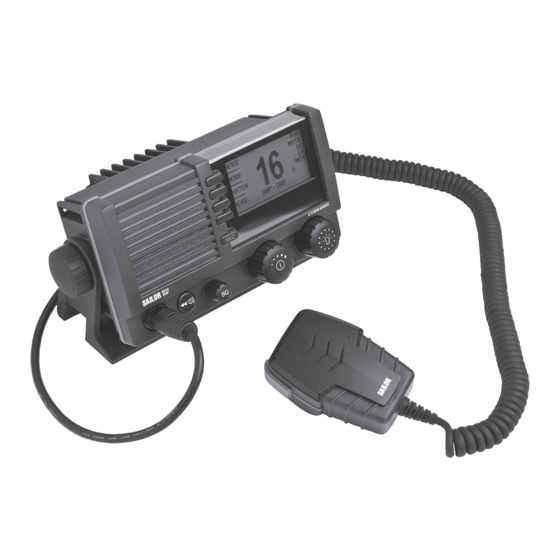

COBHAM SAILOR RT6210 User And Installation Manual
  1. Manuals
  2. Brands
  3. COBHAM Manuals
  4. Radio
  5. SAILOR RT6210
  6. User and installation manual

COBHAM SAILOR RT6210 User And Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SAILOR 6210 VHF
User and installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAILOR RT6210 and is the answer not in the manual?

Questions and answers

Related Manuals for COBHAM SAILOR RT6210

Summary of Contents for COBHAM SAILOR RT6210

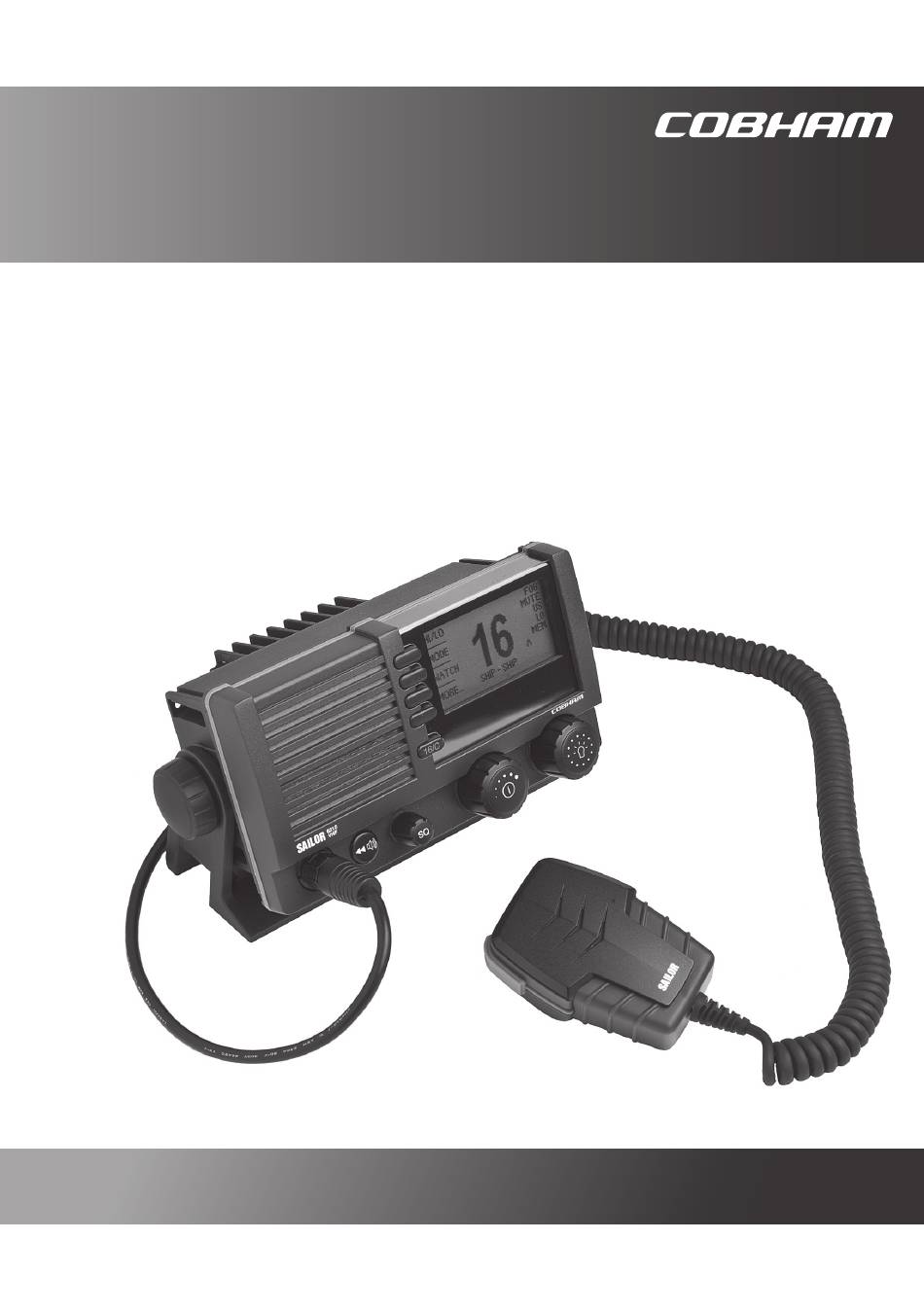

  • Page 1 SAILOR 6210 VHF User and installation manual...
  • Page 3 SAILOR 6210 VHF User and installation manual Document number: 98-128432-THR-I Release date: March 14, 2017...
  • Page 4 In the event of any discrepancies, the English version shall be the governing text. Thrane & Thrane A/S is trading as Cobham SATCOM. Manufacturer Thrane & Thrane A/S, Lundtoftegårdsvej 93D, DK-2800 Kgs. Lyngby, Denmark.
  • Page 5 Safety warning The following general safety precautions must be observed during all phases of operation, service and repair of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the equipment.
  • Page 6 Emergency calls M M M M M ak ak ak ak ake sur e sur e sure e e e e your e sur your your V V V V V HF your HF HF HF R R R R Radi adio o o o o i i i i i s on C s on C s on C...
  • Page 7 Preface Radio for occupational use The SAILOR 6210 VHF fulfils the requirements of the Radio Equipment Directive (RED) 2014/53/EU and is intended for use in maritime environment. SAILOR 6210 VHF is designed for occupational use only and must be operated by licensed personnel only. SAILOR 6210 VHF is not intended for use in an uncontrolled environment by general public.

  • Page 9: Table Of Contents

    Table of Contents Chapter 1 Introduction VHF radio ....................1 Chapter 2 Operation General use and navigation .............6 VHF radio communication ...............9 HI/LO transmission power ............. 15 Watch ...................... 16 Scan ......................17 Radio setup ................... 19 Loudhailer with talk-back ............... 22 Automatic foghorn ................
  • Page 10 Table of Contents Equipment and accessories ............48 Warranty ....................48 App. A Technical specifications App. B Maritime channels International channels (INT) ............51 US channels ..................52 CA channels ..................53 BI channels ................... 54 App. C Declaration of Conformity Glossary ..................

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction VHF radio SAILOR 6210 VHF is approved to Radio Equipment Directive (RED) and is waterproof to the IPx8 and IPx6 standard. As part of the safety equipment, use the SAILOR 6210 VHF in an emergency situation. However the best way to guarantee functionality in an emergency situation, is to...
  • Page 12 Chapter 1: Introduction Controls on the front plate 1. Loudspeaker. 2. Four soft keys with function title in the display. 3. Quick selection key for channel 16 and the programmed call channel. 4. Large display. 5. Connector for Handmicrophone or handset. If not used, put the cap from the ACC connector on the front connector to prevent water ingress.
  • Page 13 Chapter 1: Introduction SAILOR 6210 VHF display The picture shows the display after start-up.The display holds various fields of information, HI/LO DUAL WATCH depending on the currently WATCH selected function. SCAN 1. Current working channel. MORE... SHIP - SHIP 2. Functions you can select with the soft keys.
  • Page 14 Chapter 1: Introduction System configuration - example RX/TX Aerial SAILOR 6201 SAILOR 6204 Handset Control Speaker Microphone SAILOR 6202 Service Hand Microphone Cable SAILOR 6210 SAILOR 6201 Handset Option SAILOR 6207 N163S Connection Box SAILOR 6090 for parallel handsets Power Converter External 12V Battery DSC modem...

  • Page 15: Chapter 2 Operation

    Chapter 2 Operation Before using the VHF radio make sure that the VHF antenna, Note power and other external equipment are connected properly. For instructions see chapter Installation on page 27. In this chapter you find detailed instructions and guidelines for: •...

  • Page 16: General Use And Navigation

    Chapter 2: Operation General use and navigation Power on and speaker volume The VHF radio has a dual-function on/off wheel knob for power on/off and volume control. • To power on the VHF radio press the on/off wheel knob. • To power off the VHF radio, press and hold the on/off wheel knob and follow the instructions in the display.
  • Page 17 Chapter 2: Operation Speaker devices The VHF radio can be equipped with the following speaking devices: • SAILOR 6202 Handmicrophone with a PTT (Push To Talk) button. • Handset with a microphone, ear piece and a PTT button. The volume in the ear piece can be adjusted, for details see Controller setup on page 8.
  • Page 18 Chapter 2: Operation The functions of the SAILOR 6210 VHF are accessed and set using the four soft keys to the left of the display. The current function of a soft key is shown in the display next to the soft key. For some applications there are two control levels: •...

  • Page 19: Vhf Radio Communication

    Chapter 2: Operation Parameter Description Handset 1 vol: Adjust earpiece volume for handset 1: OFF, 1 to 14 Note: Default setting is OFF. If a handset is connected to the front connector this value must be configured to a value (1-14). Handset 2 vol: Adjust earpiece volume for handset 2: OFF, 1 to 14 Note: Default setting is OFF.
  • Page 20 Chapter 2: Operation Basic VHF operation You can make VHF calls using the Handmicrophone or another speaking device. A single, short press on the 16/C key will always bring Note you to channel 16, the international calling and distress channel, no matter what menu the radio is in. Quick guide to radio telephone calls 1.
  • Page 21 Chapter 2: Operation 7. Switch to the new channel by turning the selector wheel knob to the agreed channel and begin your conversation. Press PTT only when you are talking. Making a radio telephone call on channel 16 To make a radio telephone call, proceed as follows: 1.
  • Page 22 Chapter 2: Operation VHF channels You can change channels whenever the channel designator is displayed. Turn the selector wheel knob to browse through all channels that are available in the selected channel mode. The channels appear in the display in the following order: •...
  • Page 23 Chapter 2: Operation Programming a call channel To program a call channel (or quick selection), do as follows: 1. Make an extra-long press (2.5 s duration) on the 16/C key. 2. Press the soft key CALL CH. The channel designator is flashing.
  • Page 24 Chapter 2: Operation Display for non-VHF applications When the radio is used for functions other than VHF, the display is arranged differently. The large channel display moves to the bottom line along with selected icons. The channel displayed in this line will always reflect the communication channel on which the radio is tuned into for communication.

  • Page 25: Hi/Lo Transmission Power

    Chapter 2: Operation HI/LO transmission power Press the soft key HI/LO to toggle the transmit power between low (1 W) and high (25 W). If LO is not displayed, the transmit power is HI. US channels: Local mode, 10 dB attenuation To attenuate to the incoming signal, do as follows: 1.

  • Page 26: Watch

    Chapter 2: Operation Watch The SAILOR 6210 VHF radio can be set to dual watch or triple watch. In dual watch, the working channel and channel 16 are watched. In triple watch the working channel, channel 16 and the programmed call channel are watched.

  • Page 27: Scan

    Chapter 2: Operation Scan The radio has a scanning function for tagged channels. Any available channel, including weather and private channels, can be tagged and added to the scanning sequence. As default the radio scans with priority scanning of channel 16. If a signal is received while in any scanning mode, only channel 16 continues to be watched.
  • Page 28 Chapter 2: Operation US channels: Watch alarms for NOAA Weather alerts NOAA weather channels are available in the waters of USA and Note Canada only. You can turn on or off an independent watch alarm for a specific weather channel. To turn on or off an independent NOAA weather alarm do as follows: 1.

  • Page 29: Radio Setup

    Chapter 2: Operation Radio setup In the RADIO SETUP you set scan and watch mode, select the channel table and can set and view the ATIS code. To change a setting in the RADIO SETUP, do as follows: 1. Press the soft key SETUP. If it is not in the display, press the soft key MORE until SETUP appears.
  • Page 30 Chapter 2: Operation Para- Description meter Priority ON: All channels tagged for scanning are scanned while monitoring Scan channel 16. (default). OFF: Only the channels tagged for scanning are scanned in sequence, not channel 16, unless it is tagged for scanning. To select the channel table for the primary channel.
  • Page 31 Chapter 2: Operation Para- Description meter ATIS The ATIS code (Automatic Transmitter Identification System) is code used for identification to marine coast and inland stations and its use is mandatory in a number of European inland waterways such as e.g. the river Rhine. Like the MMSI number the ATIS number is issued by the relevant authority.

  • Page 32: Loudhailer With Talk-Back

    Chapter 2: Operation Loudhailer with talk-back The SAILOR 6210 VHF supports a loudhailer with a talk-back function. When the hailer is in talk-back mode and a radio signal is Important received, the radio signal has a higher priority and is heard in the loudspeaker.

  • Page 33: Automatic Foghorn

    Chapter 2: Operation Automatic foghorn The SAILOR 6210 VHF has an automatic fog horn application with several foghorn patterns. Once started, it runs in the background while running any other application. The fog horn may be combined with the loudhailer talk- back mode.
  • Page 34 Chapter 2: Operation 3. Press the selector wheel knob at the wanted pattern to accept the pattern. 4. To deactivate the foghorn, turn the selector wheel knob to browse to OFF and press the selector wheel knob. Foghorn test tone To manually control that the foghorn produces a blast tone, do as follows: The HORN key appears when no active fog pattern is...

  • Page 35: Hailer And Fog Horn Setup

    Chapter 2: Operation Hailer and Fog horn setup To change a setting in the HAILER/FOGHORN SETUP, do as follows: 1. Press the soft key SETUP. If it is not in the display, press the soft key MORE until SETUP appears. to advance to HAILER/FOGHORN 2.

  • Page 36: Replay Function

    Chapter 2: Operation Replay function Replay allows the operator to playback received voice messages in the loudspeaker. Recording is activated automatically when a signal is received. Recording is not possible during playback. Up to 60 tracks or 90 seconds can be handled. The recorded channel is displayed.

  • Page 37: Chapter 3 Installation

    Chapter 3 Installation In this chapter you find information and guidelines for: • Unpacking the SAILOR 6210 VHF • Installing the VHF radio • Power, VHF antenna and external equipment Unpacking the SAILOR 6210 VHF The following items are included in the delivery of a SAILOR 6210 VHF: •...

  • Page 38: Installing The Vhf Radio

    Chapter 3: Installation Installing the VHF radio You can mount the VHF radio as a desktop, overhead or flush-mounted unit integrated in the instrument panel. Provide space enough to access the front panel connectors and for installing a cradle for the speaking device. Provide at least 120 mm space at the back of the SAILOR 6210 VHF radio to allow free air circulation.
  • Page 39 Chapter 3: Installation SAILOR 6210 VHF with U mounting bracket The mounting bracket and two knobs are included in the delivery. Desktop mounting Installing the VHF radio...
  • Page 40 Chapter 3: Installation Overhead mounting Installing the VHF radio...
  • Page 41 Chapter 3: Installation Mounting with U mounting bracket To mount the VHF radio as tabletop, do as follows: 1. Find a suitable location for the VHF radio. Check that the space is wide/deep enough to accommodate the VHF radio. 2. Fasten the bracket with 4 screws (included in the delivery.)
  • Page 42 Chapter 3: Installation SAILOR 6210 VHF for flush mount You can mount the VHF radio to a flat surface, e.g. an instrument panel.The flush mount installation kit is included in the delivery. R2.5mm x 4 177mm Remove material from shaded area only! The scaling in the above drawing is not 1:1.
  • Page 43 Chapter 3: Installation 1. Find a suitable location for the VHF radio. Check that the space is deep enough to accommodate the VHF radio and an additional min. 120 mm space for cable entry. 2. Keep free distance to allow free air circulation around the VHF radio and to allow sufficient space for access to cables, see the drawing on this page.
  • Page 44 Chapter 3: Installation SAILOR 6202 Handmicrophone Handmicrophone with spiral cable and PTT button. Installing the VHF radio...

  • Page 45: Power, Vhf Antenna And External Equipment

    Chapter 3: Installation Power, VHF antenna and external equipment 1. ACC connector for accessories 2. CTRL connector for control speaker microphone 3. Power, Loudhailer, foghorn and external speaker 4. VHF antenna 5. Ground stud ACC connector Use the connector marked ACC to connect GPS input. The interface for GPS is NMEA 0183 (EN61 162-1 NMEA0183/ EN61 162-2 NMEA0183 Highspeed).
  • Page 46 Chapter 3: Installation Description Wire color NMEA out+ Green Mike 2 / Line in Yellow EAR 2 / Line out Grey Hook_PTT Pink Battery supply when radio is on Internal GND = - Battery Black Internal GND = - Battery Orange —...
  • Page 47 Chapter 3: Installation NMEA interface description NMEA Specifications interface Impedance: 600 Ohm NMEA input: Max. 2mA at min. level of 2V Load Impedance: > 60 Ohm NMEA output Drive load: < 35 mA The NMEA interface supports NMEA 0183 v2.0, v2.1 and v2.3. Power, VHF antenna and external equipment...
  • Page 48 Chapter 3: Installation The following sentences are supported: • FSI: All fields are decoded. • GGA: UTC, "Position", "quality indicator" (indicators 1-5). All other fields are unused. • GLL: UTC, "Position", "Status" and "mode" (indicators A and D). All other fields are unused.
  • Page 49 Chapter 3: Installation CTRL connector for control speaker microphone Connector type: Circular connector, 12pin. Pin assignment: Connector front view on the VHF radio: Description Description GND for cable screen Internal GND = - Battery Internal GND=- Battery not used Battery supply when radio is on RX out + Battery supply when radio is on 10 RX out - CAN+...
  • Page 50 Chapter 3: Installation Power, Loudhailer, foghorn and external speaker Use the connector marked PWR/EXT to connect power, loudhailer and an external speaker. The cable for this connector is part of the delivery. 1. Blue wire: Power - 2. Red isolation on inner connector: loudhailer 3.
  • Page 51 Chapter 3: Installation Protection against water ingress You must protect the cable connection with rubber vulcanizing Important tape as shown in the pictures below. This protection prevents water seeping into the VHF radio, cable and connectors. VHF antenna Use the connector marked ANT to connect the VHF antenna to the radio with a 50 Ohm coaxial cable with low loss, e.g.

  • Page 52: System Setup

    Chapter 3: Installation System setup To change a setting in the SYSTEM SETUP, do as follows: 1. Press the soft key SETUP. If it is not in the display, press the soft key MORE until SETUP appears. to advance to SYSTEM SETUP. 2.

  • Page 53: Sailor 6201 Handset Cradle (Optional)

    Chapter 3: Installation SAILOR 6201 Handset cradle (optional) Drilling plan * 120 Space for handset access This Handset has a hook-on/off function, which is activated by a small magnet embedded in the cradle. The cradle must be installed as illustrated in order to ensure the hook-on/off functionality of the Handset.
  • Page 54 Chapter 3: Installation SAILOR 6201 Handset cradle (optional)

  • Page 55: Chapter 4 Service & Maintenance

    Chapter 4 Service & maintenance Contact for support Contact your authorized dealer for technical service and support of the VHF radio. Before contacting your authorized dealer you can go through the troubleshooting guide to solve some of the most common operational problems.
  • Page 56 Chapter 4: Service & maintenance Troubleshooting guide Action Symptom Remedy The radio will The display is Check if power is present. not turn on empty. Check fuse which is placed in the + supply wire. Check performance of power supply if connected to one.
  • Page 57 Chapter 4: Service & maintenance Replacing the fuse in the red wire (Power +) One fuse is installed in the supplied DC cable. If the fuse is blown, track down why the fuse was blown and solve the problem. To replace the fuse, do as follows: 1.

  • Page 58: Equipment And Accessories

    Chapter 4: Service & maintenance Equipment and accessories SAILOR 6209 Accessory connection box You can use the SAILOR 6209 Accessory Connection Box to combine DSC modem and the SAILOR 6201 Handset option. The wire terminal blocks are connected in parallel. 36090 Warranty For repair or replacement of the VHF radio within terms of warranty,...

  • Page 59: Technical Specifications

    Appendix A Technical specifications Item Specification Weight SAILOR 6210 VHF approx. 1.2 kg Weight SAILOR 6210 VHF and approx. 1,5 kg including SAILOR 6202 Handmicrophone Handmicrophone and mounting bracket Height: Outer dimension 106 mm, hole Dimensions height for flush mount 89 mm Width: Outer dimension 190 mm, hole width for flush mount 177 mm Depth: Outer dimension from front of wheel...
  • Page 60 Appendix A: Technical specifications Item Specification Number of P channels The radio may be programmed with up to 40 private channels that can be managed in all channel modes. Transmit power Hi/Lo: 25 W and <1 W RF output power 25 W +0 dB / - 1.5 dB 1 W +0 dB / - 1.5 dB RF output power, Canada...

  • Page 61: Maritime Channels

    Appendix B Maritime channels International channels (INT) Channels SIMPLEX DUPLEX Channels SIMPLEX DUPLEX Intership Port Port Public Intership Port Port Public 156,050 160,650 156,025 160,625 156,100 160,700 156,075 160,675 156,150 160,750 156,125 160,725 156,200 160,800 156,175 160,775 156,250 160,850 156,225 160,825 156,300 156,300 156,275 160,875 156,350 160,950...

  • Page 62: Us Channels

    Appendix B: Maritime channels US channels Channels SIMPLEX DUPLEX Channels SIMPLEX DUPLEX Channels 156,050 156,050 162,550 162,400 162,475 156,175 156,175 162,425 156,250 156,250 162,450 156,300 156,300 156,275 156,275 162,500 156,350 156,350 156,325 156,325 162,525 156,400 156,400 156,375 156,375 156,450 156,450 156,425 156,425 156,500 156,500 156,475 156,475...

  • Page 63: Ca Channels

    Appendix B: Maritime channels CA channels Channels SIMPLEX DUPLEX Channels SIMPLEX DUPLEX Channels 156,050 160,650 156,025 160,625 162,550 156,100 160,700 156,075 156,075 162,400 156,150 160,750 156,125 156,125 162,475 156,200 156,200 156,175 156,175 162,425 156,250 156,250 156,225 160,825 162,450 156,300 156,300 156,225 156,225 162,500 156,350 156,350...

  • Page 64: Bi Channels

    Appendix B: Maritime channels BI channels SIMPLEX DUPLEX SIMPLEX DUPLEX Channels Channels Intership Port Port Public Intership Port Port Public 156,050 160,650 156,025 160,625 156,100 160,700 156,075 160,675 156,150 160,750 156,125 160,725 156,200 160,800 156,175 160,775 156,250 160,850 156,225 160,825 156,300 156,300 156,275 160,875 156,350 160,950...
  • Page 65 Chapter B: Maritime channels Private channels Up to 40 licensed private channels may be specified. For programming the private channels contact your local dealer. BI channels...
  • Page 66 Chapter B: Maritime channels BI channels...

  • Page 67: Declaration Of Conformity

    Declaration of Conformity EU Declaration of Conformity Thrane & Thrane A/S declares that the equipment complies with the specifications of the Radio Equipment Directive (RED) 2014/53/EU. The full text of the EU Declaration of Conformity is available at the internet address: https://sync.cobham.com/satcom/products/marine...
