Akces-Med KUKINI User Manual

Special needs stroller
Hide thumbs Also See for KUKINI:
Table of Contents

Advertisement

Quick Links

Download this manual
TM
KUKINI
Special needs stroller
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KUKINI and is the answer not in the manual?

Questions and answers

Related Manuals for Akces-Med KUKINI

Summary of Contents for Akces-Med KUKINI

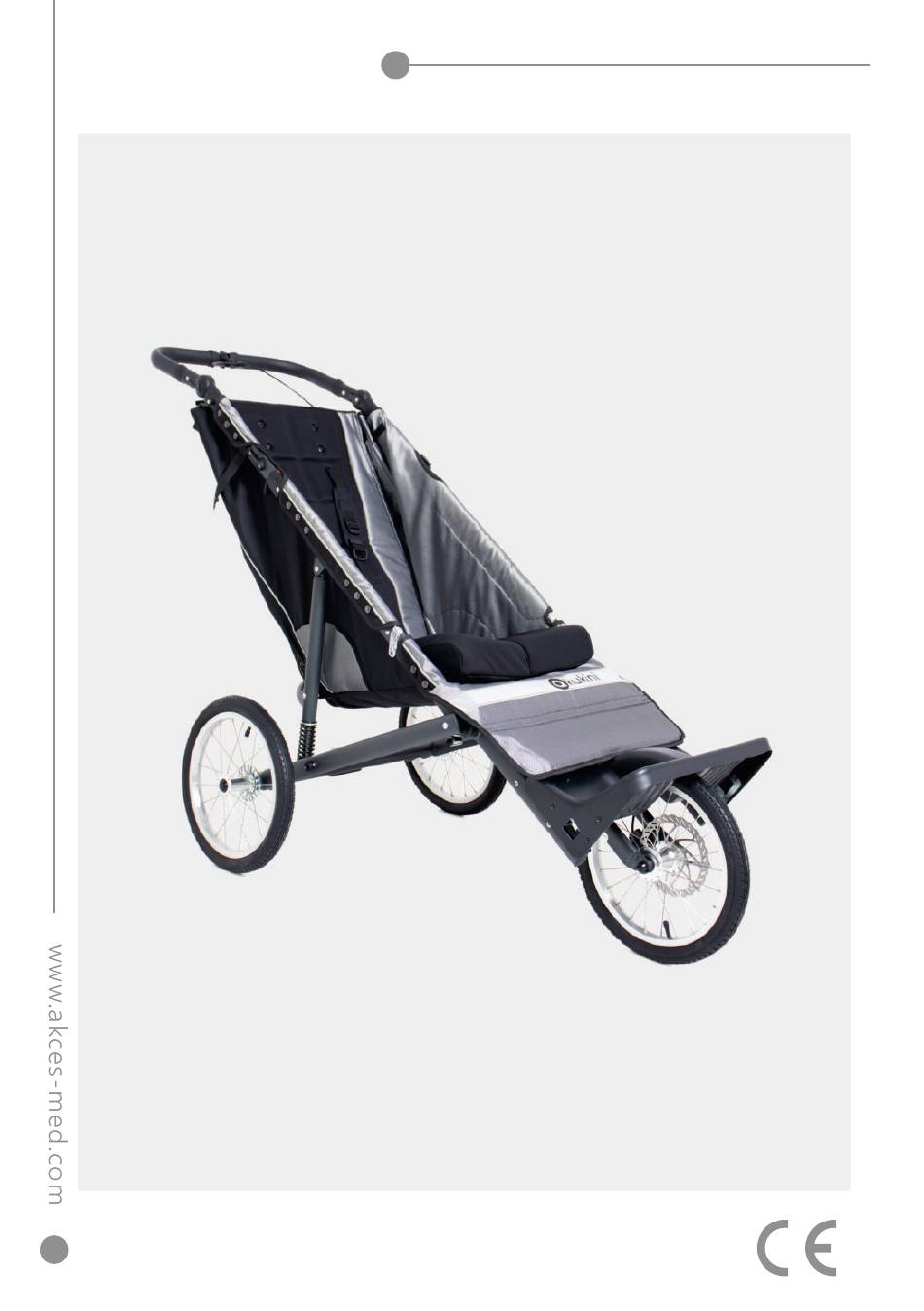

  • Page 1 KUKINI Special needs stroller User manual...
  • Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-MED Ltd. employee or at specialized medical store! Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.

  • Page 3: Table Of Contents

    Contents Introduction....................................4 1. The purpose of user manual...............................5 2. Indications and contraindications for use........................5 3. General characteristic of the stroller..........................7 4. Size table....................................8 5. How to use the stroller.................................9 5.1 Unfolding the stroller..............................9 5.2 Folding the stroller..............................10 5.3 Footrest..................................11 5.4 Removing the wheels..............................12 5.5 5-point safety belts..............................13 5.6 Adjustable backrest..............................16 5.7 Push handle................................17...

  • Page 4: Introduction

    Thanks to its low weight, KUKINI™ will work well for both long walks and running training. It is designed for people with a height of 100 to 135 cm and maximum weight of 40 kg (for size 1) and for people with a height of 130 to 165 cm and maximum weight of 65 kg (for size 2).

  • Page 5: The Purpose Of User Manual

    1. The purpose of user manual ATTENTION! The instruction manual contains basic information necessary to properly prepare the stroller before use, use the stroller, maintain and clean the stroller. This user manual should be kept in an easily accessible place. The manual is intended for people who look after disabled users, as well as for doctors and physiotherapists handling the stroller.
  • Page 6 2. Indications and contraindications for use Contraindications for sitting: Critical condition of the user, ź Paralysis, ź Deep sedation, ź Unstable fractures with specific orthopedic recommendations, including spine fractures, ź Untreated deep vein thrombosis, ź Hemodynamic instability, ź Identified brain dysfunction when sitting upright, ź...

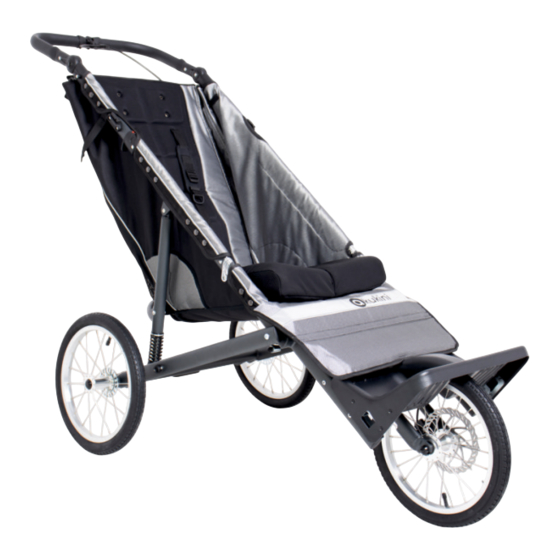

  • Page 7: General Characteristic Of The Stroller

    WITH VISmemo FOAM ADJUSTABLE REMOVABLE INFLATABLE FOOTREST REAR WHEELS REMOVABLE INFLATABLE FRONT WHEEL FOLDABLE ALUMINIUM FRAME EQUIPPED WITH A FRONT WHEEL DISC BRAKE AND REAR WHEEL CENTRAL BRAKE VOYAGER BACKPACK INFORMATION! Accessories for the KUKINI are available on the website: en.akces-med.com/product/kukini/...

  • Page 8: Size Table

    4. Size table Symbol Measurement Unit Size 1 Size 2 indicative user height * [cm] 100 - 135 130 - 165 seat width [cm] seat depth [cm] headrest height [cm] 47 - 60 60 - 78 backrest height [cm] backrest width [cm] footrest length [cm]...

  • Page 9: How To Use The Stroller

    5. How to use the stroller 5.1 Unfolding the stroller INFORMATION! The stroller has the ability to remove the wheels. It allows to reduce the size of the product making it easier to transport or store. Wheels assembly is shown on page 12 of the manual. ATTENTION! Pay particular attention to foldable parts of the stroller frame, which pose a risk of injury.

  • Page 10: Folding The Stroller

    5. How to use the stroller 5.2 Folding the stroller INFORMATION! We recommend pulling down the footrest before starting to fold the stroller. There is a risk of damaging the footrest by hitting the ground with it while folding the stroller.

  • Page 11: Footrest

    5. How to use the stroller 5.3 Footrest INFORMATION! To change the height of the footrest, press the levers located on both sides of the footrest, using the holes located on both sides. It is possible to set the height of the footrest on three levels. Remember to secure the footrest cover by fastening the belt behind the footrest construction.

  • Page 12: Removing The Wheels

    5. How to use the stroller 5.3 Footrest 5.4 Removing the wheels FRONT WHEEL REAR WHEELS...

  • Page 13: 5-Point Safety Belts

    5. How to use the stroller 5.5 5-point safety belts INFORMATION! The belts can be mounted at a desired height on the backrest of the stroller - remember to mount both upper straps of the 5-poin safety belts at the same height. Each time before using the stroller, fasten the 5-point safety belts and check if they are properly fastened.
  • Page 14 5. How to use the stroller 5.5 5-points safety belts...
  • Page 15 5. How to use the stroller 5.5 5-points safety belts UNLOCKED THE 5-POINT SAFETY BELTS ATTENTION! Before using the stroller, check if 5-point safety belts are properly fastened.

  • Page 16: Adjustable Backrest

    5. How to use the stroller 5.6 Adjustable backrest INFORMATION! Before using the stroller, check if the locking element of the backrest angle is properly secured. Maximum load of the storage pocket behind the backrest is 1 kg. 5.7 Push handle INFORMATION! There is a wrist safety strap on the stroller's push handle - when worn by the caregiver, it prevents the stroller from moving away accidentally.

  • Page 17: Central Brake

    5. How to use the stroller 5.8 Central brake WHEELS UNLOCKED - START POSITION WHEELS BLOCKED - STOP POSITION ATTENTION! Note that only the center brake should be used when the wheelchair is parked. 5.9 Hand brake ATTENTION! The hand brake should be used only for slowing down the stroller, for example, when driving down a sloping terrain.
  • Page 18 5. How to use the stroller 5.9 Hand brake - adjustment diagram ATTENTION! Remember to adjust both the gap on the inner side and the gap on the outer side. Adjusting the gap only on one side can cause: contact between the brake linings and the brake disc, ź...
  • Page 19 5. How to use the stroller 5.9 Hand brake - adjustment diagram INSIDE STEP 2. Adjust with the lining adjustment screw. LINING ADJUSTMENT SCREW OUTSIDE STEP 3. Adjust by turning the cable adjustment knobs at the clamps and brake levers. (Y) CABLE ADJUSTMENT KNOB CABLE ADJUSTMENT NUT...

  • Page 20: Springs Adjustment

    5. How to use the stroller 5.10 Springs adjustment INFORMATION! It is possible to change the stiffness of the stroller springs, which allows for stiffening the construction or increasing its shock absorption. Adjustment should be made with a wrench included in the set.

  • Page 21: The Use Of The Stroller

    6. The use of the stroller ATTENTION! Before using the product, user is obliged to familiarize himself/herself with user manual. Do not forget to prepare both product as well as user before using the device. 6.1 Preparation of the user Before using the product, it is essential to make sure that: user's outfit is light and comfortable sporty clothes are advisable, ź...

  • Page 22: Preparation Of The Stroller

    6. The use of he stroller 6.2 Preparation of the stroller 1. Before use it is necessary to: unfold the device, ź check the correct mounting of the wheels and the inflation rate, if there is too little air they should ź...

  • Page 23: Safety Rules

    7. Safety rules ATTENTION! KUKINI stroller has to be used in compliance with guidelines in this user manual. Before each use, prepare user and the device It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of stroller and its size.
  • Page 24 7. Safety rules 9. It is important to engage brake during getting into and getting out the stroller. 10. Make sure that the user does not stand on the footrest when getting in and out of the stroller. 11. Make sure that all limbs are not close to spokes or other adjustable elements. 12.

  • Page 25: Terms Of Warranty

    ź If product is damaged, please contact our dealer or Akces-MED Ltd. customer service: (ph. +48 17 864 04 77, e-mail: export@akces-med.com). 9. Maintenance and cleaning...
  • Page 26 ATTENTION! Remember that upholstery has to be always dry before using! The manufacturer of the stroller, Akces-MED. Ltd., is not responsible for any damages caused by using unsuitable cleaners. Manufacturer takes responsibility only for hidden faults or damages which appeared despite the fact that user complied with the guidelines.
  • Page 27 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks General condition of the Before each use. Check: In case of any damage or defects, product.
  • Page 28 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Check: Once a month. Wheel axles, quick Clean the wheels when dirty.

  • Page 29: Labelling

    10. Labelling Declaration that the product meets the essential Do not chlorinate requirements Do not iron Catalog number Hand wash Serial number Wash at maximum temperature 40 Please read the manual instructions before use Dry clean You need to take special precautions! Any solvent except tetrachlorethylene Manufacturer Do not bleach...
  • Page 32 MANUFACTURER Authorised Dealer Akces-MED Ltd. Jasionka 955 B 36-002 Jasionka tel. +48 17 864 04 77 e-mail: export@akces-med.com BDO: 000031619 © Sławomir Wroński 2024...
