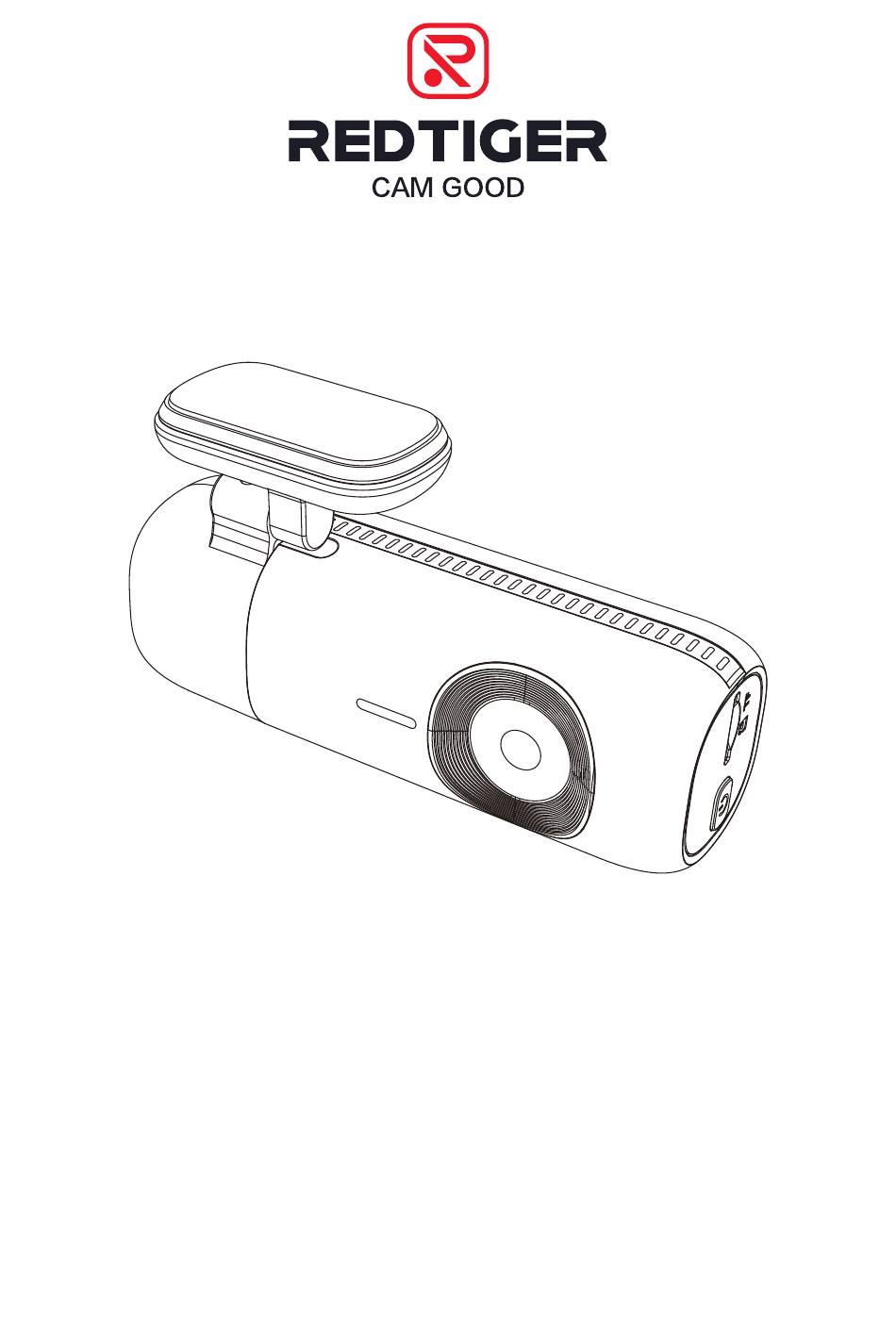

- Page 1 V2.1 User Manual redtigercam.com The information in this manual is subject to change without notice.
-
Page 2: Table Of Contents
Content Notice ......Product Specifications ..... Package Contents . -
Page 3: Notice
Notice • Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problems. • Improper installation will void the manufacturer's warranty. The installation instructions do not apply to all types of vehicles and are written as guidelines to assist in installing the system. -
Page 4: Product Specifications
Product Specifications Item Name F9 Dash Cam Video Format Photo Format Input DC 5V-2.5A Front 2160P @30fps+Rear 1080P@25fps Recording Front 1440P @30fps+Rear 1080P@25fps Resolution Front 1080P @30fps+Rear 1080P@25fps Operating F1.5 front camera -4°F~158°F Lens Temperature F2.0 rear camera Warranty Memory Card... -
Page 5: Package Contents
Package Contents • F9 4K Dash Cam • 1080P Rear Camera • Power Supply Cable • Electrostatic • Rear Cam Cable with Car Charger Sticker • User Manual • Tool • Cable Clips*5 • 3M Adhesive... -
Page 6: Appearance
Appearance 3M Adhesive Memory Card slot Front camera Power lens button Adjustable Type-C Mounting bracket port (GPS inside) Rear Cam slot Status light Blue light means power on, Red light flashing means recording... -
Page 7: Buttons And Functions
Buttons and Functions Power Button Power on state • Long press the power button to reset the dash cam. • Short press to lock/unlock the video. Power off state • Short press to turn on the dash cam. Indicator light •... -
Page 8: App And Wi-Fi Function
2. Turn on the Wi-Fi on the dash cam, the Wi-Fi and SSID and password will appear on the display. 3. Open Redtiger App> jump to the Wi-Fi connection interface according to the steps> find the Wi-Fi of the dash cam> enter the password to connect. - Page 9 • App Home Native Wi-Fi Name Turn on/off recorded sound Switch recording screen GPS information Rotate the video screen left Video play window and right Dash cam file Pause/start recording Take pictures Dash cam settings...
-
Page 10: How To Play Using A Computer
• Over-The-Air Updates Note: Please update the Redtiger App to the latest version to use this function. 1. To perform an over-the-air update, disconnect your phone from the dash cam’s Wi-Fi network. Connect your phone to LAN (not the dash cam’s Wi-Fi) for 5 seconds, then disconnect. - Page 11 Video play window (Front) Video play window (Rear) Map and track display Play control panel Speed and driving state indication Play list Note: If the video files of front and rear road tracks are recorded synchronously and loaded into the playing list at the same time, they can be played separately in split left and right screens.
-
Page 12: Installation
Please make sure to connect all cameras and wires before powering on the camera screen,otherwise the camera will not work properly.Please follow the instructions below for the first- time installation of the Redtiger dash cam. Scan the QR code on the right to view theinstallation tutorial video. - Page 13 • Front Camera Installation Peel off the electrostatic sticker on the cellophane and transfer it to where you want to stick it. Attach the front camera to the electrostatic sticker and firmly press to secure it.
- Page 14 • Mount The Rear Camera Open the trunk of the vehicle, remove the screws, remove the plastic panel. Pry open the license plate light and pass the rear camera cable through the hole where the license plate light is located. Note: This rear camera is specially designed to tolerate a variety of environmental conditions, and is better suited installed...
- Page 15 Use the crowbar to run the power cable along the front windshield and the roof, and hide the cable down the A-pillar, so as not to block the driver's sight and cause danger. Pillar A Connect the interface of the rear cable with the interface of the rear cam cable.
-
Page 16: Trouble Shooting
Trouble Shooting ・ WIFI CONNECTION GOES WRONNG Connection Prepare 1. Mobile data / VPN is off 2. 16 ft less close to your F9 3. Only allowed 1 device connection Connection Notice 1. WiFi password: 12345678 2. Connect only this time ・ OTHER PROBLEM Won’t enter Parking Mode 1. - Page 17 4. Plug SD card and see if the camera working, if not, please contact Redtiger. 5. If the methods above don't solve your problem, feel free to contact Redtiger and please leave your contact information and current address which may be needed if a replacement is warranted.
-
Page 18: Customer Service Center
If you have any problems with the function or installation of your dash cam, please feel free to reach out to us. Help Center WhatsApp Redtiger For more information: After sales: help@redtigercam.com Business Cooperation: contact@redtigercam.com Customer Phone Service: +1 888 966 8028 (US) - Page 19 Check us out here. Product and service are the foundation of Redtiger. Instagram: @redtiger_dashcam Facebook: Redtiger Dash Cam www.redtigercam.com...
