Summary of Contents for MW TOOLS 829300194

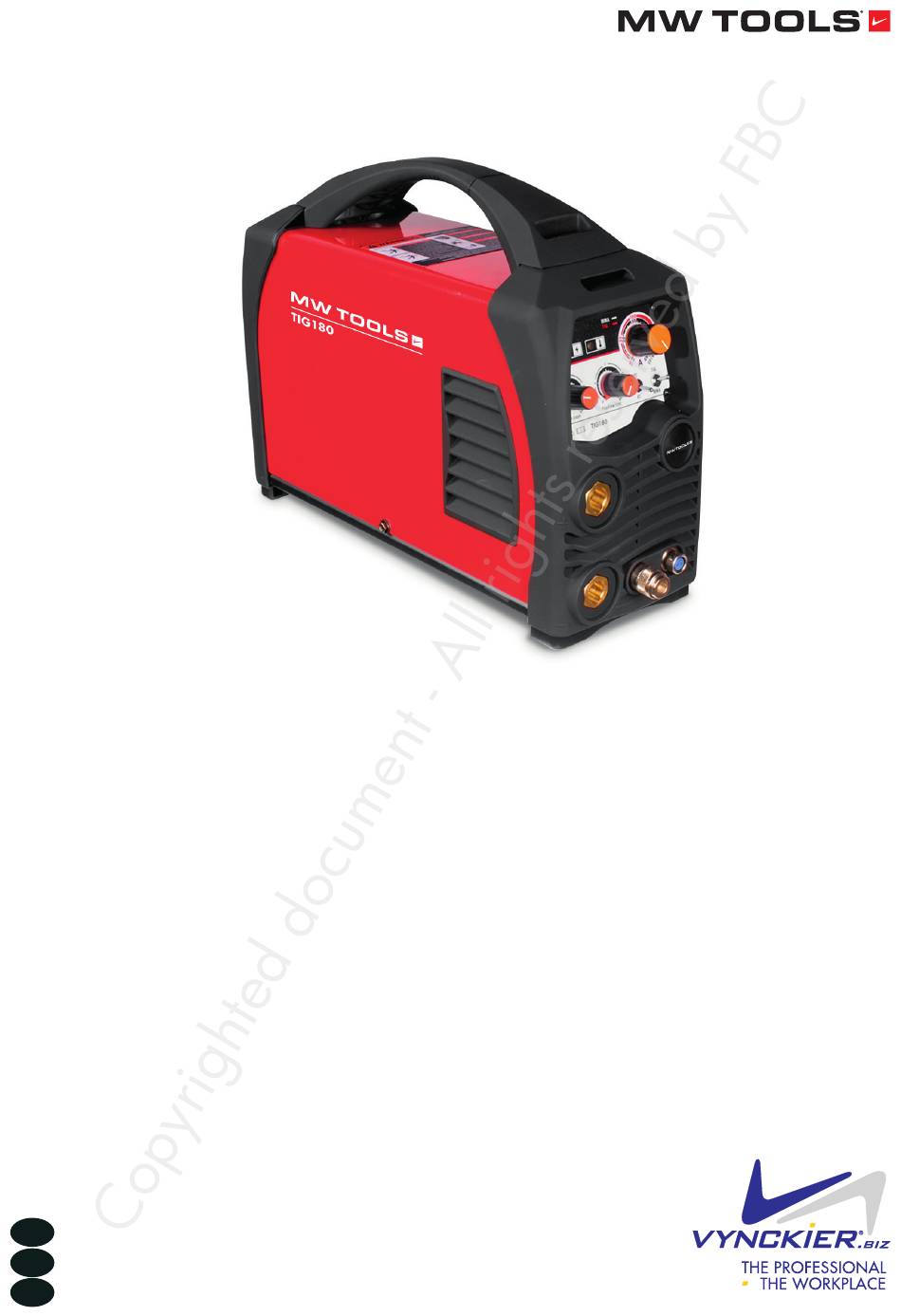

Page 1 M1.4.TIG180.NLFREN - 07012020 HANDLEIDING - MODE D’EMPLOI - MANUAL TIG 180 (829300194) Lastoestel Poste de soudage Welding machine P.02 Gelieve te lezen en voor later gebruik bewaren P.13 Veuillez lire et conserver pour consultation ultérieure P.24 Please read and keep for future reference...
Page 2: Table Of Contents
M1.4.TIG180.NLFREN - 07012020 Inhoud 1 Veiligheid ..............................2 2 Functieoverzicht............................. 4 3 Algemene kenmerken ............................. 4 Z210 SC-A0 4 Technische gegevens ............................. 5 5 Bedieningspanelen ............................6 6 Installatie en gebruik ............................6 A3. Storage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 2 3 3 7 Waarschuwingen ............................
Page 3: A3. Storage
M1.4.TIG180.NLFREN - 07012020 Z210 SC-A0 Z210 SC-A0 Arc radiation-may hurt your eyes and burn your skin! Arc radiation-may hurt your eyes and burn your skin! De boogstraling is gevaarlijk voor de ogen en de huid. Use proper welding mask and wear protective clothing to protect Use proper welding mask and wear protective clothing to protect ...
Page 4: Functieoverzicht
M1.4.TIG180.NLFREN - 07012020 2 Functieoverzicht • Hot Start vlamboogontsteking: maakt de boogontsteking in MMA lassen eenvoudiger en betrouwbaar. • VRD functie: beschermt de gebruiker wanneer het toestel inactief is. • Anti-stick functie: vermindert werksterkt bij het lassen. • Zelf-adaptieve Arc Force technologie: verbetert de efficiëntie van het toestel bij het lassen met lange kabels en maak lang afstand lassen mogelijk.
Page 5: Technische Gegevens
M1.4.TIG180.NLFREN - 07012020 4 Technische gegevens Kenmerken TIG 180 Ingangsspanning 230 V + 15% - 50/60 Hz Ingangsstroom 10 ~ 160 20,4 ~ 26,4 Lasstroom 10 ~ 180 10,4 ~ 17,2 Inschakelduur op 40 °C Nullastspanning Downslope tijd sec. 0 ~ 10 Post-flow tijd sec.
Page 6: Bedieningspanelen
1. Overheating LED: To indicate overheating. Overheating LED on indicates that the temperature inside the machine M1.4.TIG180.NLFREN - 07012020 is too high and the machine is under overheating W2060A SC-A0 protection status. 2. Power LED: To indicate the power. Power LED on 9.
Page 7 Voltage and with a power cord of appropriate specification throng a fuse with a capacity of 40A or more M1.4.TIG180.NLFREN - 07012020 TIG180(W206)/TIG200(W207) connect to AC230V±15﹪ TIG180(W208)/TIG200(W209) connect to AC115V±15﹪ or AC230V±15﹪ 2) The primary cable should be tightly connected to the correct socket to avoid oxidization. 3) Check whether the voltage value varies in acceptable range with a multi-me 6.1.1 Installatie voor TIG lassen 10.1.1 Installation in TIG...
Page 8 tighten it clockwise. 3) Insert the quick plug on the earth cable into the ‘‘+’’ quick socket on the machine panel, and tighten it clockwise. Clamp the workpiece with the work clamp at the other end of the earth cable. 4) Tightly connect the gas hose to the gas inlet on the back panel of the machine.
Page 9 M1.4.TIG180.NLFREN - 07012020 Lasparameters tabel (alleen ter referentie) Elektrode dia. Aanbevolen lasstroom (A) Aanbevolen lasspanning (V) (mm) 20~60 20,8~22,4 44~84 21,76~23,36 60~100 22,4~24,0 80~120 23,2~24,8 108~148 23,32~24,92 140~180 24,6~27,2 180~220 27,2~28,8 220~260 28,8~30,4 Nota: Die tabel geldt voor zacht staal lassen. Voor andere materialen, raadpleeg de geschikte documenten over de geschikte lasprocessen.
Page 10 M1.4.TIG180.NLFREN - 07012020 W2060A SC-A0 Parameters for TIG welding on titanium and its alloy (for reference only) TIG lasparameters op titanium en zijn legeringen (alleen voor referentie) Plate Electrode Wire Welding Nozzle Groove Welding Diameter Diameter Plaatdikte Diameter Lasstroom thickness diameter diameter current...
Page 11: Waarschuwingen
M1.4.TIG180.NLFREN - 07012020 7 Waarschuwingen 7.1 Werkomgeving 1. Laswerken moeten in een droge omgeving gebeuren, met minder dan 90% vochtigheid. 2. Werk bij een temperatuur tussen -10°C en 40°C. 3. Vermijd in de openlucht te lassen, behalve als u tegen zon en regen beschermd bent. 4.
Page 12: Onderhoud
M1.4.TIG180.NLFREN - 07012020 8 Onderhoud WAARSCHUWING: De onderhoud- en herstelwerken mogen alleen door gekwalificeerd personeel uitgevoerd worden. Schakel de machine uit voor onderhoud of reparaties. Voor deze te openen, maak zeker dat de machine niet meer aan het stroomnet aangesloten is. 1.
Page 13: Sécurité
M1.4.TIG180.NLFREN - 07012020 Table des matières 1 Sécurité ..............................13 2 Aperçu des fonctions ........................... 15 3 Caractéristiques générales ..........................15 4 Données techniques ............................. 16 Z210 SC-A0 5 Panneaux de contrôle ..........................17 6 Installation et utilisation ..........................17 A3.
Page 14 M1.4.TIG180.NLFREN - 07012020 Z210 SC-A0 Z210 SC-A0 Arc radiation-may hurt your eyes and burn your skin! Arc radiation-may hurt your eyes and burn your skin! Les rayons de l’arc peuvent endommager les yeux et la peau. Use proper welding mask and wear protective clothing to protect Use proper welding mask and wear protective clothing to protect ...
Page 15: Aperçu Des Fonctions
M1.4.TIG180.NLFREN - 07012020 2 Aperçu des fonctions • Fonction Hot Start : assure un allumage de l’arc plus facile et plus fiable. • Fonction 2T/4T pour un soudage longue durée. • Fonctions downslope et post-flow pour une belle soudure • Technologie Arc Force auto-adaptative : améliore sensiblement les performances de l’appareil pour les soudures avec un long câble et permet la soudure longue distance.
Page 16: Données Techniques
M1.4.TIG180.NLFREN - 07012020 4 Données techniques Données techniques TIG 180 Tension d’entrée 230 V + 15% - 50/60 Hz Courant d’entrée 10 ~ 160 20,4 ~ 26,4 Courant de soudage 10 ~ 180 10,4 ~ 17,2 Cycle de travail à 40 °C Tension à...
Page 17: Panneaux De Contrôle
9. OPERATION CONTROL AND DESCRIPTION 1. Overheating LED: To indicate overheating. Overheating LED on indicates that the temperature inside the machine M1.4.TIG180.NLFREN - 07012020 is too high and the machine is under overheating W2060A SC-A0 protection status. 2. Power LED: To indicate the power. Power LED on 9.
Page 18 1) Connect the power input terminal(AC INPUT)on the back panel of the machine to provisions of the Voltage and with a power cord of appropriate specification throng a fuse with a capacity of 40A or more M1.4.TIG180.NLFREN - 07012020 TIG180(W206)/TIG200(W207) connect to AC230V±15﹪ TIG180(W208)/TIG200(W209) connect to AC115V±15﹪...
Page 19 3) Insert the quick plug on the earth cable into the ‘‘+’’ quick socket on the machine panel, and tighten it clockwise. Clamp the workpiece with the work clamp at the other end of the earth cable. 4) Tightly connect the gas hose to the gas inlet on the back panel of the machine. The gas path should M1.4.TIG180.NLFREN - 07012020 include the cylinder, gas regulator and gas hose.
Page 20 M1.4.TIG180.NLFREN - 07012020 Tableau des paramètres de soudage (à titre de référence uniquement) Dia. électrode Courant de soudage Tension de soudage (mm) recommandé (A) recommandée (V) 20~60 20,8~22,4 44~84 21,76~23,36 60~100 22,4~24,0 80~120 23,2~24,8 108~148 23,32~24,92 140~180 24,6~27,2 180~220 27,2~28,8 220~260 28,8~30,4 Remarque : Ce tableau est valable pour le soudage d’acier doux.
Page 21 M1.4.TIG180.NLFREN - 07012020 W2060A SC-A0 Parameters for TIG welding on titanium and its alloy (for reference only) Paramètres de soudage TIG sur le titane est ses alliages (à titre de référence uniquement) Plate Electrode Wire Welding Nozzle Groove Welding Diamètre Diamètre Diamètre Diamètre...
Page 22: Précautions
M1.4.TIG180.NLFREN - 07012020 7 Précautions 7.1 Conditions de travail 1. Les travaux de soudage doivent s’effectuer dans un environnement sec, avec un taux d’humidité inférieur à 90%. 2. Travaillez sous une température entre -10°C et 40°C. 3. Évitez de souder à l’extérieur, sauf si vous êtes à l’abri du soleil et de la pluie. 4.
Page 23: Entretien
M1.4.TIG180.NLFREN - 07012020 8 Entretien AVERTISSEMENT: Les opérations de maintenance et de réparation doivent être effectuées par du personnel qualifié. Assurez-vous que la machine est débranchée avant tout travail d’entretien ou de réparation. 1. Contrôlez régulièrement les connexions internes (en particulier les prises). Resserrez les branchements desserrés. S’il y a de l’oxydation, enlevez-la avec du papier de verre, et ensuite rebranchez.
Page 24: Appendix B: Revision History
M1.4.TIG180.NLFREN - 07012020 Contents 1 Safety .................................24 2 Function overview ............................26 3 Performance characteristics ..........................26 Z210 SC-A0 4 Technical data .............................27 5 Operation control and description ........................28 A3. Storage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 2 3 3 6 Installation, debugging and operation ......................28 7 Caution ..............................
Page 25: Appendix C: Wiring Diagram Of Complete Machine
M1.4.TIG180.NLFREN - 07012020 Z210 SC-A0 Z210 SC-A0 Arc radiation—may damage eyes or burn skin. Arc radiation-may hurt your eyes and burn your skin! Arc radiation-may hurt your eyes and burn your skin! Use proper welding mask and wear protective clothing to protect ...
Page 26: Function Overview
M1.4.TIG180.NLFREN - 07012020 2 Function overview • Hot start arc ignition function: make the arc ignition in TIG welding under low current easier and more reliable. • 2T/4T function: ensure long-time welding. • Downslope and post-flow function: ensure nice welding process. •...
Page 27: Technical Data
M1.4.TIG180.NLFREN - 07012020 4 Technical data Technical parameter TIG 180 Rated input voltage 230 V + 15% - 50/60 Hz Rated input power 10 ~ 160 20.4 ~ 26.4 Welding current range 10 ~ 180 10.4 ~ 17.2 Rated duty cycle at 40 °C No-load voltage Downslope time 0 ~ 10...
Page 28: Operation Control And Description
9. OPERATION CONTROL AND DESCRIPTION 1. Overheating LED: To indicate overheating. Overheating M1.4.TIG180.NLFREN - 07012020 LED on indicates that the temperature inside the machine is too high and the machine is under overheating W2060A SC-A0 protection status. 2. Power LED: To indicate the power. Power LED on 9.
Page 29 1) Connect the power input terminal(AC INPUT)on the back panel of the machine to provisions of the Voltage and with a power cord of appropriate specification throng a fuse with a capacity of 40A or more M1.4.TIG180.NLFREN - 07012020 TIG180(W206)/TIG200(W207) connect to AC230V±15﹪ TIG180(W208)/TIG200(W209) connect to AC115V±15﹪...
Page 30 tighten it clockwise. 3) Insert the quick plug on the earth cable into the ‘‘+’’ quick socket on the machine panel, and tighten it clockwise. Clamp the workpiece with the work clamp at the other end of the earth cable. 4) Tightly connect the gas hose to the gas inlet on the back panel of the machine.
Page 31 M1.4.TIG180.NLFREN - 07012020 Welding parameters table (for reference only) Electrode dia. Recommended welding current Recommended welding voltage (mm) 20~60 20.8~22.4 44~84 21.76~23.36 60~100 22.4~24.0 80~120 23.2~24.8 108~148 23.32~24.92 140~180 24.6~27.2 180~220 27.2~28.8 220~260 28.8~30.4 Note: This table is suitable for mild steel welding. For other materials, consult related materials and welding process for reference.
Page 32 M1.4.TIG180.NLFREN - 07012020 W2060A SC-A0 Parameters for TIG welding on titanium and its alloy (for reference only) Parameters for TIG welding on titanium and its alloy (for reference only) Plate Electrode Wire Welding Nozzle Groove Welding thickness diameter diameter current Gas flow (L/min) diameter type...
Page 33: Caution
M1.4.TIG180.NLFREN - 07012020 7 Caution 7.1 Working Environment 1. Welding should be carried out in dry environment with humidity not greater than 90%. 2. The temperature of the working environment should be between -10° and 40°. 3. Avoid welding in the open air unless sheltered from sunlight and rain. Keep it dry at all times and do not place it on wet ground or in puddles.
Page 34: Maintenance
M1.4.TIG180.NLFREN - 07012020 8 Maintenance WARNING: The following operation requires sufficient professional knowledge on electric aspect and comprehensive safety knowledge. Operators should be holders of valid qualification certificates which can prove their skills and knowledge. Make sure the input cable of the machine is disconnected from the electricity utility before uncovering the welding machine.
Page 35: Onderdelen
M1.4.TIG180.NLFREN - 07012020 10 Onderdelen 10 Pièces détachées TIG180(W206)/TIG200(W207)/ TIG180D(W208) 10 Spare parts No. SAP Description Description Code Code 10004949 Power switch Thermal Switch 10041436 10041432 Power line Switching mode power supply transformer 10037134 10042342 Connector for input gas 12V Electric Relay 10006477 10044817 TIG180/TIG180 Dual Voltage Fan TOP266KG...
Page 36: Schakelschema
M1.4.TIG180.NLFREN - 07012020 W2060A SC-A0 8. ELECTRICAL SCHEMATIC DIAGRAM 11 Schakelschema 11 Schéma électrique 11 Electrical diagram Fig.8-1 TIG180(W206)/TIG200(W207) Fig.8-2 TIG180(W208)/TIG200(W209) 11 / 34...
Page 37: Eg Conformiteitsverklaring
Déclare par ceci que le produit suivant : Hereby declares that the following product : Product Lastoestel Produit Poste à souder Product Welding machine TIG 180 (829300194) Order nr. : Test report reference: WTD13S0806397E - WTD13D0806396S 2014/30/EU Geldende CE-richtlijnen Normes CE en vigueur EN60974-10:2007...
