M1.3.TIG180.NLFREN 07062018

P.02 Gelieve te lezen en voor later gebruik bewaren

P.13 Veuillez lire et conserver pour consultation ultérieure

P.24 Please read and keep for future reference

HANDLEIDING - MODE D'EMPLOI - MANUAL

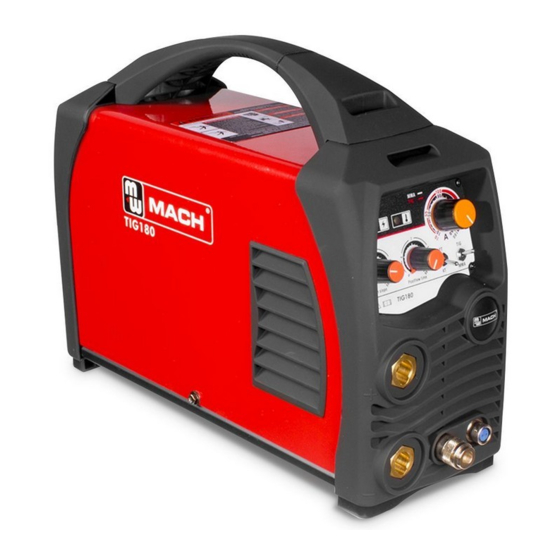

TIG 180 (829300194)

Lastoestel

Poste de soudage

Welding machine

Table of Contents

Chapters

Need help?

Do you have a question about the TIG 180 and is the answer not in the manual?

Questions and answers

Summary of Contents for MW TOOLS TIG 180

Page 1 M1.3.TIG180.NLFREN 07062018 HANDLEIDING - MODE D’EMPLOI - MANUAL TIG 180 (829300194) Lastoestel Poste de soudage Welding machine P.02 Gelieve te lezen en voor later gebruik bewaren P.13 Veuillez lire et conserver pour consultation ultérieure P.24 Please read and keep for future reference...
Page 2: Table Of Contents
M1.3.TIG180.NLFREN 07062018 Inhoud 1 Veiligheid ..............2 2 Functieoverzicht............. 4 3 Algemene kenmerken ............. 4 Z210 SC-A0 4 Technische gegevens ............. 5 5 Bedieningspanelen ............6 6 Installatie en gebruik ............6 A3. Storage ------------------------------------------------------------------------------------------------------------- 23 7 Waarschuwingen ............11 8 Onderhoud ..............
Page 3 M1.3.TIG180.NLFREN 07062018 Z210 SC-A0 Z210 SC-A0 Arc radiation-may hurt your eyes and burn your skin! Arc radiation-may hurt your eyes and burn your skin! De boogstraling is gevaarlijk voor de ogen en de huid. Use proper welding mask and wear protective clothing to protect Use proper welding mask and wear protective clothing to protect ...
Page 4: Functieoverzicht
M1.3.TIG180.NLFREN 07062018 2 Functieoverzicht • Hot Start vlamboogontsteking: maakt de boogontsteking in MMA lassen eenvoudiger en betrouwbaar. • VRD functie: beschermt de gebruiker wanneer het toestel inactief is. • Anti-stick functie: vermindert werksterkt bij het lassen. • Zelf-adaptieve Arc Force technologie: verbetert de efficiëntie van het toestel bij het lassen met lange kabels en maak lang afstand lassen mogelijk.
Page 5: Technische Gegevens
M1.3.TIG180.NLFREN 07062018 4 Technische gegevens Kenmerken TIG 180 Ingangsspanning 230 V + 15% - 50/60 Hz Ingangsstroom 10 ~ 160 20,4 ~ 26,4 Lasstroom 10 ~ 180 10,4 ~ 17,2 Inschakelduur op 40 °C Nullastspanning Downslope tijd sec. 0 ~ 10 Post-flow tijd sec.
Page 6: Bedieningspanelen
1. Overheating LED: To indicate overheating. Overheating LED on indicates that the temperature inside the machine M1.3.TIG180.NLFREN 07062018 is too high and the machine is under overheating W2060A SC-A0 protection status. 2. Power LED: To indicate the power. Power LED on 9.
Page 7 Voltage and with a power cord of appropriate specification throng a fuse with a capacity of 40A or more M1.3.TIG180.NLFREN 07062018 TIG180(W206)/TIG200(W207) connect to AC230V±15﹪ TIG180(W208)/TIG200(W209) connect to AC115V±15﹪ or AC230V±15﹪ 2) The primary cable should be tightly connected to the correct socket to avoid oxidization. 3) Check whether the voltage value varies in acceptable range with a multi-me 6.1.1 Installatie voor TIG lassen 10.1.1 Installation in TIG...
Page 8 tighten it clockwise. 3) Insert the quick plug on the earth cable into the ‘‘+’’ quick socket on the machine panel, and tighten it clockwise. Clamp the workpiece with the work clamp at the other end of the earth cable. 4) Tightly connect the gas hose to the gas inlet on the back panel of the machine.
Page 9 M1.3.TIG180.NLFREN 07062018 Lasparameters tabel (alleen ter referentie) Elektrode dia. Aanbevolen lasstroom (A) Aanbevolen lasspanning (V) (mm) 20~60 20,8~22,4 44~84 21,76~23,36 60~100 22,4~24,0 80~120 23,2~24,8 108~148 23,32~24,92 140~180 24,6~27,2 180~220 27,2~28,8 220~260 28,8~30,4 Nota: Die tabel geldt voor zacht staal lassen. Voor andere materialen, raadpleeg de geschikte documenten over de geschikte lasprocessen.
Page 10 M1.3.TIG180.NLFREN 07062018 W2060A SC-A0 Parameters for TIG welding on titanium and its alloy (for reference only) TIG lasparameters op titanium en zijn legeringen (alleen voor referentie) Plate Electrode Wire Welding Nozzle Diameter Diameter Groove Welding Plaatdikte Diameter Lasstroom thickness diameter diameter current Gas flow (L/min)
Page 11: Waarschuwingen
M1.3.TIG180.NLFREN 07062018 7 Waarschuwingen 7.1 Werkomgeving 1. Laswerken moeten in een droge omgeving gebeuren, met minder dan 90% vochtigheid. 2. Werk bij een temperatuur tussen -10°C en 40°C. 3. Vermijd in de openlucht te lassen, behalve als u tegen zon en regen beschermd bent. 4.
Page 12: Onderhoud
M1.3.TIG180.NLFREN 07062018 8 Onderhoud WAARSCHUWING: De onderhoud- en herstelwerken mogen alleen door gekwalificeerd personeel uitgevoerd worden. Schakel de machine uit voor onderhoud of reparaties. Voor deze te openen, maak zeker dat de machine niet meer aan het stroomnet aangesloten is. 1.
Page 13: Sécurité
M1.3.TIG180.NLFREN 07062018 Table des matières 1 Sécurité ..............13 2 Aperçu des fonctions ........... 15 3 Caractéristiques générales ..........15 4 Données techniques ............. 16 Z210 SC-A0 5 Panneaux de contrôle ..........17 6 Installation et utilisation ..........17 A3. Storage ------------------------------------------------------------------------------------------------------------- 23 7 Précautions ..............
Page 14 M1.3.TIG180.NLFREN 07062018 Z210 SC-A0 Z210 SC-A0 Arc radiation-may hurt your eyes and burn your skin! Arc radiation-may hurt your eyes and burn your skin! Les rayons de l’arc peuvent endommager les yeux et la peau. Use proper welding mask and wear protective clothing to protect Use proper welding mask and wear protective clothing to protect ...
Page 15: Aperçu Des Fonctions
M1.3.TIG180.NLFREN 07062018 2 Aperçu des fonctions • Fonction Hot Start : assure un allumage de l’arc plus facile et plus fiable. • Fonction 2T/4T pour un soudage longue durée. • Fonctions downslope et post-flow pour une belle soudure • Technologie Arc Force auto-adaptative : améliore sensiblement les performances de l’appareil pour les soudures avec un long câble et permet la soudure longue distance.
Page 16: Données Techniques
M1.3.TIG180.NLFREN 07062018 4 Données techniques Données techniques TIG 180 Tension d’entrée 230 V + 15% - 50/60 Hz Courant d’entrée 10 ~ 160 20,4 ~ 26,4 Courant de soudage 10 ~ 180 10,4 ~ 17,2 Cycle de travail à 40 °C Tension à...
Page 17: Panneaux De Contrôle
9. OPERATION CONTROL AND DESCRIPTION 1. Overheating LED: To indicate overheating. Overheating LED on indicates that the temperature inside the machine M1.3.TIG180.NLFREN 07062018 is too high and the machine is under overheating W2060A SC-A0 protection status. 2. Power LED: To indicate the power. Power LED on 9.
Page 18 1) Connect the power input terminal(AC INPUT)on the back panel of the machine to provisions of the Voltage and with a power cord of appropriate specification throng a fuse with a capacity of 40A or more M1.3.TIG180.NLFREN 07062018 TIG180(W206)/TIG200(W207) connect to AC230V±15﹪ TIG180(W208)/TIG200(W209) connect to AC115V±15﹪...
Page 19 3) Insert the quick plug on the earth cable into the ‘‘+’’ quick socket on the machine panel, and tighten it clockwise. Clamp the workpiece with the work clamp at the other end of the earth cable. 4) Tightly connect the gas hose to the gas inlet on the back panel of the machine. The gas path should M1.3.TIG180.NLFREN 07062018 include the cylinder, gas regulator and gas hose.
Page 20 M1.3.TIG180.NLFREN 07062018 Tableau des paramètres de soudage (à titre de référence uniquement) Dia. électrode Courant de soudage Tension de soudage (mm) recommandé (A) recommandée (V) 20~60 20,8~22,4 44~84 21,76~23,36 60~100 22,4~24,0 80~120 23,2~24,8 108~148 23,32~24,92 140~180 24,6~27,2 180~220 27,2~28,8 220~260 28,8~30,4 Remarque : Ce tableau est valable pour le soudage d’acier doux.
Page 21 M1.3.TIG180.NLFREN 07062018 W2060A SC-A0 Parameters for TIG welding on titanium and its alloy (for reference only) Paramètres de soudage TIG sur le titane est ses alliages (à titre de référence uniquement) Plate Electrode Wire Welding Nozzle Diamètre Diamètre Courant de Groove Welding Type de...
Page 22: Précautions
M1.3.TIG180.NLFREN 07062018 7 Précautions 7.1 Conditions de travail 1. Les travaux de soudage doivent s’effectuer dans un environnement sec, avec un taux d’humidité inférieur à 90%. 2. Travaillez sous une température entre -10°C et 40°C. 3. Évitez de souder à l’extérieur, sauf si vous êtes à l’abri du soleil et de la pluie. 4.
Page 23: A3. Storage
M1.3.TIG180.NLFREN 07062018 8 Entretien AVERTISSEMENT: Les opérations de maintenance et de réparation doivent être effectuées par du personnel qualifié. Assurez-vous que la machine est débranchée avant tout travail d’entretien ou de réparation. 1. Contrôlez régulièrement les connexions internes (en particulier les prises). Resserrez les branchements desserrés. S’il y a de l’oxydation, enlevez-la avec du papier de verre, et ensuite rebranchez.
Page 24: Appendix B: Revision History
M1.3.TIG180.NLFREN 07062018 Contents 1 Safety .................24 2 Function overview ............26 3 Performance characteristics ..........26 Z210 SC-A0 4 Technical data .............27 5 Operation control and description ........28 A3. Storage ------------------------------------------------------------------------------------------------------------- 23 6 Installation, debugging and operation ......28 7 Caution ...............33 APPENDIX B: REVISION HISTORY --------------------------------------------------------------------------------- 24 8 Maintenance ...............34 9 Troubleshooting ............34 APPENDIX C: WIRING DIAGRAM OF COMPLETE MACHINE ---------------------------------------------- 25...
Page 25: Appendix C: Wiring Diagram Of Complete Machine
M1.3.TIG180.NLFREN 07062018 Z210 SC-A0 Z210 SC-A0 Arc radiation—may damage eyes or burn skin. Arc radiation-may hurt your eyes and burn your skin! Arc radiation-may hurt your eyes and burn your skin! Use proper welding mask and wear protective clothing to protect ...
Page 26: Function Overview
M1.3.TIG180.NLFREN 07062018 2 Function overview • Hot start arc ignition function: make the arc ignition in TIG welding under low current easier and more reliable. • 2T/4T function: ensure long-time welding. • Downslope and post-flow function: ensure nice welding process. •...
Page 27: Technical Data
M1.3.TIG180.NLFREN 07062018 4 Technical data Technical parameter TIG 180 Rated input voltage 230 V + 15% - 50/60 Hz Rated input power 10 ~ 160 20.4 ~ 26.4 Welding current range 10 ~ 180 10.4 ~ 17.2 Rated duty cycle at 40 °C...
Page 28: Operation Control And Description
9. OPERATION CONTROL AND DESCRIPTION 1. Overheating LED: To indicate overheating. Overheating M1.3.TIG180.NLFREN 07062018 LED on indicates that the temperature inside the machine is too high and the machine is under overheating W2060A SC-A0 protection status. 2. Power LED: To indicate the power. Power LED on 9.
Page 29 1) Connect the power input terminal(AC INPUT)on the back panel of the machine to provisions of the Voltage and with a power cord of appropriate specification throng a fuse with a capacity of 40A or more M1.3.TIG180.NLFREN 07062018 TIG180(W206)/TIG200(W207) connect to AC230V±15﹪ TIG180(W208)/TIG200(W209) connect to AC115V±15﹪...
Page 30 tighten it clockwise. 3) Insert the quick plug on the earth cable into the ‘‘+’’ quick socket on the machine panel, and tighten it clockwise. Clamp the workpiece with the work clamp at the other end of the earth cable. M1.3.TIG180.NLFREN 07062018 4) Tightly connect the gas hose to the gas inlet on the back panel of the machine.
Page 31 M1.3.TIG180.NLFREN 07062018 Welding parameters table (for reference only) Electrode dia. Recommended welding current Recommended welding voltage (mm) 20~60 20.8~22.4 44~84 21.76~23.36 60~100 22.4~24.0 80~120 23.2~24.8 108~148 23.32~24.92 140~180 24.6~27.2 180~220 27.2~28.8 220~260 28.8~30.4 Note: This table is suitable for mild steel welding. For other materials, consult related materials and welding process for reference.
Page 32 M1.3.TIG180.NLFREN 07062018 W2060A SC-A0 Parameters for TIG welding on titanium and its alloy (for reference only) Parameters for TIG welding on titanium and its alloy (for reference only) Plate Electrode Wire Welding Nozzle Groove Welding thickness diameter diameter current Gas flow (L/min) diameter type layers...
Page 33: Caution
M1.3.TIG180.NLFREN 07062018 7 Caution 7.1 Working Environment 1. Welding should be carried out in dry environment with humidity not greater than 90%. 2. The temperature of the working environment should be between -10° and 40°. 3. Avoid welding in the open air unless sheltered from sunlight and rain. Keep it dry at all times and do not place it on wet ground or in puddles.
Page 34: Maintenance
M1.3.TIG180.NLFREN 07062018 8 Maintenance WARNING: The following operation requires sufficient professional knowledge on electric aspect and comprehensive safety knowledge. Operators should be holders of valid qualification certificates which can prove their skills and knowledge. Make sure the input cable of the machine is disconnected from the electricity utility before uncovering the welding machine.
Page 35: Onderdelen
10028332 TIG200 Electrolytic capacitor 10041327 Isolation transformer 10037137 TGI180 Dual voltage electrolytic capacitor 10021853 Quick socket 10006650 TIG180/ TIG 180 Dual voltage silicon bridge TIG200 Silicon bridge board 10043469 Front Panle 10037485 10042014 Small Knob TIG180/TIG180 Dual Voltage IGBT 10007251...
Page 36: Schakelschema
M1.3.TIG180.NLFREN 07062018 W2060A SC-A0 8. ELECTRICAL SCHEMATIC DIAGRAM 11 Schakelschema 11 Schéma électrique 11 Electrical diagram Fig.8-1 TIG180(W206)/TIG200(W207) Fig.8-2 TIG180(W208)/TIG200(W209) 11 / 34...
Page 37: Eg Conformiteitsverklaring
Déclare par ceci que le produit suivant : Hereby declares that the following product : Product Lastoestel Produit Poste à souder Product Welding machine TIG 180 (829300194) Order nr. : Test report reference: WTD13S0806397E - WTD13D0806396S 2014/30/EU Geldende CE-richtlijnen Normes CE en vigueur EN60974-10:2007...
