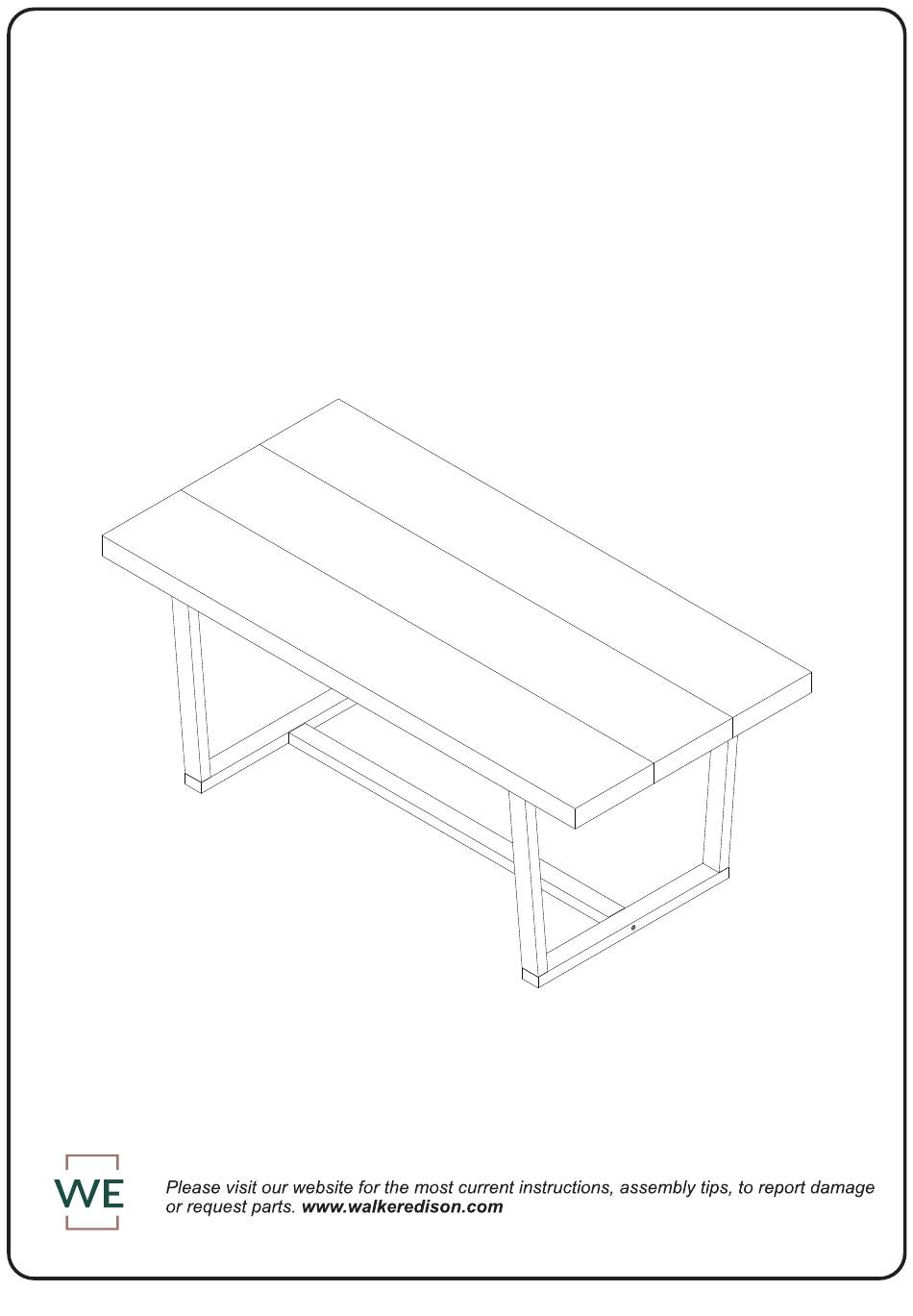

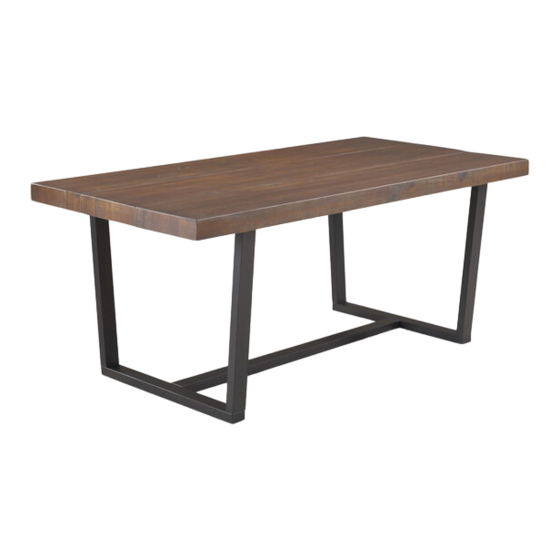

- Page 1 Item: TW72DSW Assembly Instructions Revised 07/2023-V2 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved. Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
-
Page 2: General Assembly Guidelines
General assembly guidelines A hammer, a Phillips head screwdriver and a tape measure are required of this product. Tape measure... -
Page 3: Parts List
Parts List Foot Post 04 pcs Lower Batten 02 pcs Upper Batten 02 pcs Lower Center Batten 01 pc Upper Support Rail 02 pcs Upper Center Batten 01 pc Side Top Panel 02 pcs Center Top Panel 01 pc... -
Page 4: Hardware List
Hardware List 10 pcs ø1/4'*110mm Bolt ø7*70mm Bolt 08 pcs ø1/4'*50mm Bolt 08 pcs ø7*50mm Bolt 02 pcs ø4*50mm Screw 23 pcs ø8*30mm Wooden dowel 26 pcs ø1/4" Barrel nut 10 pcs Plastic foot 04 pcs Hex key 01 pc Philips head screwdriver required Tape measure Hammer recommended... - Page 5 Step 1 Insert wood dowel (F) into parts 3, 4, 6 and 8. ø8*30mm Step 2 Hex key Attach part (2) to part (1) using bolt (B) and a hex key (I). Complete this step twice. ø7*70mm...
- Page 6 Step 3 Barrel nut Hex key Attach part (3) to parts (1) using bolt (A) with barrel nut (G) and hex key (I). Complete this step twice. ø1/4*110mm Step 4 Barrel nut Hex key Attach part (4) to parts (2) using bolt (A) with barrel nut (G) and hex key (I).
- Page 7 Step 5 Hex key Attach part (6) to part (5) using bolt (D) and hex key (I). ø7*50mm Step 6 Barrel nut Plastic foot Attach part (1) to part (5) Hex key using bolt (A) with barrel nut (G) and hex key (I). Complete this step four times.
- Page 8 Step 7 Hex key Attach parts (7) to part (8). Secure the pieces using bolt (C) and hex key (I). ø1/4*50mm...
- Page 9 Step 8 Place leg frame onto table top. Step 9 Secure leg frame onto table top using screw (E) and a screwdriver. ø4*50mm...
- Page 10 Step 10 Distributed weight. P.10...
