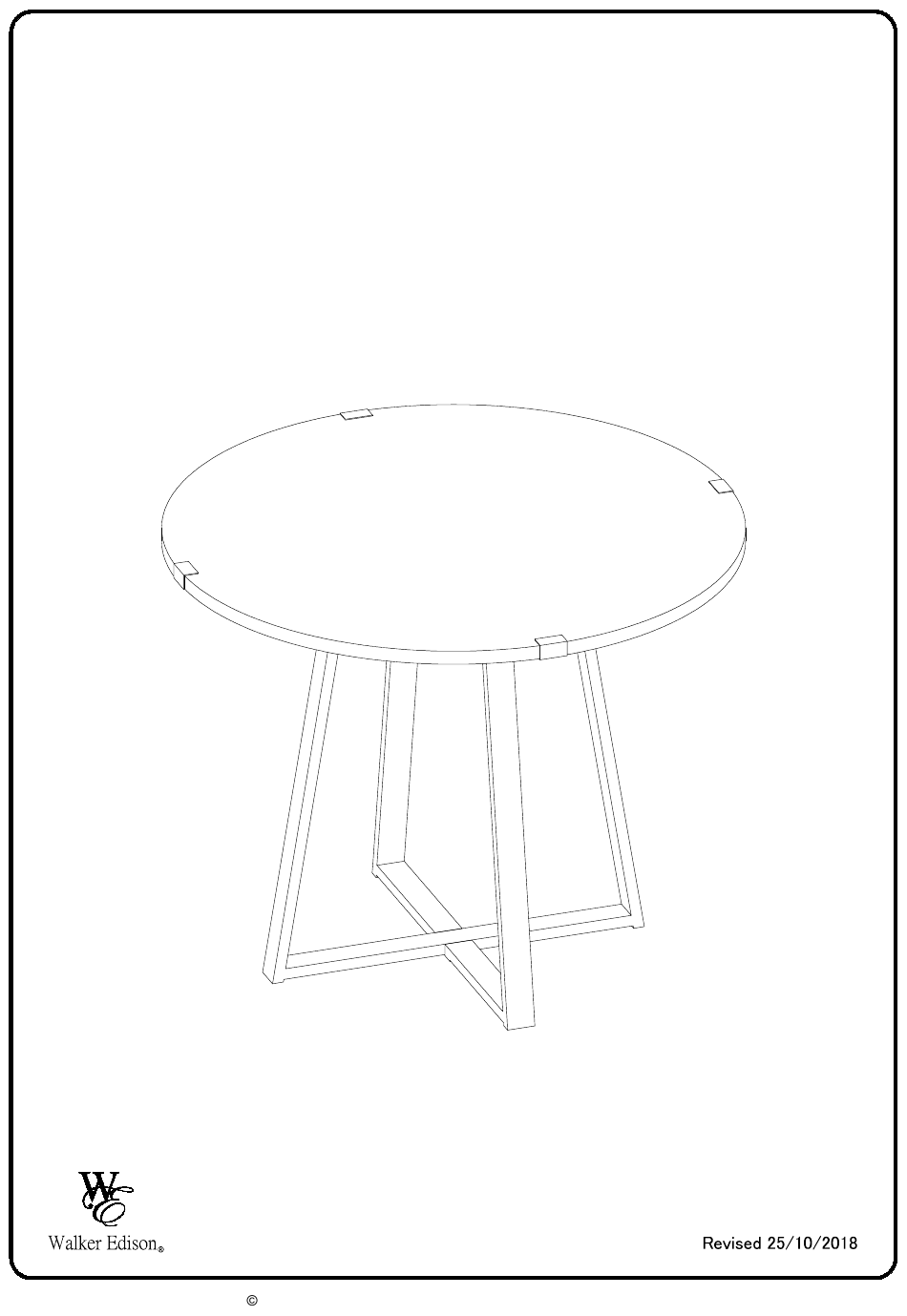

- Page 1 Item # : TW40RDWRA Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 2: General Assembly Guidelines
Two people are recommended for ease in the assembly of this product. The main type of hardware used to assemble this product is:bolts. Power tools should not be used to assemble this product. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 3: Parts List
Parts List Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 4: Hardware List
Hardware List Bolt Bolt Hex Key The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Step 1 Attach part (3) to part (2) using bolt (B) with hex key (C). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Step 2 Attach part (2, 3) to part (1) using bolt (A) with hex key (C). Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 7: Final Assembly
Step 3 Final Assembly Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved.
