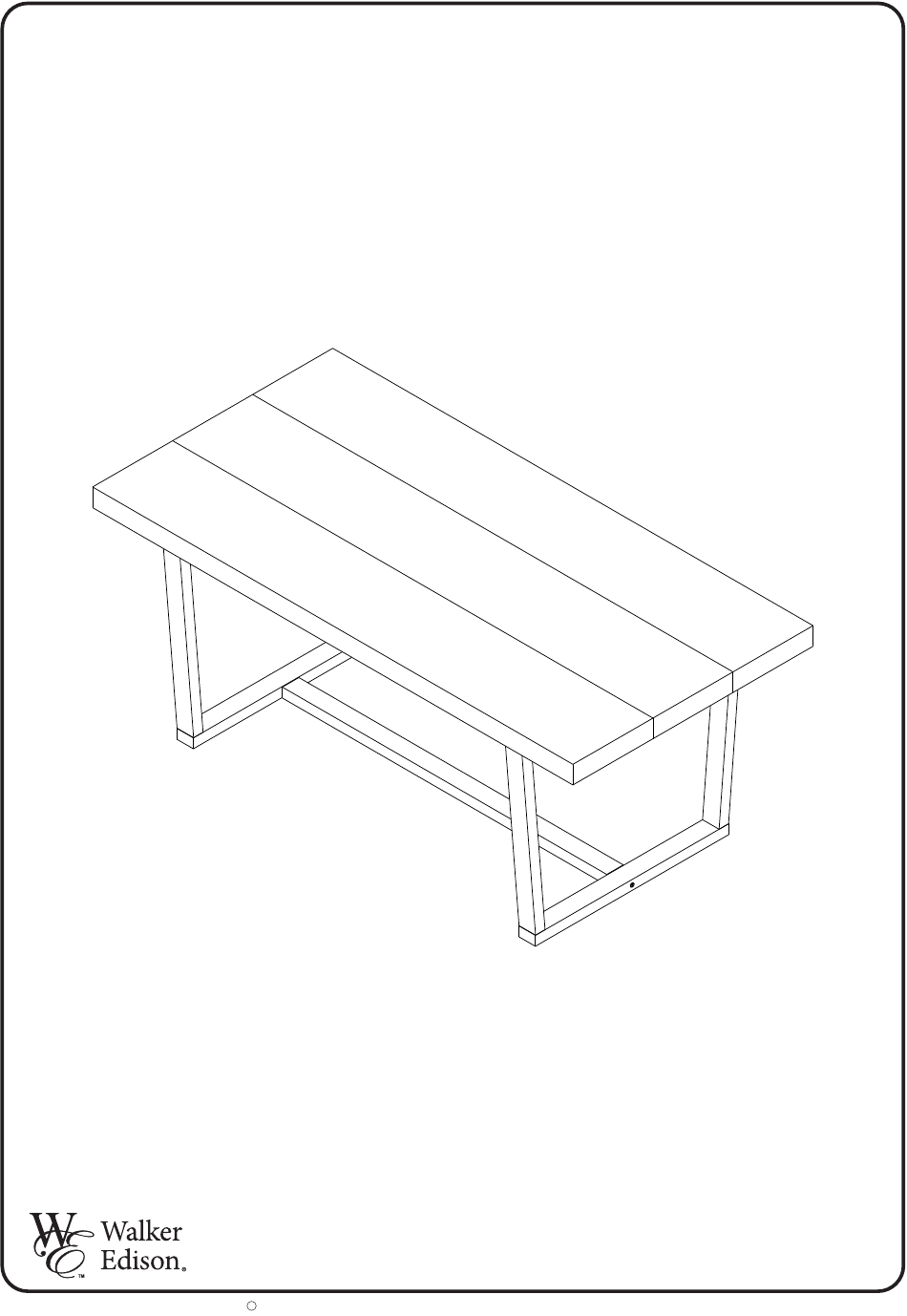

Item #: TW72DSW
Assembly Instructions
Please visit our website for the most current instructions, assembly tips report damage,
or request parts. www.walkeredison.com
Revised 08/2018
Copyright
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P.1
c
Advertisement
Related Manuals for Walker Edison TW72DSW
Summary of Contents for Walker Edison TW72DSW
- Page 1 Item #: TW72DSW Assembly Instructions Please visit our website for the most current instructions, assembly tips report damage, or request parts. www.walkeredison.com Revised 08/2018 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 4: Hardware List
Hardware List 1/4"x110 mm Bolt 10 pcs 7.0x70 mm Bolt 08 pcs 1/4"x50 mm Bolt 08 pcs 7.0x50 mm Bolt 02 pcs 4.0x50 mm Screw 23 pcs Wood dowel 8x30 mm 26 pcs 1/4" Barrel nut 10 pcs 04 pcs Plastic foot Hex key 01 pcs... - Page 5 Step 1 Insert wood dowel ( F ) into parts ( 3 ), ( 4 ), ( 6 ) and ( 8 ). (2x) Step 2 Attach part ( 2 ) to part ( 1 ) using bolt ( B ) and a hex key ( I ).
- Page 6 Attach part ( 3 ) to part ( 1 ) using Step 3 bolt ( A ) with barrel nut ( G ) and hex key ( I ). Complete this step twice. (2x) Step 4 Attach part ( 4 ) to part ( 2 ) using bolt ( A ) with barrel nut ( G ) and hex key ( I ).
- Page 7 Attach part ( 6 ) to part ( 5 ) Step 5 using bolt ( D ) and hex key ( I ). Step 6 (4x) (4x) Attach part ( 1 ) to part ( 5 ) using bolt ( A ) with barrel nut ( G ) and hex key ( I ).
- Page 8 Step 7 Attach part ( 8 ) to part ( 7 ). Secure the pieces using bolt ( C ) and hex key ( I ). (8x)
- Page 9 Step 8 Place leg frame onto table top. Step 9 Secure leg frame onto table top using screw ( E ) and a screwdriver. (23x)
- Page 10 Step 10 Final Assembly. P.10...
