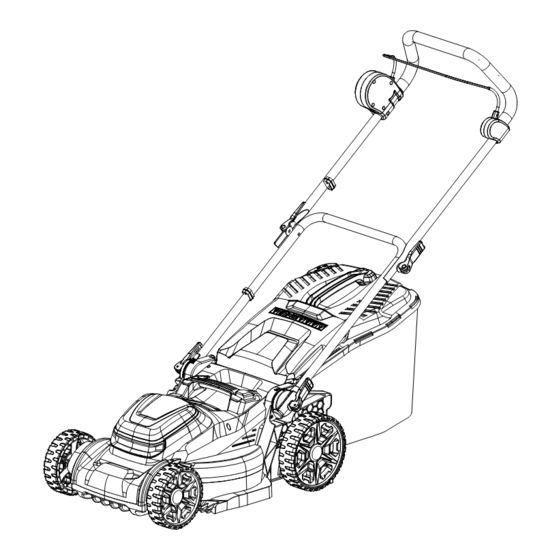

40v cordless lawnmower

Advertisement

Quick Links

GB
40V CORDLESS LAWNMOWER
Original Instructions
READ & UNDERSTAND INSTRUCTION MANUAL
Save all warnings and instructions for future reference.
LM C37B / LM C40B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM C37B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yard force LM C37B

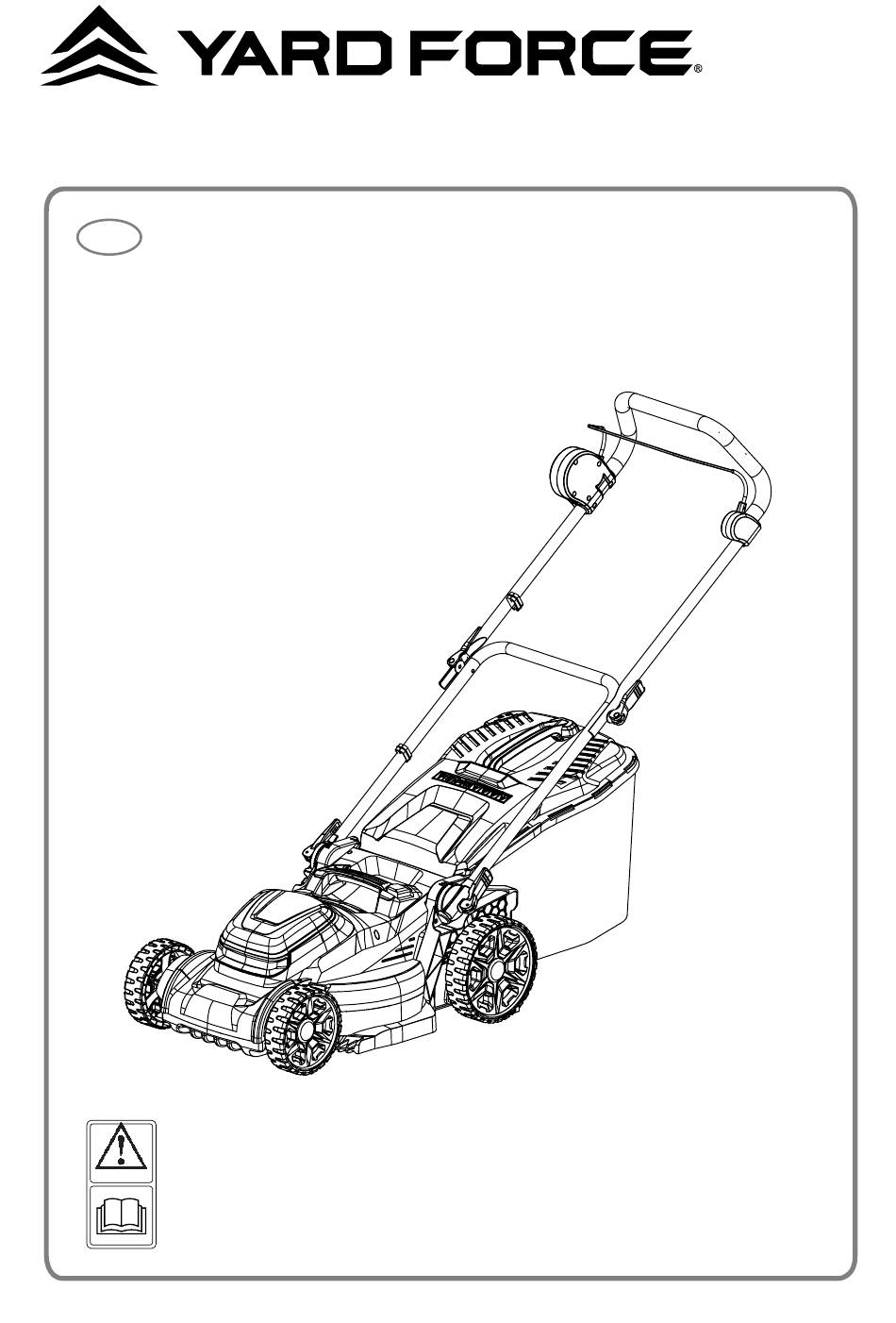

  • Page 1 LM C37B / LM C40B 40V CORDLESS LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
  • Page 2 V1.0...
  • Page 5 Step 1 Step 2...
  • Page 7: Table Of Contents

    LM C37B / LM C40B Original Instruction CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting Declaration of conformity Disposal...
  • Page 8: Intended Use

    INTENDED USE This lawnmower has been designed for cutting grass. The machine is to be used only for its prescribed purpose, any other use is deemed to be a case of misuse. Please note that our equipment has not been designed for use in commercial, trade or industrial applications.
  • Page 9 GENERAL SAFETY WARNINGS 4. Keep in mind that the operator or user is responsible for any accidents or hazards occurring to other people or their property. Preparation 1. While operating the product always wear substantial footwear and long trousers. Do not operate this product when barefoot or wearing open sandals.
  • Page 10: Product Safety Warnings

    PRODUCT SAFETY WARNINGS 5. Always be sure of your footing on slopes. 6. Walk, never run. 7. Mow across the face of slopes, never up and down. 8. Exercise extreme caution when changing direction on slopes. 9. Do not mow excessively steep slopes. 10.
  • Page 11 PRODUCT SAFETY WARNINGS have come to a complete stop: • Whenever you leave the product unattended. • Before clearing blockages or unclogging chute. • Before checking, cleaning, or working on the product. • After striking a foreign object. Make sure to inspect the product for damage and make repairs before restarting and operating the product.
  • Page 12 PRODUCT SAFETY WARNINGS cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. 6. Make sure the charger cord is situated so that it will not be stepped on, tripped over or get damaged. 7.
  • Page 13 PRODUCT SAFETY WARNINGS 3. To prevent serious damage to the battery, charge in temperatures above 5ºC or below 45ºC. Longest life and best performance can be achieved when battery is charged at room temperature. 4. If the battery temperature is above 45ºC it must be allowed to cool before putting it into the charging station.
  • Page 14 PRODUCT SAFETY WARNINGS trapping fingers between moving blades or other fixed parts of the product. 4. Always allow the product to cool down before storing. 5. When servicing the blades be aware that even though the power source is switched off, the blades can still move.
  • Page 15: Symbols

    SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures.
  • Page 16 SYMBOLS To reduce the risk of injury, user must read instruction manual carefully. Avoid using tool in the rain. Wait until all machine components have completely stopped before touching them. Keep bystanders away. Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation.
  • Page 17 SYMBOLS WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling guidelines The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
  • Page 18 SYMBOLS Warning symbols on the battery pack To reduce the risk of injury, user must read instruction manual carefully. Do not throw into water. Do not throw on fire. Do not subject the battery to strong sunlight over long periods of time. Do not leave on a heater (max.45°C).
  • Page 19 SYMBOLS Warning symbols on the charger To reduce the risk of injury, user must read instruction manual carefully. The charger is for indoor use only. Double insulation T 5A Protective 5 A limited WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
  • Page 20: Technical Data

    TECHNICAL DATA Mower Type LM C37B LM C40B Nominal voltage of 20 V x2 d.c. product with battery 4.0 Ah Li-ion No-load cutting speed 3000 min Cutting width 37 cm 40 cm Cutting height 25-75mm, 7 positions Capacity of grass bag...
  • Page 21: Description Of Product

    DESCRIPTION OF PRODUCT Parts description (Fig. A) Switch box Lower handle Carrying handle Battery pack tank cover Front wheel Push button - cutting height adjustment Rear wheel Grass bag Quick release clamp 10. Switch lever 11. Top handle Check the delivery parts (Fig. B) Remove the machine from its packaging carefully and make sure that all of the following parts are present: Lawnmower with upper handle...
  • Page 22: Installation

    INSTALLATION Assemble the lower handle (Fig. C) Attach the two tooth clamps to the lower handle. Attach the lower handle to the lawnmower (Fig. D) Install the lower handle to the lawnmower with the quick release clamps (with fixed in screw). Make sure that the teeth of fixing gears interlock correctly.
  • Page 23: Operation

    OPERATION Charging the battery pack (Fig. J) NOTE: Remove the battery pack from the charger after it has been fully charged. NOTE: Battery should be fully charged before first use. NOTE: Make sure the mains voltage is the same as rating label which is located on the charger.
  • Page 24 OPERATION Switching on and off (Fig. O) Switch on: 1. Press and hold the safety button on the side of the switch box with one hand. 2. Pull the switch bar towards the handle and hold it with the other hand. Switch off: Release the switch bar.
  • Page 25 OPERATION Emptying the grass bag As soon as the grass bag indicator closes while you are mowing this means that it is time to empty the grass bag. NOTE: Before taking off the grass bag, switch off the machine and wait until the blade has come to a complete stop.
  • Page 26: Maintenance And Storage

    WARNING: Replace or re-sharpen the mowing blade at the end of the mowing season. Always have the mowing blade re-sharpened or replaced by a recommended Yard Force service centre. Unbalanced blades will cause the lawn mower to vibrate violently which can increase the risk of accidents occurring.
  • Page 27 MAINTENANCE AND STORAGE Storage and transport Storage After cleaning the unit thoroughly, store mower flat on the ground or vertically in a dry room and allow the motor to cool down. To reduce storage space the lawnmower can be folded. (Fig. S & Fig. T) 1.
  • Page 28: Troubleshooting

    TROUBLESHOOTING WARNING: Before performing any repair work, always ensure that the battery pack has been removed. WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially when handling sharp objects. Fault/malfunction Cause Remedy Battery is not correctly inserted. Remove the battery and reinsert. Start motor on shorter grass or Mower standing in high grass.
  • Page 29: Declaration Of Conformity

    Otto-Brenner-Str. 8 47877 Willich Germany Declare that the product: Machine Description: 20Vx2 CORDLESS LAWNMOWER LM C37B/ Y0J-SP03-3740-ZE/Y0J-SP03-3740-ZF LM C40B/ Y0J-SP04-4040-ZB/Y0J-SP04-4040-ZC Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/EU...
  • Page 30 Unit A&B Escrick Business Park Escrick, York YO19 6 FD/ United Kingdom Declare that the product: Machine Description: 40V CORDLESS LAWNMOWER LM C37B/ Y0J-SP03-3740-ZE/Y0J-SP03-3740-ZF LM C40B/ Y0J-SP04-4040-ZB/Y0J-SP04-4040-ZC Function: Cutting grass Complies with the essential health and safety requirements of the following directives:...
  • Page 31: Disposal

    DISPOSAL Disposing of packaging Dispose of packaging according to type. Sort the paperboard and cardboard as waste paper and the film as recyclable material. Disposing of the washer Applicable in the European Union and other European countries with systems for separate collections of recyclable waste. This symbol indicates that this product may not be disposed of together with domestic waste in compliance with the (2012/19/EU) Regulation pertaining to waste electrical and...
