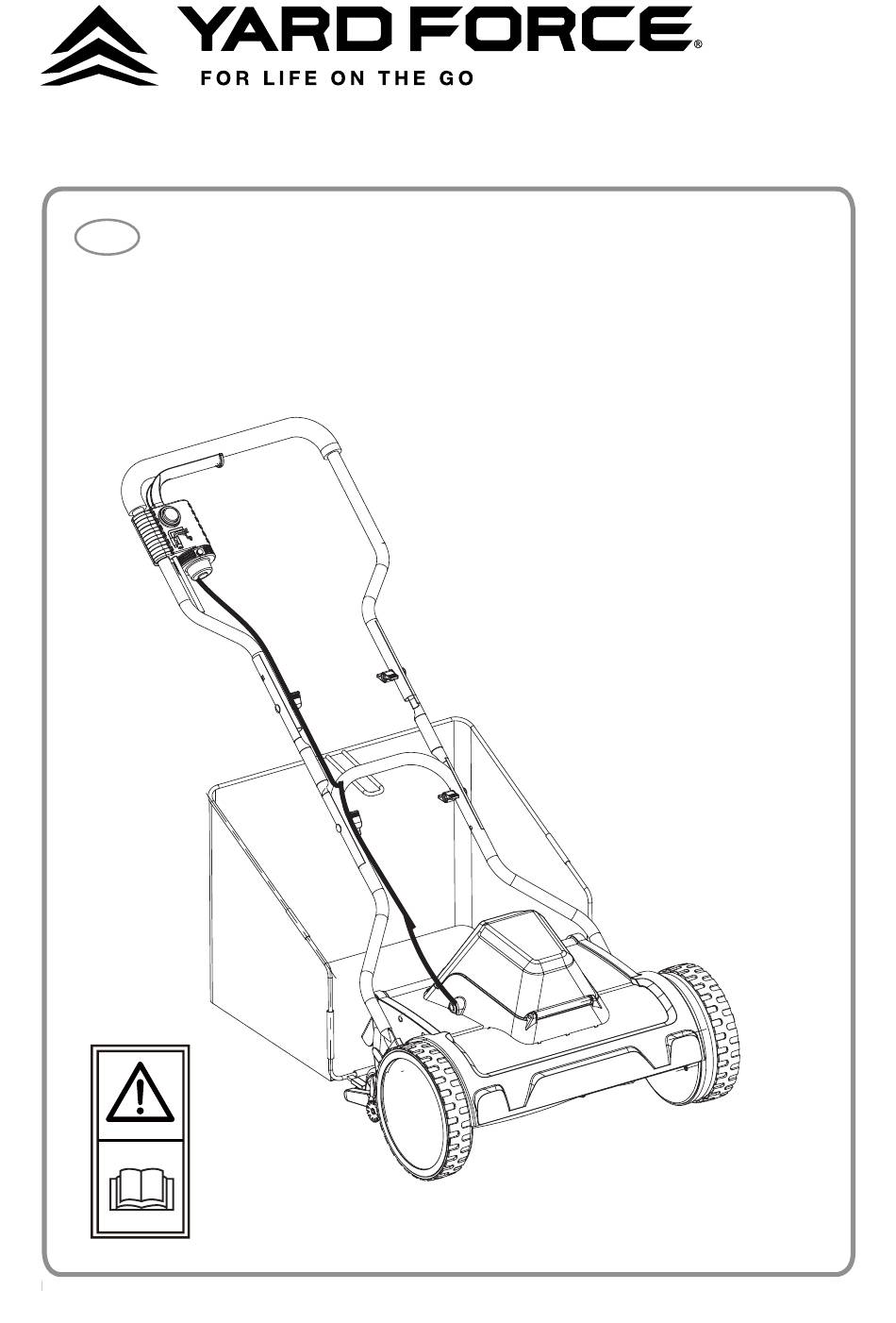

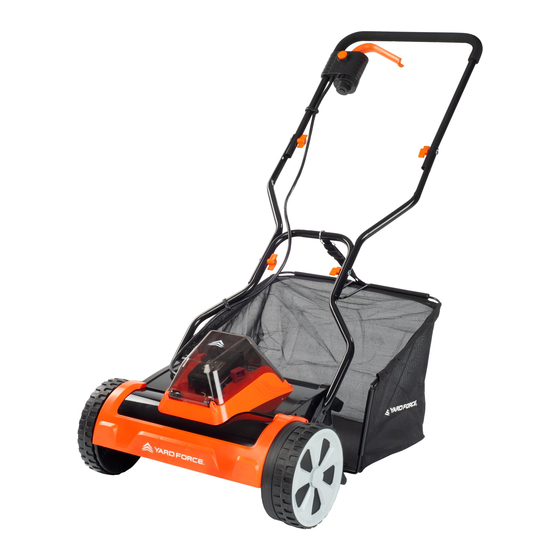

- Page 1 LM C38 20V CORDLESS ROLLER LAWN MOWER Original Instructions...
- Page 2 Read this manual carefully prior to assembling and operating the lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
-
Page 6: Table Of Contents
LM C38 Original Instructions CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Operation Maintenance and storage Troubleshooting CE declaration... -
Page 7: Intended Use
INTENDED USE The powered cylinder mower is only intended for use outdoors. The product is designed for domestic lawn mowing. Both wheels should touch the ground while mowing. It is a pedestrian-controlled walk-behind mower designed to be pushed by hand. The product should never be operated with the wheels off the ground. - Page 8 GENERAL SAFETY WARNINGS or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 3. Keep bystanders, children and pets 15 m away from the area of operation.
- Page 9 GENERAL SAFETY WARNINGS 5. Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the product. 6. Never attempt to make any adjustments while the product is running.
- Page 10 GENERAL SAFETY WARNINGS additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
-
Page 11: Product Safety Warnings
PRODUCT SAFETY WARNINGS CYLINDER MOWER SAFETY WARNINGS 1. Always use the product in the daylight or with good artificial light. 2. Do not operate the product on wet grass or in the rain. 3. Always be sure of your footing, and keep a firm hold on the handles. - Page 12 PRODUCT SAFETY WARNINGS 13. Do not transport the product while the power source is running. 14. To reduce the risk of injury associated with contacting rotating parts, always turn off the product and remove the battery pack. Make sure all moving parts have come to a complete stop: •...
- Page 13 PRODUCT SAFETY WARNINGS ADDITIONAL BATTERY SAFETY WARNINGS WARNING To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
- Page 14 PRODUCT SAFETY WARNINGS WARNING Servicing requires extreme care and knowledge and should be performed only by and repairs, have the product serviced by an authorised service centre only. When servicing, use only original replacement parts. 1. You may make adjustments and repairs described in this manual.
- Page 15 PRODUCT SAFETY WARNINGS the operator should pay special attention to avoid the following: 1. Injury caused by vibration. Always use the right tool for the job. Use designated handles and restrict working time and exposure. 2. Injury caused by noise. Exposure to noise can cause hearing injury.
-
Page 16: Symbols
SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them require your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures. - Page 17 SYMBOLS This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead to an accident for yourself or for others. To limit the risk of injury, fire, or electrocution always apply the recommendations indicated.
- Page 18 SYMBOLS Ensure that other people and pets remain at least 15m away from the line trimmer when it is in use. Guaranteed sound power level value in 96 dB. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
- Page 19 SYMBOLS Warning symbols on the battery pack To reduce the risk of injury, user must read the instruction manual carefully. Do not throw into water. Do not throw to fire. Do not subject the battery to strong sunlight over long periods of time. Do not leave on a heater (max.45°C).
- Page 20 SYMBOLS Warning symbols on the charger To reduce the risk of injury, user must read the instruction manual carefully. The charger is for indoor use only. Double insulation WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 21: Technical Data
TECHNICAL DATA Model LM C38 Mains voltage 20 V No load speed 1000 min Cutting width 38 cm Sound power level: L 88.29 dB(A) K=1.73 dB(A) Guaranteed sound power level L 96 dB (according to 2000/14/EC) Vibration front handle 2.6 m/s K=1.5 m/s... -
Page 22: Description Of Product
DESCRIPTION OF PRODUCT Parts description (Fig. A) 1. Soft grip 2. Upper handle frame 3. Middle handle bars 4. Lower handle frame 5. Ejector flap 6. Grass collection bag 7. Wheel 8. Battery compartment cover 9. Safety key 10. Cable clip 11. - Page 23 ASSEMBLY WARNING: Do not insert the battery and the safety key until assembly is complete. Failure to comply could result in accidental starting and serious personal injury. WARNING: Before performing any maintenance, make sure the battery and the safety key are removed from the unit.
-
Page 24: Operation
OPERATION Charging the battery pack (Fig. K) NOTE: Remove the battery pack from the charger after it has been fully charged. NOTE: Battery should be fully charged before first use. NOTE: Make sure the mains voltage is the same as rating label which is located on the charger. - Page 25 OPERATION Starting + Stopping WARNING! Before switching on the reel mower, make sure that it is not in contact with any foreign objects. Keep your hands and feet a safe distance away from the rotating mower blades and the ejector opening. Failure to comply with these warnings can result in severe personal injury.
- Page 26 OPERATION • Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow across an incline (not up and down). • Use special caution when backing up and pulling the reel mower towards you as such maneuvering of the machine poses a tripping hazard. •...
-
Page 27: Maintenance And Storage
Check all nuts, bolts, and screws for proper tightness before each use. • Frequently inspect the grass collection bag for signs of wear and replace immediately with a genuine Yard force part if damage is found. • Replace excessively worn or damaged parts immediately. - Page 28 MAINTENANCE AND STORAGE Cleaning and Storage Clean the exterior of the machine thoroughly using a soft brush and cloth before storing. Do not use water, solvents, or polishes. Turn the mower on its side to clean the blade area. WARNING! Do not place your hands inside or near the cutting area. If grass cuttings are compacted in the blade area, remove them using a wood or plastic cleaning tool appropriate for blade cleaning.
-
Page 29: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Remedy The safety key is not inserted Insert the safety key The battery is low Charge the battery Attach the battery pack to the The battery is not inserted securely mower; press it until you hear a click Mower fails to The motor/blade control is... -
Page 30: Ce Declaration
MEROTEC GmbH, Otto-Brenner-Straße 8, 47877 Willich/ Deutschland Declare that the product: Description: 20V Cordless roller lawn mower Model No. LM C38 Function: cutting Grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/EU EC Directive 2011/65/EU and its amendment Directive (EU) 2015/863 (RoHS) Outdoor Noise Directive 2000/14/EC &...
