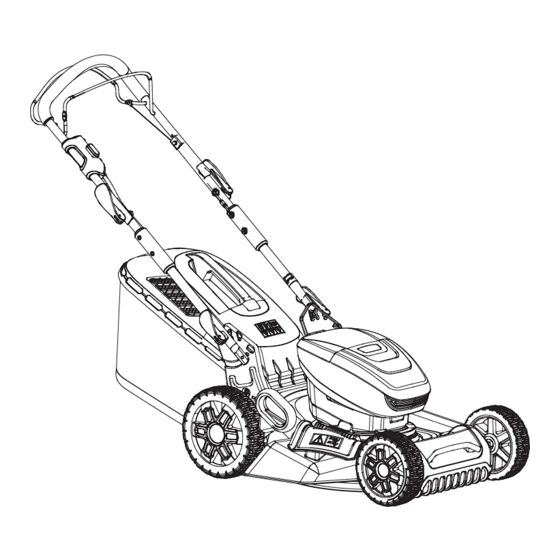

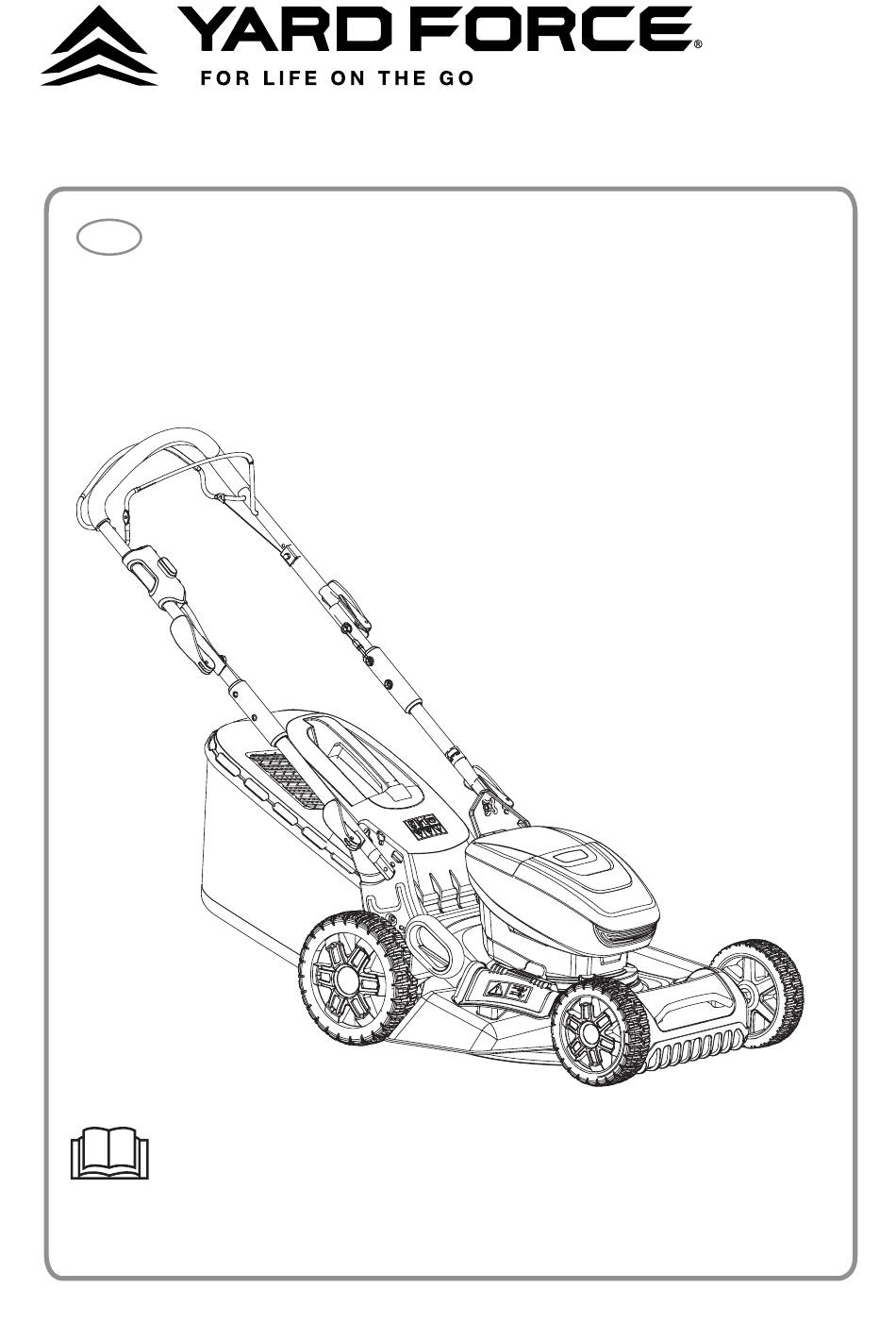

- Page 1 LM G46E Y0JZ-SP02-4640 40V CORDLESS LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 2 Read this manual carefully prior to assembling and operating the lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
- Page 3 25mm 75mm...
-
Page 4: Table Of Contents
LM G46E Original Instruction CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting Declaration of conformity... -
Page 5: Intended Use
INTENDED USE GENERAL SAFETY WARNINGS Training This lawnmower has been designed for cutting grass. The machine is to be used only for its prescribed purpose, any other use is deemed to be a case of misuse. 1. Read the instructions carefully and make sure you fully Please note that our equipment has not been designed for use in commercial, trade or understand them. -
Page 6: Product Safety Warnings
PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS General Operation this case, do not tilt it more than absolutely necessary 1. Use the tool only with specifically designated battery and lift only the part furthest away from the operator. packs. Use of any other battery packs will increase 15. - Page 7 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS 2. Check the battery charger, cable and plug before the protection circuitry of the battery pack. Longest each use. Do not use the battery charger if damaged. life and best performance can be obtained if the Do not open the battery charger yourself;...
- Page 8 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS 8. If the battery pack becomes too hot during charging, 9. Every deep discharge cycle decreases the capacity disconnect and switch off immediately. Contact the of battery pack. To prolong battery life, it is service centre directly.
-
Page 9: Symbols
SYMBOLS SYMBOLS Safety symbols To reduce the risk of injury, user must read The purpose of safety symbols is to attract your instruction manual carefully. attention to any possible dangers. The safety symbols and their explanations deserve your careful attention Avoid using tool in the rain. - Page 10 SYMBOLS SYMBOLS WEEE symbol. Waste electrical products should WEEE symbol. Waste electrical products should not be disposed of with household waste. Please not be disposed of with household waste. Please recycle where facilities exist. Check with your recycle where facilities exist. Check with your local authority or local store for recycling guidelines Local Authority or local store for recycling advice.
-
Page 11: Technical Data
TECHNICAL DATA DESCRIPTION OF PRODUCT Parts description (Fig. A) Mower Type LM G46E Self-propelled switch lever Safety button Nominal voltage of product with battery 40 V Grass bag Cutting height adjustment lever No-load cutting speed 3300 min Side discharge chute... -
Page 12: Installation
INSTALLATION OPERATION Unfold the handle Charging the battery pack (Fig. M) Rotate the handle quick release levers to release the operation handle (Both sides). (Fig. C) NOTE: Remove the battery pack from the charger after it has been fully charged. Rotate the handle and then position the lower handle lock pin into the mower bracket - NOTE: Battery should be fully charged before first use. - Page 13 OPERATION OPERATION Setting cutting height (Fig. R) Mower overload protection If you wish to change the cutting height, push the adjusting lever first to make it out of the To prevent overload conditions, do not try to cut too much grass at one time. Slow down your tooth and then push the lever to the desired position.
-
Page 14: Maintenance And Storage
WARNING: Replace or re-sharpen the mowing blade at the end of the mowing season. Always have the mowing blade re-sharpened or replaced by a recommended Yard Force service centre. Unbalanced blades will cause the lawn mower to vibrate violently which can increase the risk of accidents occurring. -
Page 15: W Troubleshooting
Declare that the product: Machine Description: 40V CORDLESS LAWNMOWER Fault/malfunction Cause Remedy LM G46E/ Y0JZ-SP02-4640 Safety key is not inserted Insert safety key Function: Cutting grass Battery is not correctly inserted Remove the battery and reinsert... -
Page 16: Declaration Of Conformity
37540 Saint Cyr Sur Loire France Declare that the product: Machine Description: 40V CORDLESS LAWNMOWER LM G46E/ Y0JZ-SP02-4640 Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/EU...
