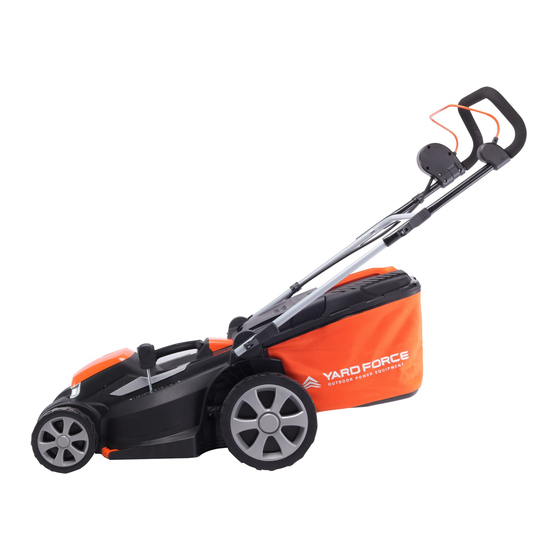

40V CORDLESS LAWNMOWER
Original Instructions
READ & UNDERSTAND
INSTRUCTION MANUAL
Save all warnings and instructions for future reference.
LM G37A
Y0J-SP01-37_ZE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM G37A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yard force LM G37A

  • Page 1 LM G37A Y0J-SP01-37_ZE 40V CORDLESS LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
  • Page 2 Read this manual carefully prior to assembling and operating the lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
  • Page 7: Table Of Contents

    LM G37A Original Instruction CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting Warranty CE declaration...
  • Page 8: Intended Use

    INTENDED USE This lawnmower has been designed for cutting grass. The machine is to be used only for its prescribed purpose, any other use is deemed to be a case of misuse. Please note that our equipment has not been designed for use in commercial, trade or industrial applications.
  • Page 9 GENERAL SAFETY WARNINGS Training 1. Read the instructions carefully and make sure you fully understand them. Make sure you are familiar with the controls and the correct use of the product. 2. Never allow small children or people unfamiliar with these instructions to use the product. Local regulations can restrict the age of the operator.
  • Page 10: Product Safety Warnings

    PRODUCT SAFETY WARNINGS General Operation 1. Use the tool only with specifically designated battery packs. Use of any other battery packs will increase the risk of injury and fire. 2. Only operate the product in daylight or in good artificial light. 3.
  • Page 11 PRODUCT SAFETY WARNINGS this case, do not tilt it more than absolutely necessary and lift only the part furthest away from the operator. 15. Do not start the product when standing in front of the discharge opening. 16. Do not put hands or feet near or under rotating parts. 17.
  • Page 12 PRODUCT SAFETY WARNINGS 2. Check the battery charger, cable and plug before each use. Do not use the battery charger if damaged. Do not open the battery charger yourself; charger must be repaired by qualified personnel using original spare parts. 3.
  • Page 13 PRODUCT SAFETY WARNINGS the protection circuitry of the battery pack. Longest life and best performance can be obtained if the battery pack is charged at room temperature. 11. Disconnect charger from the power supply when not in use. This will reduce the risk of electric shock or damage to the charger.
  • Page 14 PRODUCT SAFETY WARNINGS 8. If the battery pack becomes too hot during charging, disconnect and switch off immediately. Contact the service centre directly. 9. Do not attempt to open the battery yourself. 10. When battery pack is not in use keep it away from other metal objects such as paperclips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another.
  • Page 15 PRODUCT SAFETY WARNINGS 9. Every deep discharge cycle decreases the capacity of battery pack. To prolong battery life, it is recommended that you charge the battery every six months within extended periods of time when the product is not in use. Servicing 1.
  • Page 16: Symbols

    SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures.
  • Page 17 SYMBOLS To reduce the risk of injury, user must read instruction manual carefully. Avoid using tool in the rain. Wait until all machine components have completely stopped before touching them. Keep bystanders away. Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation.
  • Page 18 SYMBOLS WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling guidelines The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
  • Page 19 SYMBOLS WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Warning symbols on the charger To reduce the risk of injury, user must read instruction manual carefully.
  • Page 20: Technical Data

    TECHNICAL DATA Mower Type LM G37A Nominal voltage of product with 40V d.c. / 2.5 Ah Li-ion battery No-load cutting speed 2900 min Cutting width 37 cm 25-75mm, Cutting height 7 positions Capacity of grass bag 35 l Weight XX kg...
  • Page 21: Description Of Product

    DESCRIPTION OF PRODUCT Parts description (Fig. A) Switch box Lower handle Carrying handle Battery pack tank cover Front wheel Cutting height adjustment lever Rear wheel Grass bag Quick release clamp 10. Switch lever 11. Top handle Check the delivery parts (Fig. B) Remove the machine from its packaging carefully and make sure that all of the following parts are present: Lawnmower with upper handle...
  • Page 22: Installation

    INSTALLATION Assemble the lower handle (Fig. C) Attach the two tooth clamps to the lower handle. Attach the lower handle to the lawnmower (Fig. D) Install the lower handle to the lawnmower with two quick release clamps (with fixed in screw). Make sure that the teeth of fixing gears interlock correctly.
  • Page 23: Operation

    OPERATION Charging the battery pack NOTE: Remove the battery pack from the charger after it has been fully charged. NOTE: Battery should be fully charged before first use. NOTE: Make sure the mains voltage is the same as rating label which is located on the charger.
  • Page 24 OPERATION NOTE: Safety-Key (Fig. O) This lawnmower is fitted with a safety key; this prevents the accidental start up of your cordless lawnmower. The safety key has been designed to totally disable the lawnmower when it is removed. Switching on and off (Fig. P) Switch on: 1.
  • Page 25 OPERATION the mower is overloaded, the motor will stop. Switch the mower off and check to see if grass has collected beneath the deck and clear it if necessary, then restart the mower. Battery high temperature protection The battery pack will generate heat during operation. The heat dissipates slower in hot weather.
  • Page 26: Maintenance And Storage

    WARNING: Replace or re-sharpen the mowing blade at the end of the mowing season. Always have the mowing blade re-sharpened or replaced by a recommended Yard Force service centre. Unbalanced blades will cause the lawn mower to vibrate violently which can increase the risk of accidents occurring.
  • Page 27 MAINTENANCE AND STORAGE Storage and transport Storage After cleaning the unit thoroughly, store mower in a dry room and allow the motor to cool down. To reduce storage space the lawnmower can be folded. (Fig. S) 1. Loose the quick release lock system on handles. 2.
  • Page 28: Troubleshooting

    TROUBLESHOOTING WARNING: Before performing any repair work, always ensure that the battery pack has been removed. WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially when handling sharp objects. Fault/malfunction Cause Remedy Safety key is not inserted Insert safety key Battery is not correctly inserted Remove the battery and reinsert Start motor on shorter grass or Mower standing in high grass...
  • Page 29: Warranty

    WARRANTY Yard Force Warranty Statement. All Yard Force products are covered by a standard two-year warranty which can be extended to three years if the product is registered online within 28 days of purchase. If you do not register your product within 28 days of purchase, the two-year warranty will apply.
  • Page 30: Ce Declaration

    59 bis Rue du Mûrier 37540 Saint Cyr Sur Loire France Declare that the product: Machine Description: 40V CORDLESS LAWNMOWER LM G37A/Y0J-SP01-37_ZE Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/EU...
