Summary of Contents for Yard force LM T46

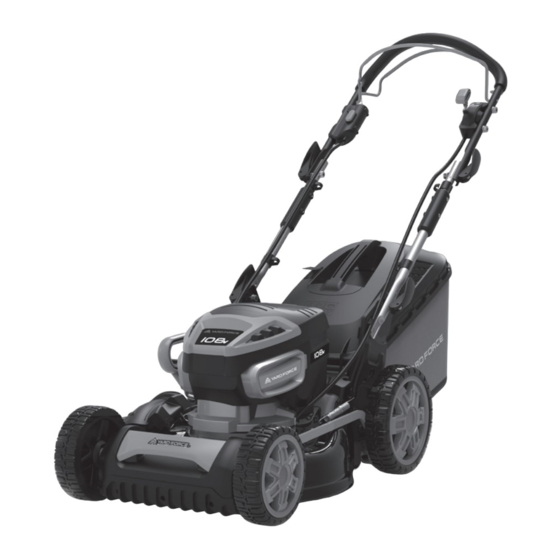

- Page 1 LM T46 Y0J-SP01-46 108V CORDLESS LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 2 Read this manual carefully prior to assembling and operating the lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
-
Page 4: Table Of Contents
LM T46 Original Instructions CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting CE declaration... -
Page 5: Intended Use
INTENDED USE GENERAL SAFETY WARNINGS Training This lawnmower has been designed for cutting grass. The machine is to be used only for its prescribed purpose, any other use is deemed to be a case of misuse. 1. Read the instructions carefully and make sure you fully Please note that our equipment has not been designed for use in commercial, trade or understand them. -
Page 6: Product Safety Warnings
PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS General Operation this case, do not tilt it more than absolutely necessary 1. Use the tool only with specifically designated battery and lift only the part furthest away from the operator. packs. Use of any other battery packs will increase 15. - Page 7 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS Charger 10. The temperature range over which the battery 1. Recharge only with the charger specified by the pack can be charged is typically between 5ºC- manufacturer. Do not use the original charger on 45 ºC.
- Page 8 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS 7. Should a li-ion battery catch fire, ensure to use the Return to any authorised service centre. correct fire extinguisher to combat the fire. DO NOT 8. Store the appliance with battery pack fully charged at THROW WATER ON A BURNING LI-ION BATTERY.
-
Page 9: U Symbols
SYMBOLS SYMBOLS Safety symbols To reduce the risk of injury, user must read The purpose of safety symbols is to attract your instruction manual carefully. attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. - Page 10 SYMBOLS SYMBOLS Warning symbols on the charger WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local To reduce the risk of injury, user must read authority or local store for recycling guidelines instruction manual carefully.
-
Page 11: Technical Data
TECHNICAL DATA DESCRIPTION OF PRODUCT Parts description (Fig. A) Mower Type LM T46 Upper handle Nominal voltage of product 108V d.c. /2.5Ah Li-ion Stop/Start lever with battery Battery Power ON/OFF button No-load cutting speed 3200 min Safety lock button Grass collection bag... -
Page 12: Installation
INSTALLATION INSTALLATION Unfold the handle Set required function Rotate the handle quick release levers to release the operation handle (Both sides). (Fig. C) WARNING! Before changing any accessory, switch off the tool and make sure that Rotate the handle and then position the lower handle lock pin into the mower bracket - the blade has stopped completely one of the three angle positions (Both sides). -
Page 13: Operation
When the battery pack over discharges or the power is very low, the red LED light will flash. (Fig. N-b) WARNING: Only use Yard force 108V original battery pack! When the battery pack temperature is exceeded, the red LED light will flash. Cool it WARNING: Do not try to uninstall the plug yourself, it may damage the lawnmower down for 10~20 minutes. - Page 14 OPERATION OPERATION NOTE: Safety-Key (Fig. R) Adjusting the self-propelled speed (Fig. V) This lawnmower features a self-propelled function. The self-propelled speed also can be The machine is fitted with a Safety Key; this prevents the accidental start up of your cordless changed by pushing the speed adjustment lever forwards and backwards.
-
Page 15: Maintenance And Storage
WARNING: Replace or re-sharpen the mowing blade at the end of the mowing season. Always have the mowing blade re-sharpened or replaced by a recommended Yard Force service centre. Unbalanced blades will cause the lawnmower to vibrate violently which can increase the risk of accidents occurring. -
Page 16: Troubleshooting
TROUBLESHOOTING MAINTENANCE AND STORAGE Storage and transport WARNING: Before performing any repair work, always ensure that the battery pack has been removed. Storage After cleaning the unit thoroughly, store mower in a dry room and allow the motor to cool down.
