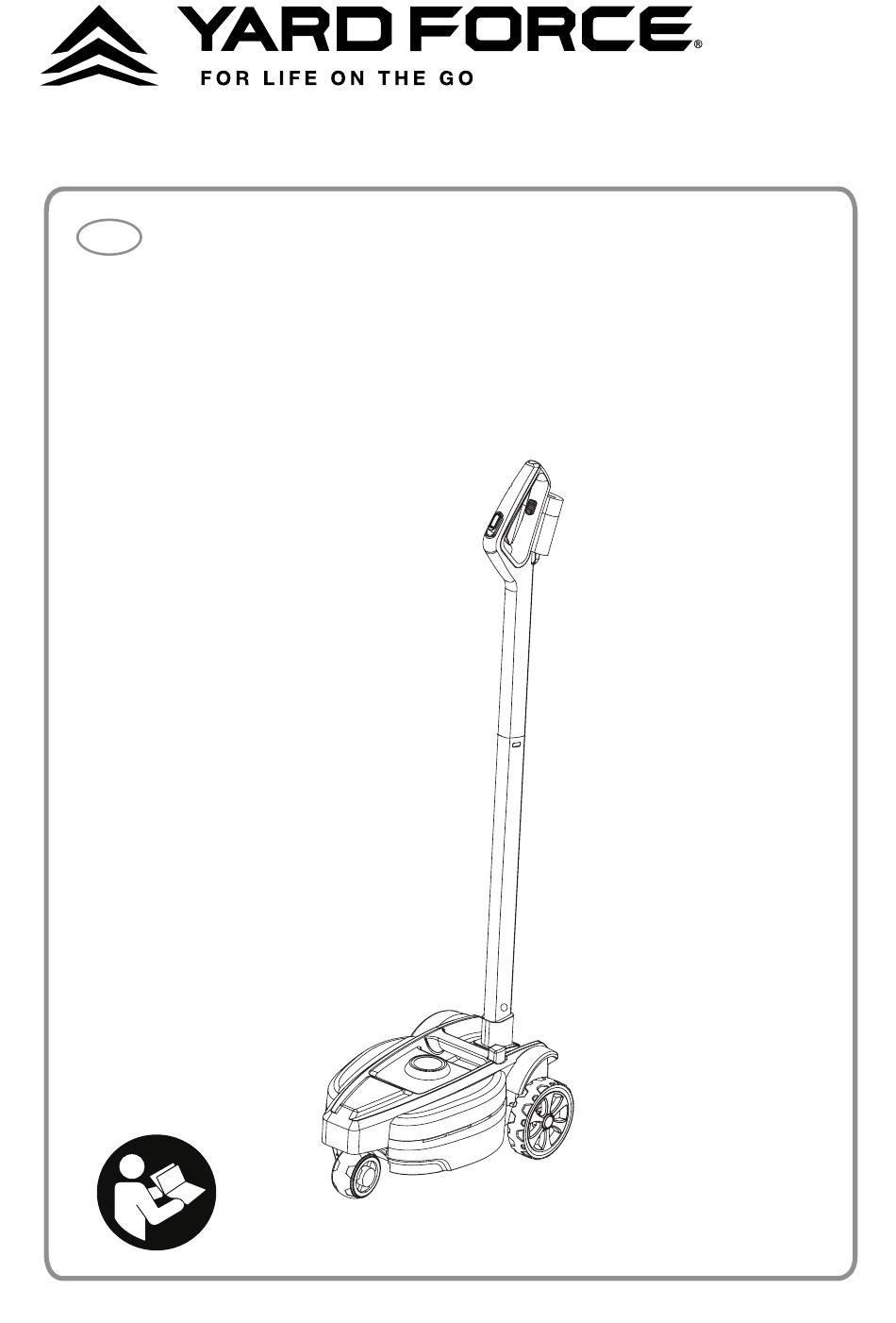

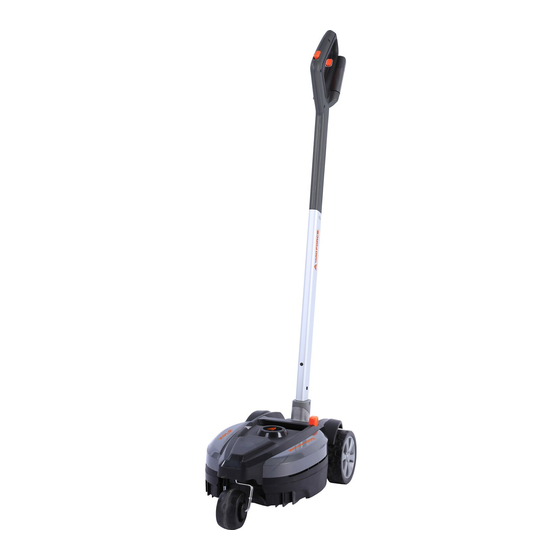

- Page 1 LM F23 Y0J-SP01-23108 iFlex CORDLESS MULCHING MOWER Original Instructions...
- Page 2 Read this manual carefully prior to assembling and operating the lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
- Page 3 90° 70° “Click” 17° 0° 100%...
-
Page 4: Table Of Contents
INTENDED USE LM F23 Original Instruction This lawnmower has been designed for cutting grass. The machine is to be used only for its prescribed purpose, any other use is deemed to be a case of misuse. CONTENT Please note that our equipment has not been designed for use in commercial, trade or industrial applications. -
Page 5: General Safety Warnings
GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS Training General Operation 1. Read the instructions carefully and make sure you fully 1. Use the tool only with specifically designated battery understand them. Make sure you are familiar with the packs. Use of any other battery packs will increase controls and the correct use of the product. -
Page 6: Product Safety Warnings
PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS except if the product must be tilted for starting. In this as this can increase the risk of fire or explosion. case, do not tilt it more than necessary and lift only 2. Check the battery charger, cable, and plug before the part furthest away from the operator. - Page 7 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS THROW WATER ON A BURNING LI-ION BATTERY. temperature range may automatically be blocked by 8. If the battery pack becomes too hot during charging, the protection circuitry of the battery pack. Longest disconnect and switch off immediately. Contact the life and best performance can be obtained if the service centre directly.
-
Page 8: Symbols
PRODUCT SAFETY WARNINGS SYMBOLS Safety symbols room temperature (around 20ºC). The purpose of safety symbols is to attract your 9. Every deep discharge cycle decreases the capacity attention to any possible dangers. The safety symbols of battery pack. To prolong battery life, it is and their explanations deserve your careful attention recommended that you charge the battery every six and full understanding. - Page 9 SYMBOLS SYMBOLS WEEE symbol. Waste electrical products should To reduce the risk of injury, user must read not be disposed of with household waste. Please instruction manual carefully. recycle where facilities exist. Check with your local authority or local store for recycling guidelines Avoid using tool in the rain.
- Page 10 SYMBOLS SYMBOLS Warning symbols on the battery pack Warning symbols on the charger To reduce the risk of injury, user must read To reduce the risk of injury, user must read instruction manual carefully. instruction manual carefully. Do not throw into water. The charger is for indoor use only.
-
Page 11: Technical Data
TECHNICAL DATA DESCRIPTION OF PRODUCT Parts description (Fig. A) Mower Type LM F23 Safety switch Front wheel Nominal voltage of product with battery Battery pack No-load cutting speed 5500 min Battery pack release button Cutting height adjustment button Cutting width 23 cm "Free Turn"... -
Page 12: Installation
INSTALLATION OPERATION Assemble the main handle Removing and inserting the battery pack Align the main handle with the tube. Insert the battery pack (Fig. G) Insert the main handle into the tube, make sure the handle is locked in position. (Fig. C) Align the battery pack with the handle connectors. -
Page 13: Maintenance And Storage
WARNING: Replace or re-sharpen the mowing blade at the end of the mowing season. the motor power during different working situation. High efficiency cutting performance. Always have the mowing blade re-sharpened or replaced by a recommended Yard Force service centre. -
Page 14: Troubleshooting
TROUBLESHOOTING MAINTENANCE AND STORAGE Storage and transport WARNING: Before performing any repair work, always ensure that the battery pack has been removed. Storage After cleaning the unit thoroughly, store mower in a dry room and allow the motor to cool WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially down. -
Page 15: 8Declaration Of Conformity
37540 Saint Cyr Sur Loire France Declare that the product: Machine Description: 12V mulching mower Declare that the product: LM F23/ Y0J-SP01-23108 Machine Description: 12V mulching mower Function: Cutting grass LM F23/ Y0J-SP01-23108 Function: Cutting grass Complies with the essential health and safety requirements of the following directives:...
