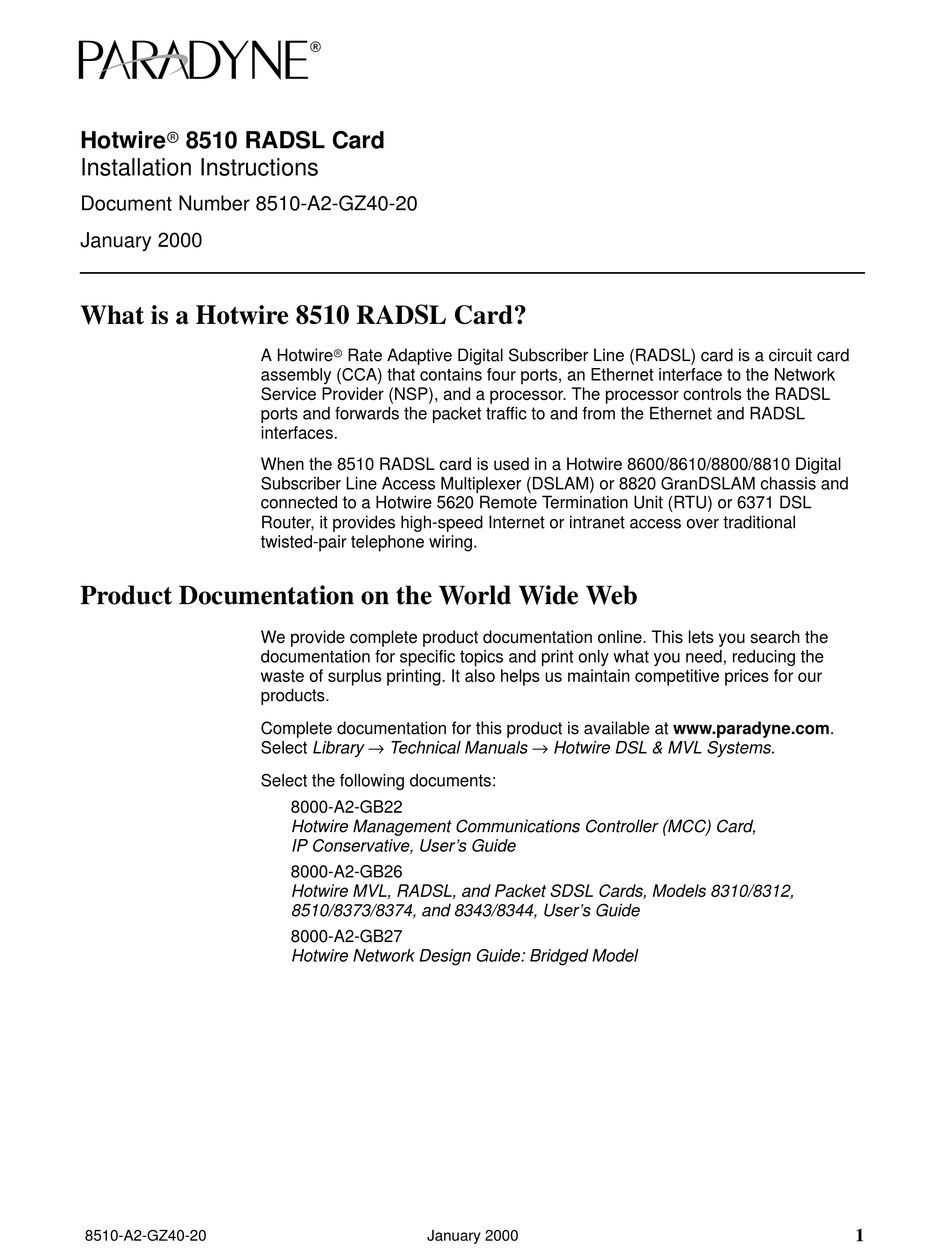

User Manual
Hotwirer 8510 RADSL Card
Installation Instructions
Document Number 8510-A2-GZ40-20
January 2000
What is a Hotwire 8510 RADSL Card?
Product Documentation on the World Wide Web
8510-A2-GZ40-20
A Hotwirer Rate Adaptive Digital Subscriber Line (RADSL) card is a circuit card
assembly (CCA) that contains four ports, an Ethernet interface to the Network
Service Provider (NSP), and a processor. The processor controls the RADSL
ports and forwards the packet traffic to and from the Ethernet and RADSL
interfaces.
When the 8510 RADSL card is used in a Hotwire 8600/8610/8800/8810 Digital
Subscriber Line Access Multiplexer (DSLAM) or 8820 GranDSLAM chassis and
connected to a Hotwire 5620 Remote Termination Unit (RTU) or 6371 DSL
Router, it provides high-speed Internet or intranet access over traditional
twisted-pair telephone wiring.
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the
waste of surplus printing. It also helps us maintain competitive prices for our
products.
Complete documentation for this product is available at www.paradyne.com.
Select Library
Technical Manuals
Select the following documents:
8000-A2-GB22
Hotwire Management Communications Controller (MCC) Card,
IP Conservative, User's Guide
8000-A2-GB26
Hotwire MVL, RADSL, and Packet SDSL Cards, Models 8310/8312,
8510/8373/8374, and 8343/8344, User's Guide
8000-A2-GB27
Hotwire Network Design Guide: Bridged Model
January 2000
Hotwire DSL & MVL Systems.
1
