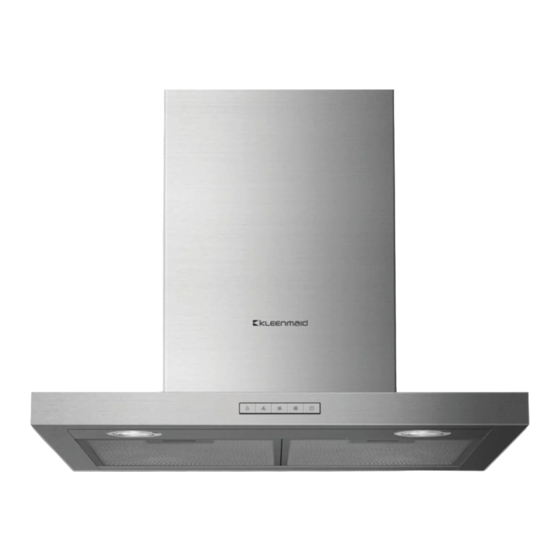

Summary of Contents for Kleenmaid RHSC61
-
Page 2: Table Of Contents
DIMENSIONS INSTALLATION MAINTENANCE TROUBLE SHOOTING KLEENMAID WARRANTY NOTE: Before making preparations for or commencing installation, the installer should refer to the current online version of the User Manual, which is available on the Kleenmaid website (see back cover for details). -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. For Class I appliances, check that the domestic power supply guarantees adequate earthing. -
Page 4: Components
COMPONENTS Ref. Qty. Product Components Hood Body,complete with: Controls, Light, Blower,Filter. Lower Decorative Chimney Upper Decorative Chimney The Activated Charcoal filter ( optional ) Qty. Documentation User Manual Ref. Qty. Installation Components Screws 5 x 50 Wall Plugs Screws 4,2 x 9,5 Hood fixing bracket Chimney fixing bracket appliance... -
Page 5: Dimensions
：mm Air outlet diameter Min. Min. 650mm 650mm The safety gap between the rangehood and the hob below must comply with the recommendations of the hob manufacturer. In case of no instructions, a minimum distance of 650mm (or other minimum distance as may be specified by AS/NZS 5601 and interpreted by a certified installer) should apply. -
Page 6: Installation
INSTALLATION NOTE: Before making preparations for or commencing installation, the installer should refer to the current online version of the User Manual, which is available on the Kleenmaid website (see back cover for details). CHOOSE A VENTING MODE This rangehood may be installed in one of 2 venting modes - ducted extraction-air mode and recirculation mode. - Page 7 INSTALLATION WALL DRILLING AND BRACKET FIXING NOTE: The safety gap between the rangehood and the hob below must comply with the recommendations of the hob manufacturer. In case of no instructions, a minimum distance of 650mm (or other minimum distance as may be specified by AS/NZS 5601 and interpreted by a certified installer) should Vertical reference line...
- Page 8 Fix the 150mm diameter smooth wall rigid exhaust pipe (not supplied) on the hood body, connect chimney and hood body with 2 screws . connect chimney fixing bracket and chimney with 2 screws Hook the hood body Hook the hood body to the bracket 20. Level the hood body itself.
-
Page 9: Use
Speed adjustment Each function is controlled independently by a button. Light High Power Button Function When rangehood is off (Standby mode) press Power Operates at Low speed, and Power to turn the motor on. and Low speed buttons illuminate. When rangehood is operating press Power and the Power button flashes and motor appliance enters a 3 min Delayed Shutdown mode turns off automatically after running... -
Page 10: Maintenance
MAINTENANCE FILTERS Your Kleenmaid rangehood has one or both the following types of filters: These filters must be cleaned after every 2 months of operation, or more frequently for particularly heavy usage. Operate the latch on the grease filters and remove the filters one by one, pushing them towards the back side of the rangehood unit and simultaneously pulling downwards. - Page 11 Remove the metal grease filters REMOVE Remove the saturated activated charcoal filter. Fit the new filters. Replace the metal grease filters. REMOVE It must be ensured that the filters are correctly installed whenever the rangehood is operating. Failure to do so may damage the rangehood, and such damage will not be covered by the manufacturer's warranty.
- Page 12 LIGHTING LIGHT REPLACEMENT Replacing the light modules The light bulbs cannot be replaced. The entire light module has to be replaced. When changing the light modules, the contacts are live. Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
-
Page 13: Trouble Shooting
TROUBLE SHOOTING Fault Cause Solution The blades are blocked. Check the blades. The capacitor is damaged. Contact Service Department Light on, but The motor is damaged. Contact Service Department motor does not The internal wiring of motor is cut off/ work Contact Service Department disconnected. - Page 15 For the latest version of the Kleenmaid Warranty, please see our website https://kleenmaid.com.au/warranty/ or phone us on (02) 9310 1207.
- Page 16 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2, 204 Botany Road Alexandria...
