R

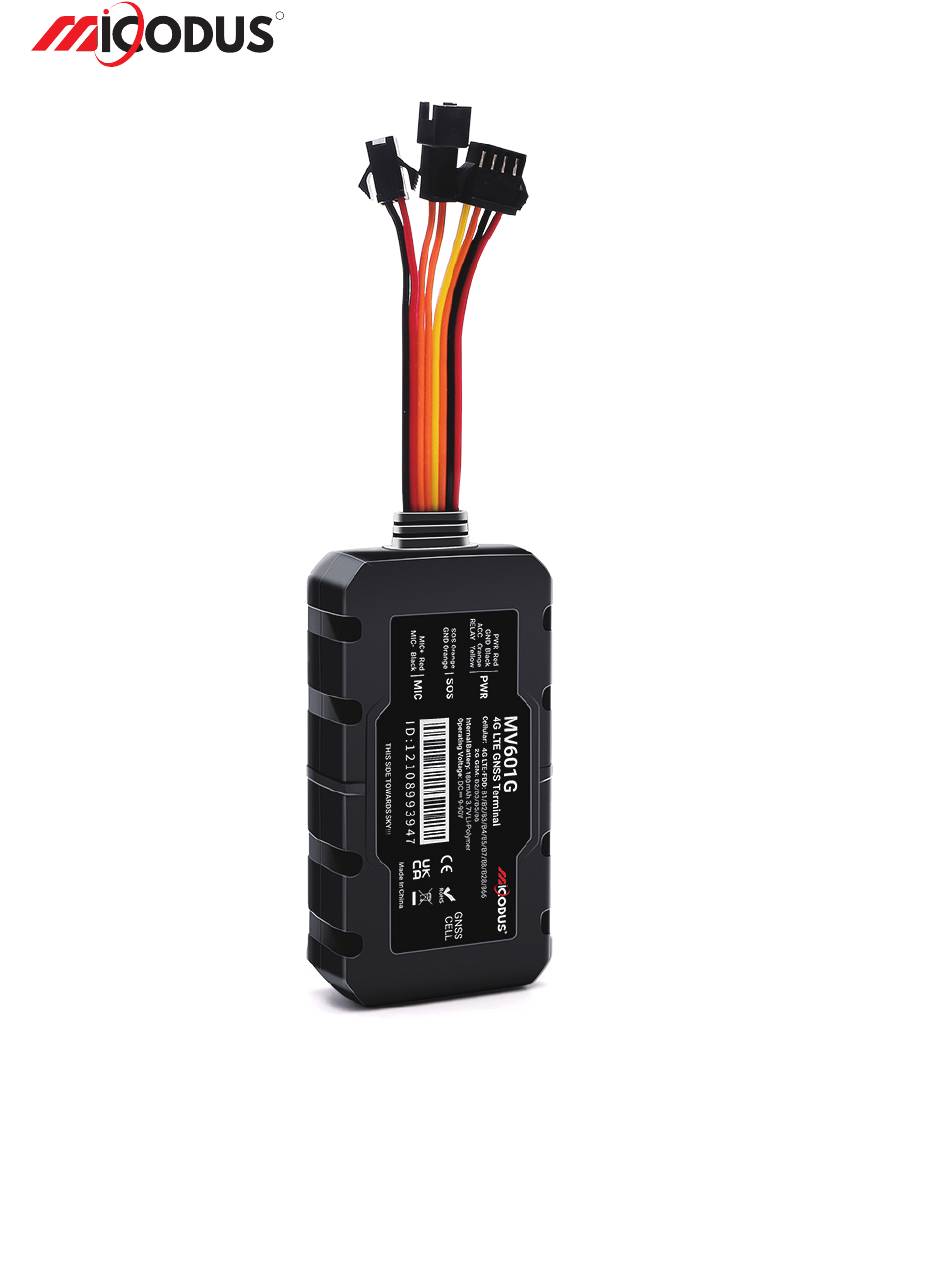

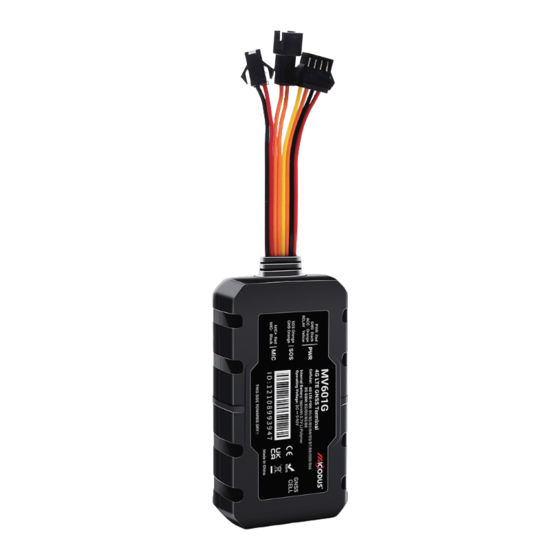

4G MV601G User Manual V1.0
Learn how to set up your new MiCODUS Tracker
Copyright ©2023 MiCODUS | All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV601G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MICODUS MV601G

Summary of Contents for MICODUS MV601G

  • Page 1 4G MV601G User Manual V1.0 Learn how to set up your new MiCODUS Tracker Copyright ©2023 MiCODUS | All Rights Reserved...

  • Page 2: Main Features

    Tow Alarm Power failure Ignition On/ Overspeed Voice Monitor Geo-fence Detection alarm OFF Alarm Alarm 2.Specifications Model MV601G Device Information Weight 170mm(L)*46mm(W)*23mm(H) Dimensions 3.7V 180mAh Li-Polymer Battery Battery Capacity Working Voltage 9-90V DC 4V/average 45mA Working Current Working Parameters Sleep Current 4V/Less than 5mA -20℃...
  • Page 3 3.How to manage the tracker to get online? SIM card requirements Step 1 Normal SIM 1MB Free Roaming 1MB Free Roaming Prepaid Data Unavailable Prepaid Data Unavailable Data Only www.spionlink.com Data Only www.spionlink.com No SMS & Call Add Credit No SMS & Call Add Credit Please get a suitable SIM card from your local place.

  • Page 4: Configure Apn

    Step 3 Wiring NOTE : After installed SIM card correctly , it is very important to connect the tracker with external power no less than 12V for power supply before operation! Step 4 Configure APN Please get the exact correct APN name from local SIM card provider.Take the tracker to a good signal place for operation and configure the APN for it as below: SMS Command Note...

  • Page 5: Indicator Status Description

    User Guide Genuine Packing Box 5. Functions Explanation a. Cut Off Fuel/Resume Fuel For example: * Set center number by this sms command: MV601G CENTER,A,center number# CENTER,A,center12345678910# * Send this sms command from the center number: SET CENTER NUMBER OK RELAY,A# RELAY,1# A=0/1/2;...

  • Page 6: Vibration Alert

    Vibration Alert: For example: This vibration alert function just work under stationary MV601G status. How to use this function: SOS,A,12345678910# * Configure SOS numbers for the tracker by this sms command: SET SOS NUMBER OK SOS,A,1st number,2nd number,3rd number#...

  • Page 7: Troubleshooting

    6. Installation Recomendation Under rear windshield Under front windshield Inside Door Pedal Around dashboard Inside the head light Inside the taillight component Inside the front cover or plastic Under the pedal 1) The decice should face up to the sky. 2) Metal therma barrier of heating layer of the windshield affects the signal.

  • Page 8: Setting Commands

    APN,CMNET# (if no name & Password) APN,Network name[,name, APN Setting APN,internet,internet,internet# (if with name & password]# Password) If set with Domain Name: SERVER,1,d.micodus.net,7700# SERVER,1,Domain,Port# Server Setting If set with IP: SERVER,0, SERVER,0,47.254.77.28,7700# IP,Port# Check IMEI DEVICE IMEI No. : 0123456789 IMEI# NEW IMEI No.
  • Page 9 Example: Set 3 numbers at a time: SOS,A,13800138000,13800138001,13800138002# Set the first numberseparately: Add SOS SOS,A,1st number,2nd number, SOS,A,13800138000# Administrator Number 3rd number# Set the second number separately: SOS,A,,13800138001# Means to set 3rd number separately: SOS,A,,,13800138002# Example: Directly delete the number: SOS,D,13800138000# Delete 1st number: Delete SOS...

  • Page 10: Inquiry Commands

    A=1/2; 1: Enable relay immediately 2: Enable relay safely For Example: 1. RELAY,1# A is set to 1, the relay command will be executed RELAY,A# immediately. Cut Off / Resume Fuel 2. RELAY,2# A is set to 2, the relay command will be executed safely.

  • Page 11: Alarm Commands

    BATTERY: XX% (Built-in Battery Power Percent) INTERNET: CLOSED (No Network) FAILED (Connecting Network or Failure) SUCCESS (Connected to Network） NET: NONE (No celluar Signal), HIGH / MED / LOW (Signal Strength) , 18(Signal value) GPS: CLOSED (GPS Module Closed); FIXED,N (Positioned and satellite number); UNFIX,0 (Not Positioned yet) SPEED: 30KM/H Status Inquiry...
  • Page 12 Example: SENALM,ON,2# (Means enable the vibration alarm, and the alarm message will be sent via SMS, server and call once it is triggered) SENALM,A,M# A=ON/OFF, default: OFF; Vibration Alarm M=0/1/2, way of alarming, 0 : Serveronly, 1: SMS+Server, 2 : Setting SMS+Server+Call, default:2 SENALM,OFF#...

  • Page 13: Any Questions

    9. Any Questions? support@micodus.com E-mail: Skype: MiCODUS 10. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store HarmonyOS Download for...
