Uniden BW614PTR - Baby Monitoring System Manual

WHAT'S IN THE BOX?

• If any item is missing or damaged, contact your place of purchase immediately.Never use damaged products!
• Need help? Get answers at our website:www.uniden.com.au for Australian model

All trademarks are registered trademarks of their respective owners.

GETTING STARTED

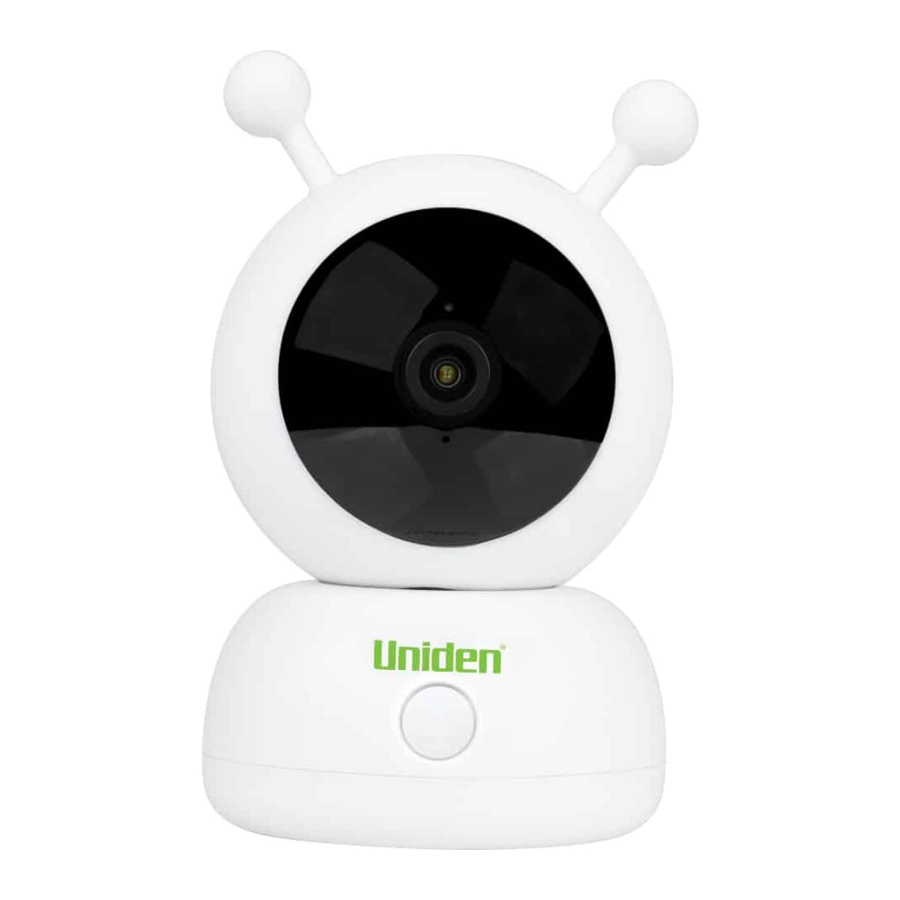

Camera

INSTALLATION

CAMERA INSTALLATION
Placement Considerations
The camera can be placed on a shelf or other flat surface.

• The camera included is NOT weatherproof; it is an indoor camera.
• Avoid having a direct light source in view of the camera (ceiling or floor lamps).
• Carefully plan where and how the camera will be positioned, and where you will route the cable that connects the camera to the power adaptor.
• If you are planning to pair it to a monitor, the clearest line-of-sight between the camera and monitor is best. Walls, especially brick and concrete, can affect reception quality.
• When pairing to a monitor, to positioning the camera, bring the monitor along; it's much easier to get the camera into the right position when you have the display handy. Check the image on the monitor before you install the camera.

You can install a maximum of 2 cameras to a BW61xx series monitor. When pairing the additional camera, you will need to pair the cameras with the monitor.

Powering the Camera
Insert one end of the micro USB cable to the micro USB port on the camera (at the back of the camera).
Connect the other end of the USB cable into the USB power adaptor.
Connect the USB power adaptor into a 240 volt AC (standard indoor) power outlet.
Switch on the plug and allow the camera to power up.

PAIRING TO THE MONITOR

Pairing the camera to the monitor:

1. Press the Menu button on the monitor, and select > Camera Management > Camera icon that is greyed out .

2. Press and hold the pairing button on the camera until you hear the prompt tone.

3. Press OK button on the display screen to start pairing.

Unpair the camera from the monitor:

1. Press the Menu button on the monitor, and select > Camera Management.
2. Press and hold OK button on the monitor to unpair the camera.

The viewing range is limited to no more than 150m in line of sight. Other factors such as house walls, layout and electronic devices will affect the transmission range.

USING THE BABY MONITOR

The BW61xxR series monitor supports up to two camera connections and able to display two camera feeds at the same time.
To set parameters or enable functions of one of the cameras, you will need to select the camera first.

Camera Selection:
Press the back key on the home page to enter the camera selection mode. The camera icon will appear on the camera live view screen and will start flashing. Press the LEFT or RIGHT button to switch the camera to be controlled and press OK to select the camera.
To enjoy one camera view, please press OK again after selecting the camera.
The below interfaces are for reference only.

BABY WATCH PLUS APP

REMOTE VIEWING VIA APP
You can download Uniden Baby Watch Plus app to remotely view the camera.
To set up the baby monitor camera, please make sure it's successfully installed and powered on, and that the status indicator on the camera is flashing red slowly.
The flashing RED (slow) status means that your camera is ready to be paired to the Baby Watch Plus App.

Prerequisites

• You must have an available Wi-Fi-enabled Smartphone (Android or iOS smartphone).
• The BW614PTR camera and your smartphone must be within the same Wi-Fi network range for initial setup (ideally within 3m from the router).
• Wi-Fi router connection is 2.4GHz and password if any.

1. Search and download the free Baby Watch Plus app from the App Store for iOS devices or Play Store for Android devices. You will need to create an account specifically for the Baby Watch Plus app. If you already have an account with Baby Watch Plus app, log in account and skip to Step 5.
2. When the status indicator on the camera starts flashing red slowly, the camera is ready to be paired with the Wi-Fi network. If the status indicator is not red or flashing quickly, insert a pin to press and hold the reset button for 5 seconds, wait for the status indicator to flashing red slowly.


* Please note that app screenshots are for reference only. User Interface for iPhone and Android Phones might differ in terms of icons layout and functionality and may change without notice.
As the Baby Watch Plus app is constantly under development to enrich user experience, the icons/ screens shown may vary slightly from the actual app.

2. When launch the Baby Watch app for the first time, you will see the login page. Tap the "Sign Up" button to create a new Baby Watch Plus account.

3. Enter your email address you wish to register with and check the user agreement privacy policies. Tap "Next" button to continue.

4. Name your account and enter your password. Tap Done button and you'll be all set. Your Baby Watch App account has now been created.

5. On the devices tab, to add a device, tap the "+" button on the middle of the screen or on the top right-hand side of the screen if you already have shared access or a paired device.

6. Please ensure the camera is powered on and is within the range of the router. Tap "Next" to continue. If the indicator light on the camera is not flashing slowly, press and hold the reset button with the reset pin for 5 seconds to reset the camera and set it up within 2 minutes. When the camera is flashing slowly, the camera is ready to set up tap "Next" to continue.

7. Enter the Wi-Fi password of the selected Wi-Fi network and tap "Next" to confirm the Wi-Fi name and password. Tap "Ok" to continue. Please note that the camera only supports 2.4GHz Wi-Fi connection and the Wi-Fi SSID and password must not exceed 24 characters.

8. Please make sure that you've ripped the protection film off the camera's lens.
   Tap "Next" and a QR code will be generated on the screen. Please place the QR code on screen towards the camera lens at a distance of about 15~20cm to let the camera scan the QR code. After you hear the voice prompt from the camera, please press "Next" to continue.

9. Please wait while the app is configuring your camera. Once completed, you'll be prompted to name your camera and tap "Done" to start the Live View.


LIVE VIEW

Scroll to the right.

HISTORY

Please note that a SD Card is needed and inserted to the camera for the lullabies to download and playback.
Only the event recording and Full-Day recording are saved in the SD Card. Any event history is saved in the SD Card.
Local recording and snapshot are saved to the phone gallery.

TROUBLESHOOTING

If you have problems with the system, there is often a quick and simple solution. Please try the following:

SPECIFICATION

CAMERA

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important information about this product's operation. If you are installing this product for others, you must leave this manual or a copy with the end user.
When using your equipment, always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following:

• This equipment is NOT waterproof. DO NOT expose it to rain or moisture.
• DO NOT immerse any part of the product in water. Do not use this product near water, e.g., near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• To avoid any risk of electric shock from lightning, avoid handling any electronic devices (except battery powered ones) during an electrical storm.
• Use only the power cord and/or batteries indicated in this manual.
• Never tug or pull on any power cord: be sure to leave some slack in the cord when placing your equipment, and always use the plug to unplug cord from the wall outlet.
• Never leave power cords where they can become crushed, cut, or frayed; when running power cords, avoid letting them rub against any sharp edges or lie across any high traffic areas where people might trip over them.
• Do not use the device if the adaptor cords or plugs have been damaged, the unit has been exposed to liquids, or the unit has been dropped or is damaged.

MAINTAINING YOUR SYSTEM
When dust and grime builds up on the camera lens and glass, it affects the camera's "vision." Use a microfiber cloth to regularly clean the cameras or when night vision video is cloudy or unclear.

Warning to Parents and Other Users
Failure to follow these warnings and the assembly instructions could result in serious injury or death. This product is not designed or intended for use as a medical monitor, nor should this product be used as a substitution for medical or parental supervision. Always be sure that both the transmitter and receiver are working properly, and are within range of each other.

STRANGULATION HAZARD. Keep the adaptor cords out of the reach of children.

KEEP OUT OF THE REACH OF CHILDREN.
Allow for proper ventilation when units are in use. Do not cover the camera or receiver with any object such as a blanket. Do not place it in a drawer or in any location which would muffle the sound or interfere with the normal flow of air.
SAVE THESE INSTRUCTIONS!

For best results
To avoid damage to your equipment, follow these simple precautions:

• Do not drop, puncture or disassemble any part of the equipment. There are no user-serviceable parts inside.
• Do not expose the equipment to high temperatures, and avoid leaving the equipment in direct sunlight for more than a few minutes. Heat can damage the case or electrical parts.
• Do not place heavy items on top of the equipment or expose the equipment to heavy pressure.
• Remove the power adaptor during long periods between usages.
• Clean only with a dry cloth.

Failure to follow the instructions in this operating manual will void the warranty. Uniden assumes no liability for damages to property or injury to persons caused by improper handling or failure to comply with these safety instructions.

For more exciting new products please visit our website:
Australia: www.uniden.com.au
