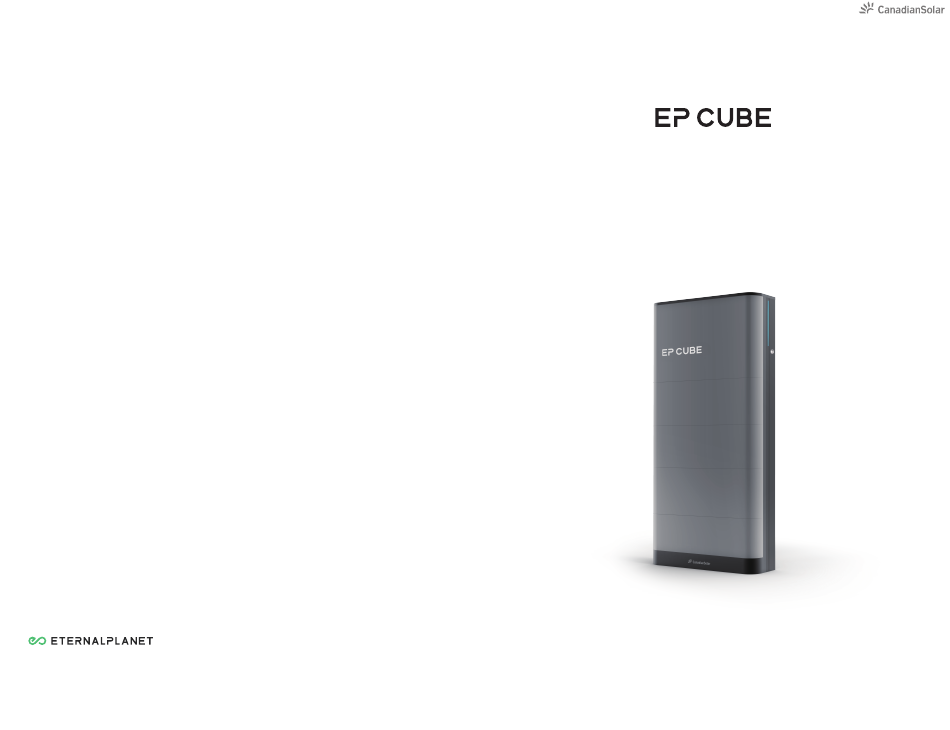

- Page 1 HOME ENERGY STORAGE SYSTEM USER MANUAL www.eternalplanetenergy.com Customer Service Center Germany Italy Spain service.de@epcube.com; service.it@epcube.com; service.es@epcube.com https://epcube.com/de/ https://epcube.com/it/ https://epcube.com/es/...
-
Page 2: Table Of Contents
CONTENTS MANUAL DESCRIPTION • About This Manual ------------------------------------------------------------------------------------ • General Description ----------------------------------------------------------------------------------- • Abbreviated Terms ------------------------------------------------------------------------------------ SAFETY INSTRUCTIONS • General Notice ------------------------------------------------------------------------------------------ • Emergency Procedures ---------------------------------------------------------------------------- PRODUCT INSTRUCTIONS • EP Cube Description --------------------------------------------------------------------------------- • System Topology ------------------------------------------------------------------------------------- • Operations Mode -------------------------------------------------------------------------------------- •... -
Page 3: Manual Description
MANUAL DESCRIPTION SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS – This manual contains important instructions for the Thank you very much for choosing the EP Cube HES product series. We sincerely following Models: believe that EP Cube will optimize your home energy, and also look forward to your EP Cube HES-EU1-706G, EP Cube HES-EU1-710G, EP Cube HES-EU1-713G, feedback on the performance of the product for improvement and better service. -
Page 4: Emergency Procedures
In case of fire CAUTION • Turn off the Grid Circuit Breaker, AC On-Grid and AC Boost (back-up) Circuit Breakers. • The transportation, installation, and commissioning of the EP Cube must be carried • Turn off the DC PV switch inside the EP Cube PCS to isolate PV input. out under the specified conditions detailed in the datasheet and installation manual. -
Page 5: Product Instructions

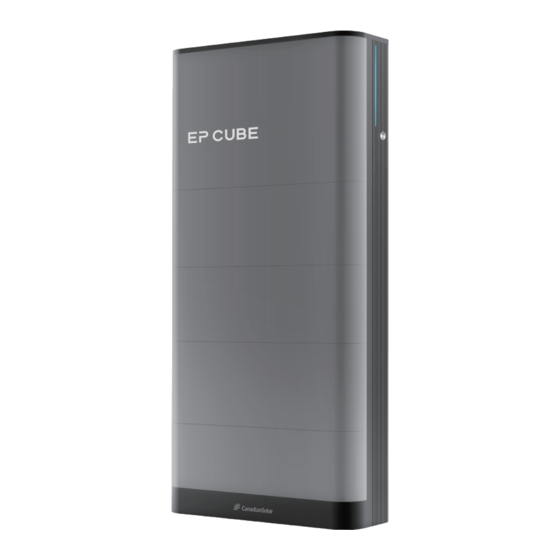

PRODUCT INSTRUCTIONS EP Cube Description The EP Cube HES integrates the EP Cube PCS, Battery Modules and the EP Cube Base. B. EP Cube AC Switch Box (optional) Accessory components including the EP Cube AC Switch Box and EP Cube Smart Meter Box are also provided for various installation scenarios. -
Page 6: System Topology
Operation Modes System Topology The EP Cube has three different operation modes: Self-Consumption, Back-up and The EP Cube HES supports partial home back-up system topology, and retrofits in any Time Of Use. The end- user can select the desired operation mode according existing home electrical network. - Page 7 During peak hours, the EP CUBE supports the load’s power consumption from Battery SOC Load consumption PV power PV power and battery to avoid using grid electricity at a high price. Loads are supp- Power (kW) orted by PV and battery as priority power sources. Any additional consumption is covered by the grid.
-
Page 8: Using Ep Cube
INSTRUCTIONS FOR USE AND CARE C. Turn On the EP Cube Using the EP Cube Once the condition that EP Cube HES is energized. (see item B). A. EP Cube App Turn on the EP Cube HES by pressing down the power button on the right side of the EP The end-user is be able to monitor power and energy flow and system performance via Cube for three seconds. - Page 9 D. Turning Off th EP Cube F. Disconnecting the fuse (for maintenance only) Turn off the EP Cube HES by pressing the power button located on the right side of the Do not disconnect the fuse without the supervision of the EP authorized service team.
-
Page 10: Product Update
Product Update General Operation And Care Updating the firmware to optimize performance of the EP Cube is of primary impor- tance. Enable the OTA (Over-the-Air) function on the update page of mobile app. A. Operation and Maintenance With this, your product will be updated automatically whenever a new firmware is If an end-user is absent for a period of time exceeding 30 days, please ensure that: available. -
Page 11: Appendix 1- Product And Safety Labels
APPENDIX 1- PRODUCT AND SAFETY LABELS EP CUBE PCS EP Cube HES-EU1-706G EP Cube HES-EU1-710G Add: 27th Floor, Building 3A, Add: 27th Floor, Building 3A, Longgang Intelligent Park, Shenzhen, China EP Cube HES-EU1-713G Longgang Intelligent Park, Shenzhen, China Web: www.eternal-planet.com Made in China EP Cube HES-EU1-716G EP Cube HES-EU1-720G...
