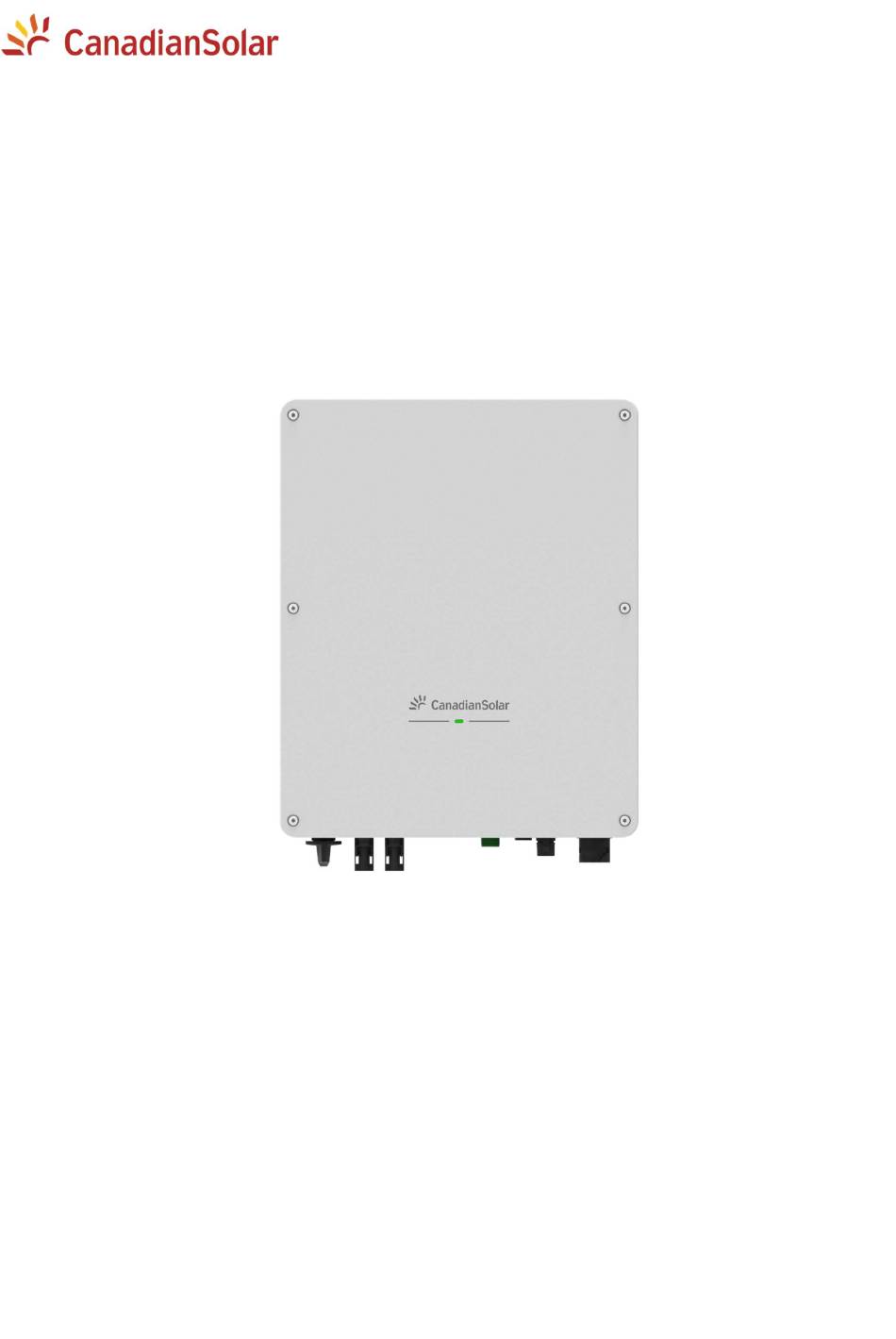

- Page 1 CSI-3K-S22002-E CSI-5K-S22002-E CSI-5K-S22003-E PV Inverter User Manual (Part No: 2809001703 Release Date: July, 2022)
-
Page 2: Table Of Contents
Contents 1 Introduction _________________________________________________________________________________ 1 1.1 General Information _____________________________________________________________________________ 1 1.2 User Manual Disclaimer _________________________________________________________________________ 1 1.3 Limitation of Liability ____________________________________________________________________________ 1 1.4 Target Group ______________________________________________________________________________________ 1 1.5 Symbol Conventions _____________________________________________________________________________ 1 1.5.1 Warnings in the Manual ___________________________________________________________________________________ 1 1.5.2 Labels on Product and Packaging ________________________________________________________________________ 2 2 Safety Instruction __________________________________________________________________________ 2 2.1 General Safety ____________________________________________________________________________________ 2 2.2 Notice for Use ____________________________________________________________________________________ 2... - Page 3 8.2 RS485 _____________________________________________________________________________________________ 12 9 CSI Cloudpro App _________________________________________________________________________ 12 10 Commissioning Inverter ________________________________________________________________ 13 10.1 Electrical Inspection ___________________________________________________________________________ 13 10.2 Mechanical Inspection ________________________________________________________________________ 13 10.3 Start-Up Inverter ______________________________________________________________________________ 13 10.4 LED Indicators __________________________________________________________________________________ 13 10.5 Switch Off _______________________________________________________________________________________ 13 11 Daily Maintenance ______________________________________________________________________ 14 12 Trouble Shooting ________________________________________________________________________ 14 12.1 Warning _________________________________________________________________________________________ 14...
-
Page 4: Introduction
Only qualified professionals and service personnel can do the installation and operation (refer to 62109-1). Installers must inform end-users (consumers) about the aforesaid information accordingly. This manual is only valid for the PV inverter types, CSI-3K-S22002-E , CSI-5K-S22002-E , CSI-5K-S22003-E produced by CSI Solar Co., Ltd. -
Page 5: Labels On Product And Packaging
1.5.2 Labels on product and packaging Symbol Description Hot surfaces！ Risk of burns due to hot components! Danger to life due to high voltage! Time need to discharge stored energy in the capacitors. Grounding Direct Current (ＤＣ) Alternating Current(ＡＣ) Check the user manual before service. CE mark. -
Page 6: Product Overview
(PV) strings into alternating current (AC) power, and feed the power into the power grid. This document involves the following product models: CSI-3K-S22002-E, CSI-5K-S22002-E, CSI-5K-S22003-E. PV grid-connected system mainly includes PV modules, DC switch, inverter, AC switch, electricity meter, and local grid. -
Page 7: Product Nameplate
The nameplate provides a unique identification of the inverter (Product type, device -specific characteristics, certificates and approvals). The nameplate is on the left side of the enclosure. Product Name: Grid-connected PV Inverter CSI-5K-S22003-E Model Number: Vmax. PV(absolute max.): 600V dc MPPT Voltage Range: 100~500V dc Max. -
Page 8: Storage
4 Storage The following requirements should be met when the inverters need to be stored: Do not unpack the inverter. Storage temperature: –40°C ~ +70°C. Storage humidity: 0% ~ 100%RH (Non-Condensing). The warehouse should be clean, well-ventilated, and non-corrosive gas, meanwhile it should be accessible all the time. No smoking, no illegal use of electricity and fire. - Page 9 Direction Min. clearance (cm) Above Below Sides Front FIG.6-3 Installation Clearance Requirement Min.30 cm Min.30 cm Min.30 cm Min.30 c m Min.30 cm Min.30 cm Min.30 cm Min.30 cm Min.30 cm FIG.6-4 Staggered Installation Mode (Recommended) 12) Install the inverter vertically or at a maximum backward tilted angle of 15 degrees to facilitate heat dissipation, and to ensure that no moisture can penetrate the product.
-
Page 10: Mounting Wall-Mounting Bracket
6.2 Mounting Wall-mounting Bracket To avoid electrical shock or other injury, please inspect existing electronic or plumbing installations before drilling holes. Danger Installation steps: 1) Use the wall-mounting bracket as a template and mark the positions of the drill holes, then drill the 4 holes accordingly, as per FIG. -
Page 11: Electrical Connection
7 Electrical Connection 7.1 Safety Danger to life due to lethal voltages in the inverter! Before performing any work on the inverter, must disconnect both AC and DC sides. Danger Damage to electronic components may happen due to electrostatic discharge. Take appropriate ESD precautions when replacing and installing the inverter. -
Page 12: Wiring Ac Output
Install an independent two-pole circuit breaker at the output side of the inverter for protection, the recommended AC circuit-breaker specifications are as follows: Inverter type AC circuit-breaker specifications CSI-3K-S22002-E CSI-5K-S22002-E CSI-5K-S22003-E Recommend AC cable length: Conductor cross section 4.0mm Conductor cross section 6.0mm Inverter type (Allowed Max. length) (Allowed Max. - Page 13 2）When using flexible cables, the conductor must be connected with suitable core end ferrules according to DIN 46228-4, as per FIG. 7-4. FIG. 7-4 Crimp the Three-core’s Ferrule Insert the L, N, and PE conductors into the corresponding pins of the plug (as per FIG. 7-5), then tighten the fastening screws by screwdriver to fix conductors firmly.
-
Page 14: Wiring Dc Input
7.6 Wiring DC Input Note: The DC connectors are in paired (negative and positive ones). Pay attention to the polarities when assembling. FIG. 7-8 DC Input Connectors 7.6.1 Requirement for DC input The single-phase inverters are equipped with one or two MPP trackers. Requirements for PV modules strings: 1) Same type PV modules for each string. -
Page 15: Connecting Pv Array (Dc Input)
FIG. 7-11 Illustration of DC Ports 7.6.3 Connecting PV array (DC input) Ensure the DC switch and AC breaker both are disconnected from the inverter before connect the PV arrays. Never connect PV array positive or negative pole to the ground, it could cause serious damages to the Danger inverter. -
Page 16: Commissioning Inverter
10 Commissioning Inverter 10.1 Electrical Inspection 1) Check PE connections with multi-meter: To make sure all the bare metal surfaces of the inverter are grounded. 2) Check DC voltage value: Check if the DC voltage of the PV string exceeds the allowable range. 3) Check the polarities of the DC voltage: To make sure the DC polarities are correct. -
Page 17: Daily Maintenance
11 Daily Maintenance Risk of inverter damage or personal injury due to incorrect service! Always keep in mind that the inverter is powered by dual sources: PV array and utility grid. Before any service work, observe the following procedure. 1) Disconnect the inverter from the utility grid side first and then PV array; 2) Wait at least 5 minutes after shun down the inverter, for inner capacitors to discharge DANGER completely;... - Page 18 1. Disconnect the DC switch, remove the DC connector, measure the voltage of the PV string, and check if it exceeds the input-voltage specification of the inverter. F-101 High DC input voltage 2. If exceed the specification, re-layout the PV module string. 3.
-
Page 19: Handling The Inverter
Power grid voltage F-118 detection consistency error (Minor) Secondary memory F-123 failure F-124 Clock failure 1. Restart the inverter. 2. If error message still exists, contact Customer service. Internal communication F-125 failure F-129 Main memory failure 13 Handling the Inverter 13.1 Removing Inverter 1) Turn off the inverter as described in section 10 and section 11. -
Page 20: Annex A: Acronyms And Abbreviations
ANNEX A: Acronyms and Abbreviations alternating current current transformer direct current DRED demand response enabling device demand response mode light emitting diode MPPT maximum power point tracking personal computer protecting earthing photovoltaic residual current protective device residual current operated monitor THDi total harmonic current distortion WiFi... -
Page 21: Annex B: Specification
ANNEX B: Specification Model CSI-3K-S22002-E CSI-5K-S22002-E CSI-5K-S22003-E Input (DC) Max. Input Voltage(V) Start-up DC Input Voltage(V) Rated PV Input Voltage(V) MPP Voltage Range(V) 60 ~ 500 100 ~ 550 100 ~ 500 Number of MPP Trackers Number of DC Inputs Max. -
Page 22: Annex C: Ct Installation Manual Guide
ANNEX C: CT Installation Manual Guide CT Installation Manual Guide (Part No.: 2809000900 Release Date: August, 2020) 1. Scope CSI inverters integrate the export limitation function, to use this function, please read this installation guide to install the CT sensor and set the inverter. -
Page 23: Install The Ct
3) Insert the conductors into the corresponding pins of the plug, and then fix the conductors by screws firmly. Tool: Phillips screwdriver #1. Torque: 0.6~0.8N.m. CT Connector of inverter side CT Side Pin - 5 CT+ (red) CT- 6 Pin - 6 CT- (black) FIG.5 The pin positions of connector 4) Tighten the pressure nut, and then push the threaded sleeve into the plug, as per FIG.6. -
Page 24: Annex D: Single-Phase Meter Installation Guide
ANNEX D: Single-Phase Meter Installation Guide Single-Phase Meter Installation Guide (Part No.: 2809001000 Release Date: August, 2020) 1. Scope CSI inverters integrate the export limitation function, please read this installation guide to install the single-phase meter and set the inverter. This meter applies to PV inverter models: CSI-3K-S22002-E, CSI-5K-S22002-E;... -
Page 25: Wiring Electrical Cable
3) Insert the conductors into the corresponding pins of the plug, and then fix the conductors by screws firmly. Tool: Phillips screwdriver #1. Torque: 0.6~0.8N.m. Function METER Connector of inverter Meter 485-B 485-A 485 - A Pin - 1 Pin - 5 485 - B Pin - 2 Pin - 6... -
Page 26: Annex E: Csi Cloudpro App
ANNEX E: CSI CloudPro APP 1 APP Introduction The CSI CloudPro APP can establish communication connection to the inverter via the Blue-tooth, thereby achieving near- end maintenance on the inverter. Users can use the App to view basic information, alarms and events, set parameters, etc. - Page 27 Step 1：Open the CSI CloudPro APP. Step 2：Select “Local Mode”, then scan logger SN. The mobile phone will connect to the collector automatically. 24 / 25...
- Page 28 Step 3：After the connection succeeds, users can view the real-time operating data of the inverter. Step 4：Select “Params”, enter the password 000000 and login the system. Then, users can view and modify parameters. *APP pictures are for reference only. 25 / 25...
- Page 29 China – Global Headquarters CSI Solar Co., Ltd. 199 Lushan Road, SND, Suzhou, Jiangsu, China, 215129 Sales Inquiries Email: info@csisolar.com Customer Support Email: service.ca@csisolar.com This manual is subject to change without prior notification. Copyright is reserved. Duplication of any part of this issue is prohibited without written permission...
