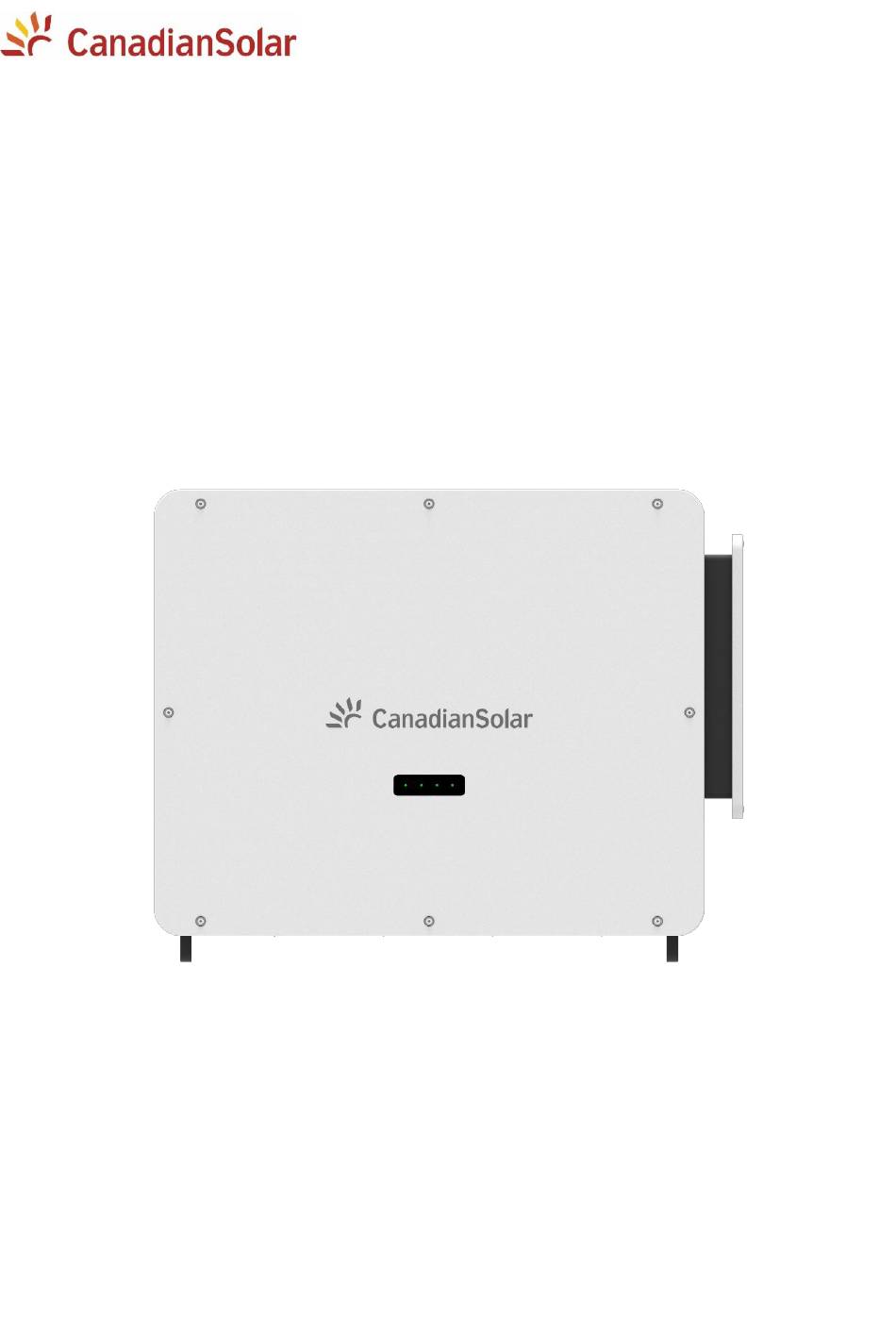

- Page 1 CSI-350K-T8001A-E CSI-350K-T8001B-E CSI-333K-T8001A-E CSI-333K-T8001B-E CSI-250K-T8001A-E PV Grid-Connected Inverter Quick Installation Guide （Part No: 91000588; Release Date: April, 2024）...
-
Page 2: About This Guide
Before installing the products, please check whether the products are complete, consistent with the order, and whether there is obvious damage. If there is any abnormality, please contact the local dealer or CSI Solar Co., Ltd. 2 Product Introduction CSI-250K-T8001A-E CSI-333K-T8001A-E CSI-350K-T8001A-E PV-1 PV-3 PV-5 PV-7... -
Page 3: Installation Environment Requirements
CSI-333K-T8001B-E CSI-350K-T8001B-E DC SWITCH-1 DC SWITCH-2 DC SWITCH-3 DC SWITCH-4 PV-1 PV-3 PV-5 PV-7 PV-9 PV-11 PV-13 PV-15 PV-17 PV-19 PV-21 PV-23 PV-25 PV-27 PV-29 PV-31 COM.-2 MPPT-1 MPPT-2 MPPT-3 MPPT-4 MPPT-5 MPPT-6 MPPT-7 MPPT-8 MPPT-9 MPPT-10 MPPT-11 MPPT-12 MPPT-13 MPPT-14 MPPT-15 MPPT-16... -
Page 4: Installation Clearance Requirements
3.3 Installation Angle Requirements Install the inverter vertically or at a minimum back tilt of 10°. Forward installation or upside-down installation is prohibited. FIG 3-2 Installation angle 3.4 Installation Clearance Requirements Ensure ample clearance surrounding the inverter to accommodate adequate heat dissipation ( as shown in FIG 3-3 The maintenance of the inverter's external fan module requires a larger clearance on the left side). - Page 5 3.5 Assembling the mounting-bracket Dimensions of the assembled mounting bracket are as follows 3-5. FIG 3-5 Dimensions of the mounting bracket 3.5.1 Standard C or U Steel Installation Mounting Steps: Step 1: Localize the hole positions in C or U-section steel to install the mounting bracket. Step 2: Secure the mounting bracket with M10 bolts and nuts.
-
Page 6: Inverter Installation
3.6 Inverter Installation Step 1: Take out the inverter from the packing carton. Step 2: Hoist the inverter to the mounting-bracket when necessary. If the installation position is not high enough, skip performing this step. Step 3: Hang the inverter to the mounting-bracket and ensure that the mounting ears perfectly engage with the mounting-bracket. Step 4: Fix the mounting-bracket with two screws M6x30. - Page 7 ≥ aluminum wire*Note (1) Aluminum alloy wire or copper clad aluminum wire: S: 150mm²~400mm²; ≥ Tracking System Double-layer protected three-core outdoor 10mm² 15mm~18mm Power Cable copper wire cable and M4 OT terminal Communication 485 Communication Cable 0.2~1.0mm² 4.5mm~6.5mm* Cable Note（2） Wireless Communication Note...
-
Page 8: Communication Cable Connection
L2=L1+3mm L3=2L1 ≤ ≤ 12.5mm FIG 4-2 PE cable installation 4.3 Communication Cable Connection 4.3.1 RS485 Wiring Steps Connector schematic diagram, as shown below. Gland nut Sealing ring threaded sleeve Plug（metal pins and outer casing） FIG 4-3 Connector schematic diagram Step 1: Prepare the signal cable (Strip off about 40mm of the signal cable sheath, and then strip off about 8mm of the insulation layer.). - Page 9 FIG 4-6 Connector installation Step 4: Finally, insert the assembled connector into the RS485 socket (COM.-3) on the inverter. COM.-3 FIG 4-7 RS485 socket installation 4.3.2 RS485 Communication System 4.3.2.1 Single Inverter Communication System For the application scenario of a single inverter, a single RS485 communication cable can be used to establish communication connection.
- Page 10 (A) Inverter (B) Sub-array Controller (C) Upper Computer When multiple inverters are connected in parallel (more than 15 inverters), a 120R matching resistor should be added to the first and last inverters. Sub-array Controller PV inverter The length of the RS485 communication cable cannot exceed 1000m. 4.4 Communication Module Connection (Optional) This product supports the smart data stick.
-
Page 11: Plc Communication Connection
4.5 PLC Communication Connection The inverter has an embedded PLC communication module that can be adapted to work with the sub-array controller provided by CSI to enable data communication. Please refer to the user manual of the sub-array controller for specific connection instructions. - Page 12 Step 8: Open the terminal protection cover, connect the AC cables to the corresponding terminals, and ensure that the cables are securely connected. Step 9: Adjust the length of the cables left inside the cabinet and the position of the cores, and tighten the nuts clockwise. FIG 4-9 Open the wiring box cover L1 L2 L3 L1 L2 L3...
- Page 13 M8(PE) M12(L1/L2/L3) 10N.m 25~30N.m #13/#19 FIG 4-13 Connection of single-core cables 4.6.2.2 Multi-core cables: Refer to FIG 4-10 for peeling off the cable insulation sheath and core wire insulation layer, FIG 4-11 for processing cable cores, and FIG 4-12 for cutting sealing rings for single-core cables. Connect multi-core cables as shown in FIG 4-14. M8(PE) M12(L1/L2/L3) 10N.m...
- Page 14 4.7 DC Cable Connection Electric shock! Once exposed to sunlight, the PV array generates potentially fatal high voltage. DANGER Before performing electrical operations, ensure that all cables are uncharged. Do not turn on the AC circuit breaker before the inverter is electrically connected. Ensure that the PV array is adequately insulated from the ground to prevent any electrical hazards before connecting it to the inverter.
-
Page 15: Electrical Inspection
Ensure that the open-circuit voltage does not exceed the inverter’s maximum input limit of 1500V in any case. Step 3: Remove the protective covers of the DC connectors on the inverter that need to be connected to the PV strings. (Note: Please keep the protective covers of the connectors that do not need to be wired.) Step 4: Insert the connector of the PV string into the corresponding DC terminal of the inverter until you hear a "click"... -
Page 16: App Introduction
LED indicator LED state Definition One or more PV strings are properly connected to the inverter and Steady green the DC input voltage for at least one MPPT is higher than 550V. DC input voltage of all MPPTs is lower than 250V. PV connection indicator Steady green The inverter is generating and is connected to the AC grid. - Page 17 Step 1：Open the CSI Smart Energy APP. Step 2：Select “ More tools”->“ Local Access”. Scan the QR code of the dongle, and the mobile phone will connect the dongle automatically. Step 3: If the inverter is booted for the first time, you need to set the Grid Code as required on the boot page. 16 / 18...
- Page 18 Must select the correct gird code where the inverter is installed. If the gird code is not suitable, it may cause the inverter to report a fault error. Notice You can also set the grid code on the “Parameter”-> “Inverter Basic Information-DSP”->”Grid Code”...
- Page 19 6.4 Function List 7 Obtaining User Manual Please scan the QR code for more detailed information in the user manual. 18 / 18...
