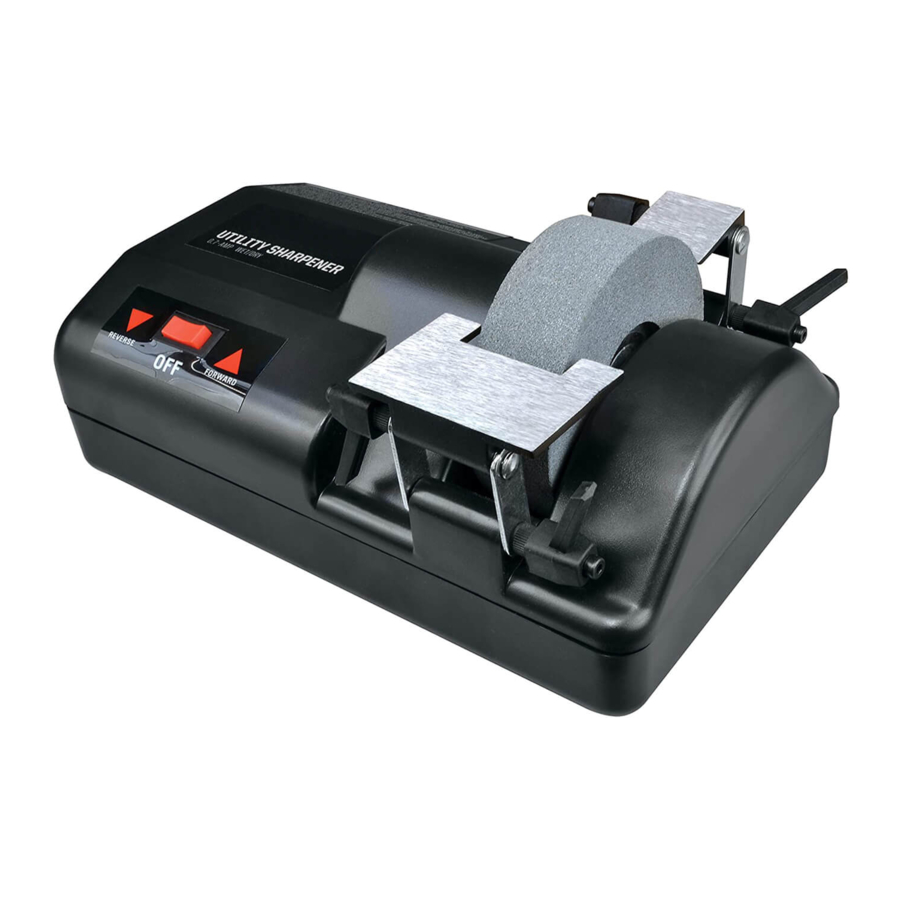

Bucktool SCM4500 - 4 UTILITY SHARPENER Manual

SPECIFICATIONS

SAFETY GUIDELINES

GENERAL SAFETY GUIDELINES BEFORE USING THIS PRODUCT

BEFORE USING THE UTILITY SHARPENER
Operating a Utility Sharpener can be dangerous if safety and common sense are ignored. The operator must be familiar with the operation of the tool. Read this manual to understand this Utility Sharpener. DO NOT operate this Utility Sharpener if you do not fully understand the limitations of this tool. DO NOT modify this Utility Sharpener in any way.

1. Some dust created by using power tools contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Some examples of these chemicals are:
   • Lead from lead-based paints.
   • Crystalline silica from bricks, cement, and other masonry products.
   • Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

2. READ the entire Owner's Manual. LEARN how to use the tool for its intended applications.
3. GROUND ALL TOOLS. If the tool is supplied with a 3-prong plug, it must be plugged into a 3-contact electrical receptacle. The 3rd prong is used to ground the tool and provide protection against accidental electric shock. DO NOT remove the 3rd prong. See Grounding Instructions.
4. AVOID A DANGEROUS WORKING ENVIRONMENT. DO NOT use electrical tools in a damp environment or expose them to rain.
5. DO NOT use electrical tools in the presence of flammable liquids or gases.
6. ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an environment with floor surfaces that are slippery from debris, grease, and wax.
7. KEEP VISITORS AND CHILDREN AWAY. DO NOT permit people to be in the immediate work area, especially when the electrical tool is operating.
8. DO NOT FORCE THE TOOL to perform an operation for which it was not designed. It will do a safer and higher quality job by only performing operations for which the tool was intended.

To avoid serious injury and damage to the tool, read and follow all of the Safety and Operating Instructions before operating the Utility Sharpener.

9. WEAR PROPER CLOTHING. DO NOT wear loose clothing, gloves, neckties, or jewelry. These items can get caught in the machine during operations and pull the operator into the moving parts. You must wear a protective cover on your hair, if your hair is long, to prevent it from contacting any moving parts.
10. ALWAYS WEAR EYE PROTECTION. Any power tool can throw debris into the eyes during operations, which could cause severe and permanent eye damage. Everyday eyeglasses are NOT safety glasses. ALWAYS wear Safety Goggles (that comply with ANSI standard Z87.1) when operating power tools.

11. ALWAYS WEAR HEARING PROTECTION. Plain cotton is not an acceptableprotective device. Hearing equipment should comply with ANSI S3.19 Standards.
12. ALWAYS UNPLUG THE TOOL FROM THE ELECTRICAL RECEPTACLE when making adjustments, changing parts or performing any maintenance.
13. KEEP PROTECTIVE GUARDS IN PLACE AND IN WORKING ORDER.
14. AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the"OFF"position before plugging in the power cord to the electrical receptacle.
15. REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning "ON" the Utility Sharpener.
16. USE ONLY RECOMMENDED ACCESSORIES. Use of incorrect or improper accessories could cause serious injury to the operator and cause damage to the tool. If in doubt, check the instruction manual that comes with that particular accessory.
17. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to the"OFF" position. DO NOT leave the tool until it has come to a complete stop.
18. DO NOT STAND ON A TOOL. Serious injury could result if the tool tips over or you accidentally contact the tool.
19. DO NOT store anything above or near the tool where anyone might try to stand on the tool to reach it.
20. MAINTAIN YOUR BALANCE. DO NOT extend yourself over the tool. Wear oil resistant rubber-soled shoes. Keep floor clear of debris, grease, and wax.
21. MAINTAIN TOOLS WITH CARE. Always keep tools clean and in good working order. Keep all blades and tool bits sharp.
22. EACH AND EVERY TIME, CHECK FOR DAMAGED PARTS PRIOR TO USING THE TOOL. Carefully check all guards to see that they operate properly, are not damaged, and perform their intended functions. Check for alignment, binding or breaking of moving parts. A guard or other part that is damaged should be immediately repaired or replaced.
23. CHILDPROOF THE WORKSHOP AREA by removing switch keys, unplugging tools from the electrical receptacles, and using padlocks.
24. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF DRUGS OR ALCOHOL.
25. SECURE ALL WORK. Use clamps or jigs to secure the workpiece. This is safer than attempting to hold the workpiece with your hands.
26. USE A PROPER EXTENSION CORD IN GOOD CONDITION. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. The table below shows the correct size to use depending on cord length and nameplate amperage rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the larger diameter of the extension cord. If in doubt of the proper size of an extension cord, use a shorter and thicker cord. An undersized cord will cause a drop in line voltage resulting in a loss of power and overheating. USE ONLY A 3-WIRE EXTENSION CORD THAT HAS A 3-PRONG GROUNDING PLUG AND A 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG.
27. ALWAYS WEAR A DUST MASK TO PREVENT INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust and asbestos dust. Direct particles away from face and body. Always operate tool in well ventilated area to provide for dust removal. Use dust collection system wherever possible. Exposure to the dust may cause serious and permanent respiratory or other injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with the dust. Allowing dust to get into your mouth or eyes, or lay on your skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust exposure, and wash exposed areas with soap and water.

SAVE THESE INSTRUCTIONS.

GUIDE LINES FOR EXTENSION CORDS

Be sure your extension cord is properly sized, and in good electrical condition.
Always replace a damaged extension cord or or have it repaired by a qualified person before using it.
Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.

ELECTRICAL

This tool is intended to be used only with a Ground Fault Circuit Interrupter (GFCI) type receptacle. Test GFCI before each use of the tool.

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the pathof least resistance for electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching electrical receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances.

This tool is intended for use on a circuit that has an electrical receptacle as shown in FIGURE 1. FIGURE A shows a 3-wire electrical plug and electrical receptacle that has a grounding conductor. If a properly grounded electrical receptacle is not available, an adapter as shown in FIGURE 2 can be used to temporarily connect this plug to a 2-contact ungrounded receptacle. The adapter has a rigid lug extending from it that MUST be connected to a permanent earth ground, such as a properly grounded receptacle box.

In all cases, make certain the electrical receptacle in question is properly grounded. If you are not sure, have a certified electrician check the electrical receptacle.

SPECIFIC SAFETY INSTRUCTIONS FOR THIS UNIT

The operation of the Utility Sharpener can result in debris being thrown into your eyes, which can result in severe eye damage. ALWAYS wear Safety Goggles (that comply with ANSI standard Z87.1) when operating the Utility Sharpener. Keep your thumbs and fingers away from the grinding wheels.

1. THE UTILITY SHARPENER MAY PRODUCE SPARKS AND DEBRIS DURING GRINDING OPERATIONS. Be sure that there are not any flammable materials in the vicinity.
2. NEVER FORCE THE WORKPIECE AGAINST A GRINDING WHEEL, especially if the wheel is cold. Apply the workpiece slowly, allowing the grinding wheel an opportunity to warm up. This will minimize the chance of wheel breakage. DO NOT grind using the sides of the grinding wheels. DO NOT apply coolant

3. THE DIAMETER OF THE GRINDING WHEEL WILL DECREASE WITH USE. Adjust the tool rests to maintain a distance of 1/8" or less from the wheel.
4. KEEP ALL TOOL RESTS IN PLACE. DO NOT USE THE UTILITY SHARPENER WITH THE TOOL RESTS REMOVED. KEEP THE TOOL RESTS FIRMLY directly to the grinding wheel.

Read, understand and observe all instructions in this manual before using or operating the tool for which it is written and supplied. Ensure that anyone who is to use the tool has read and understood the instructions provided.

KEY PARTS DIAGRAM

The Utility Sharpener is designed with numerous features to quickly and safely sharpen various items around the house and shop. A fine grit grinding wheel is used to produce a sharp and precise cutting edge. Two multi-position tool rests provide a firm work surface at a variety of angles. A water trough is used to keep the grinding wheel and the workpiece cool during sharpening operations. The Utility Sharpener additionally has been outfitted with an electrical power switch that permits the grinding wheel to rotate in the Forward and Reverse directions.

The Utility Sharpener will put a sharp edge on knives, scissors, and flat chisels with a minimal amount of effort and skill needed by the user. Sharp tools cut more quickly, safely and efficiently. A dull edge will require the user to apply more pressure to the workpiece, possibly causing injury to the user. Keeping the cutting tools sharp will provide many years of useful service. Periodic sharpening will prevent the tools from losing the bevel that was put on by the manufacturer originally. The factory bevel is what you should use when sharpening any tool.

Sharpening is an easy operation to perform as long as the following items are followed:

1. CLEAN the item to be sharpened prior to beginning any sharpening operations.
2. ALWAYS use the factory bevel (cutting edge angle) as a guide to sharpening the tool.
3. SHARPEN the tools prior to starting any job involving the tools. The user will then be less likely to rush the sharpening procedure, and then will do a safer and better job.
4. SHARPEN the tools in numerous light pressure passes instead of heavily pressing the tool against the grinding wheel. Light passes will be safer and produce a much sharper edge on the tool. Heavy passes will create a ragged and rough edge on the tool.
5. DO NOT sharpen tools that are cracked or bent. A damaged tool should be discarded.
6. The Utility Sharpener IS NOT to be used as a Bench Grinder to remove large amounts of material. The grinding wheel rotates much slower than a Bench Grinder. The grinding wheel uses a much finer grit grinding wheel than a Bench Grinder's grinding wheel.

OPERATING THE UNIT

The Utility Sharpener is designed for sharpening knives, scissors, flat chisels, and more.
ALWAYS WEAR EYE PROTECTION! Hot sparks may be produced during sharpening operations.

1. The electrical power switch must be in the OFF position.
2. The power cord must be unplugged from the electrical receptacle.
3. Place the Utility Sharpener on flat, firm, and water-resistant surface.
4. Loosen the two lock knobs that hold the front tool rest until the tool rest can be moved away from the stone. The lock knobs may be repositioned by pulling the knob out slightly. This permits the knob to be rotated for additional loosening or tightening.
5. Partially fill a measuring cup with tap water. Proceed to slowly pour approximately3-6 ounces of water over the stone as shown in Fig.4.


Do not have the Utility Sharpener operating while pouring in the water. The rotating grinding wheel will cause water to be splashed possibly onto the electrical switch.

6. Plug in the power cord and turn ON the Utility Sharpener. Let the tool run for one minute. This will let the grinding wheel absorb some of the water and provide a cool grinding surface.
7. After one minute, turn OFF the Utility Sharpener and unplug the power cord from the electrical receptacle. Proceed to fill the water trough until water is almost about to spill out of the drainage opening in the rear of the Utility Sharpener.
8. The Water Trough will need to be refilled occasionally during extended sharpening operations.
9. Return the front tool rest back into position.
10. Adjust both the front and rear tool rests until they are approximately 1/8" from the grinding wheel. Firmly tighten all four of the lock knobs.
11. Carefully inspect the item to be sharpened. Look for any cracks or bends. If the item is damaged, then discard it. DO NOT attempt to sharpen a damaged tool.
12. If the item to be sharpened is in good condition, then proceed to lay the item flat on either of the tool rests as shown in Fig. 5. Loosen the lock knobs and adjust the tool rest until the original bevel angle of the item to be sharpened is matched. Maintain a 1/8" distance from the grinding wheel after the tool rest has been adjusted to the proper angle. Firmly tighten the lock knobs.


NOTE
To sharpen scissors, hold as shown in Fig. 6. You must sharpen the bevel side of each scissors blade. DO NOT attempt to sharpen the flat side of the blade. This will ruin the scissors.

13. Practice a few times while the Utility Sharpener is OFF, slowly pulling the tool across the grinding wheel while keeping the tool flat on the tool rest. ALWAYS pull the item to be sharpened across the wheel from the angle to the tip of the blade. DO NOT ever push the item across the grinding wheel.
14. Plug the power cord into the electrical receptacle and turn ON the Utility Sharpener. Ordinarily, cutting edges are sharpened with the grinding wheel turning toward the blade. However, if you find it more comfortable, you may sharpen with the wheel turning away from the blade.
15. Proceed to lay the item to be sharpened flat onto the tool rest and hold onto it firmly with both hands. Slowly and lightly pull the item across the rotating grinding wheel. Inspect the item after a few passes to check the progress. The cutting edge should have a shiny appearance the entire length of the cutting surface. If the surface has dark and shiny spots, the angle of the tool rest is not properly adjusted or the user is not keeping the item flat on the tool rest. Make adjustments as necessary.
16. Alternate sharpening on both sides of the tool.
17. Upon completing the sharpening operations, a small burr might form on the cutting edge. Remove the burr by turning the Utility Sharpener OFF and unplugging it from the electrical receptacle. Lightly pull the blade across the stationary grinding wheel until the small burr is removed.
18. Dump out the water that was poured into the water trough earlier by tilting the Utility Sharpener backward.

MAINTENANCE

Turn the power switch "OFF" and unplug the power cord from its power source prior to any maintenance.

CLEANING
With the Utility Sharpener unplugged, rotate the abrasive wheel slowly and inspect for any damage.

REPLACE the abrasive wheel if there is any damage at all. FAILURE to replace a damaged wheel can cause serious injury to the operator.

DO NOT USE FLAMMABLE MATERIALS to clean the Utility Sharpener.a clean dry rag or brush is all that is needed to remove dust and debris buildup.

Repairs to the Utility Sharpener should be performed by trained personnel only. Contact Professional Service Center for authorized service.
Unauthorized repairs or replacement with non-factory parts could cause serious injury to the operator and damage to the Utility Sharpener.

TO PREVENT INJURY TO YOURSELF or damage to the Utility Sharpener, turn the switch to the "OFF" position and unplug the power cord from the electrical receptacle before making any adjustments.

TROUBLESHOOTING

WARRANTY

Having Problems?
Give us a chance to help you before returning this product
Email: service@bucktool.com
https://www.bucktool.com
909-255-1088 (8AM-5PM PST)
Skype: bucktool@foxmail.com
