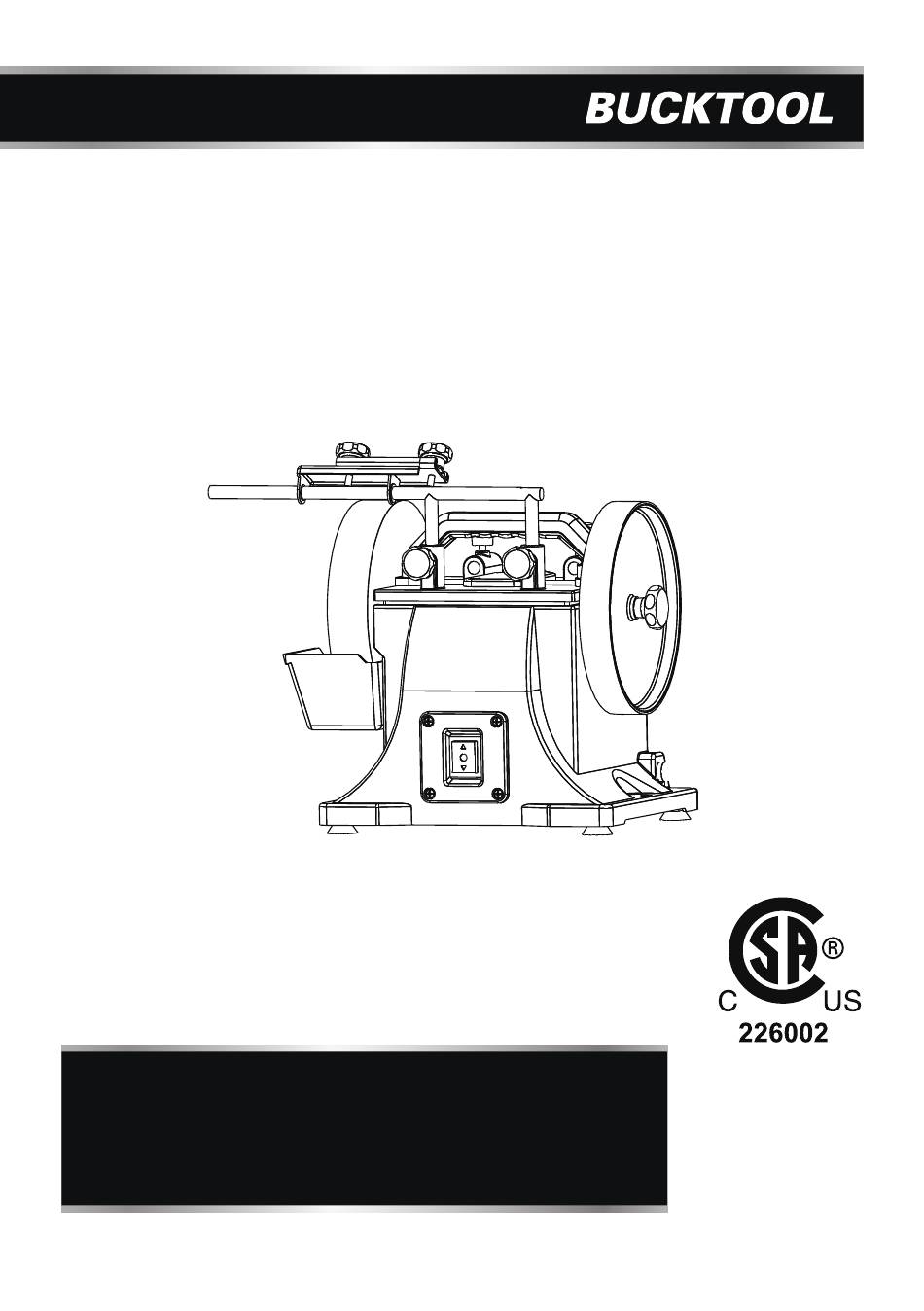

- Page 1 SCM8080 8 WET SHARPENER " WITH UNIVERSAL TOOL SUPPORT CONTACT US:bucktool@foxmail.com IMPORTANT: INSTRUCTION For your own safety, read and follow all of the Safety Guidelines MANUAL and Operating Instructions before operating this product.
-
Page 2: Table Of Contents
SCM8080 SCM8080 TABLE OF CONTENTS Specifications Safety guidelines Package contents Key parts diagram Operating instructions Maintenance Exploded view Parts list Troubleshooting Warranty SPECIFICATIONS Motor 120VAC, 60Hz , 1.6A Wet Wheel size 8"x1-9/16" Stropping wheel size 8" Wheel speed 115RPM... - Page 3 SCM8080 GENERAL SAFETY GUIDELINES BEFORE USING THIS POWER TOOL • Always wear eye protection and respirator. • Keep bystanders out of the work area while operating the tool. • Wheel guards and eye shields must be properly adjusted and tightened.
- Page 4 SCM8080 ADDITIONAL SPECIFIC SAFETY RULES 1. DO NOT operate this machine until it is completely assembled and inst alled according to the instructions. A machine incorrectly assembled can cause serious injury. 2. OBTAIN ADVICE from your supervisor, instructor, or another qualified person if you are not thoroughly familiar with the operation of this machine.
- Page 5 SCM8080 16. NEVER START THE MACHINE with the workpiece against the grinding wheel. The workpiece can be drawn into the wheel, causing damage to the machine and/or serious injury. 17. CLEAN THE MACHINE thoroughly when processing different types of workpieces (wood, steel, or aluminium). Combining wood and metal dust can create an explosion or fire hazard.
- Page 6 SCM8080 IMPORTANT INFORMATION-Electrical A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20-A time-lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-pronged grounding type plugs and matching receptacle which will accept the machine’s plug.
-
Page 7: Safety Guidelines
SCM8080 The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided–if it will not fit the outlet, have the proper outlet installed by a qualified electrician. -
Page 8: Package Contents
SCM8080 Package contents No. Description Qty. Sharpener Universal support Knife holder Wet Grinding wheel Water reservoir Bolt Flat washer Angle guide Honing compound Figure 3... -
Page 9: Key Parts Diagram
SCM8080 Description Qty. Horizontal mounts with knobs Universal support Leather stropping wheel Vertical mounts with knobs On/off switch Honing compound Angle guide Water reservoir Grinding wheel Knife holder Figure 4... - Page 10 SCM8080 Placement See Figure 5 for the minimum working 17" clearances. Remember that the sharpener has no specific front or back side and must be repositioned depending on the desired grinding/sharpening/honing action. 20" Figure 5...
- Page 11 SCM8080 Grinding Tips • Always be sure the grinding wheel is wet before grinding by having the reservoir filled and in the proper location. • Wear the proper protective clothing. Safety glasses/face shield and a dust mask should be worn at all times.
- Page 12 SCM8080 GRINDING WITH WHEEL ROTATION • DISCONNECT SHARPENER FROM POWER! • Position the machine with the ON/OFF switch facing away from you. • Attach the universal support in the horizontal ttach the universal support in the horizontamounts as shown in Figure 7.
- Page 13 SCM8080 Water Reservoir Fig. 2 Fig. 5 The wet sharpener is designed for wet grinding and should never be used without water. The mounting tabs on the reservoir serve as hooks to attach to the reservoir mounting slots. Figure 9 Fig.
- Page 14 SCM8080 Here are some tips for using the sharpener water reservoir: • Check the water level before every use and be sure the wheel is wet before you begin grinding. DO NOT use the sharpener without water. • Leaving the grinding wheel stored in water will cause damage to the wheel and create potential hazards because the wheel will become unbalanced.
-
Page 15: Operating Instructions
SCM8080 Fig. 1 Fig. 4 Sharpening The leather stropping wheel on the sharpener and the included abrasive stropping paste can be used to obtain a razor sharp edge on many tools. Before use, the stropping wheel must be properly prepared. -
Page 16: Maintenance
SCM8080 MAINTENANCE Grinding Wheels The grinding wheel should be inspected before every use. Take care in storing grinding wheels to keep them free from potential damage from moisture, from being dropped, or from having other items drop on them. Wheel Replacement To replace the grinding or stropping wheel: •... -
Page 17: Exploded View
SCM8080... -
Page 18: Parts List
SCM8080 Item Description Item Description Water tank Blade holder assy F-Support Big flat washer D4 Base assy Philips screw M6x16 Rubber foot Handle Base plate Philips screw M4x8 Motor assy Worm gear case cover Philips screw M8x35 Nut M12 Strain relife... -
Page 19: Troubleshooting
SCM8080 TROUBLE SHOOTING SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Check power source for proper Low voltage. voltage. Inspect all connections on motor Open circuit in motor Motor will not start. for loose or open connections. or loose connections. (Send for Servicing.) Blown fuse or breaker. -
Page 20: Warranty
TUCKTOOL contact us: bucktool@foxmail.com ONE-YEAR LIMITED WARRANTY Having Problems ? Give us a chance to help you before returning this product Email : bucktool@foxmail.com Skype : bucktool@foxmail.com Skype: bucktool @foxmail.com...
