Page 1: Instruction Manual
SCM4500 4 UTILITY SHARPENER " CONTACT US:BUCKTOOL@FOXMAIL.COM IMPORTANT: INSTRUCTION For your own safety, read and follow all of the Safety MANUAL Guidelines and Operating Instructions before operating this product. - Page 2 SCM4500 TABLE OF CONTENTS Specifications Safety guidelines Key parts diagram Assembly instructions Maintenance Troubleshooting Warranty SPECIFICATIONS Motor 120VAC, 60Hz , 0.7A Wheel size 4-1/2"x1/2" Wheel speed 170RPM...
- Page 3 SCM4500 GENERAL SAFETY GUIDELINES BEFORE USING THIS POWER TOOL BEFORE USING THE UTILITY SHARPENERO perating a Utility Sharpener can be dangerous if safety and common sense are ignored. The operator must be familiar with the operation of the tool. Read this manual to understand this Utility Sharpener.
- Page 4 SCM4500 9. WEAR PROPER CLOTHING. DO NOT wear loose clothing, gloves, neckties, or jewelry. These items can get caught in the machine during operations and pull the operator into the moving parts. You must wear a protective cover on your hair, if your hair is long, to prevent it from contacting any moving parts.
- Page 5 SCM4500 23. CHILDPROOF THE WORKSHOP AREA by removing switch keys, unplugging tools from the electrical receptacles, and using padlocks. 24. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF DRUGS OR ALCOHOL. 25. SECURE ALL WORK. Use clamps or jigs to secure the workpiece. This is safer than attempting to hold the workpiece with your hands.
- Page 6 SCM4500 MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG) 120 VOLT OPERATION ONLY 25’ LONG 50’ LONG 100’ LONG 150’ LONG 0 to 6 Amps 18 AWG 16 AWG 16 AWG 14 AWG 6 to 10 Amps 18 AWG 16 AWG...
-
Page 7: Specific Safety Instructions

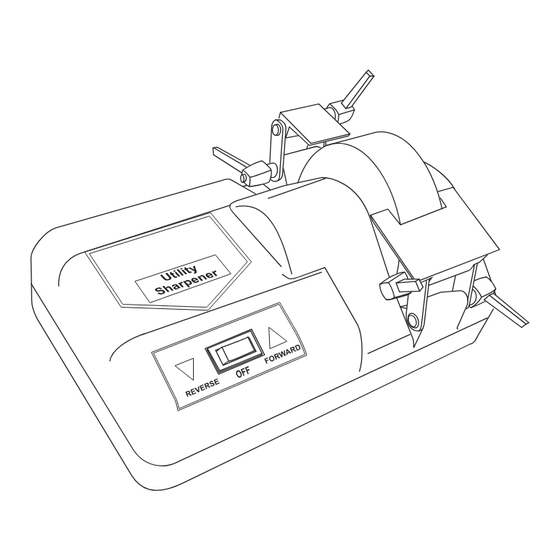

SCM4500 receptacle box. CAUTION: In all cases, make certain the electrical receptacle in question is properly grounded. If you are not sure , have a certified electrician check the electrical receptacle. SPECIFIC SAFETY INSTRUCTIONS FOR UTILITY SHARPENERS The operation of the Utility Sharpener can result in debris being thrown into your eyes, which can result in severe eye damage.ALWAYS wear Safety Goggles (that... - Page 8 SCM4500 KEY PARTS DIAGRAN No. Description Qty. Reverse-OFF-Forward control switch Adjustable rear tool rest Multi-position lock knobs Adjustable front tool rest Figure 3 The Utility Sharpener is designed with numerous features to quickly and safely sharpen various items around the house and shop. A fine grit grinding wheel is used to produce a sharp and precise cutting edge.
- Page 9 SCM4500 The Utility Sharpener will put a sharp edge on knives, scissors, and flat chisels with a minimal amount of effort and skill needed by the user. Sharp tools cut more quickly,safely and efficiently. A dull edge will require the user to apply more pressure to the workpiece, possibly causing injury to the user.
- Page 10 SCM4500 OPERATING THE UTILITY SHARPENER The Utility Sharpener is designed for sharpening knives, scissors, flat chisels, and more. ALWAYS WEAR EYE PROTECTION! Hot sparks may be produced during sharpening operations. 1. The electrical power switch must be in the OFF position.
- Page 11 SCM4500 on either of the tool rests as shown in Fig. 5. Loosen the lock knobs and adjust the tool rest until the original bevel angle of the item to be sharpened is matched. Maintain a 1/8” distance from the grinding wheel after the tool rest has been adjusted to the proper angle.
- Page 12 SCM4500 MAINTENANCE Turn the power switch “OFF” and unplug the power cord from its power source prior to any maintenance. CLEANING With the Utility Sharpener unplugged, rotate the abrasive wheel slowly and inspect for any damage. CAUTION : REPLACE the abrasive wheel if there is any damage at all.
- Page 13 SCM4500 TO PREVENT INJURY TO YOURSELF or damage to the Utility Sharpener, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. SYPROBLEM LIKELY CAUSE SOLUTION Plug power cord into electrical...
