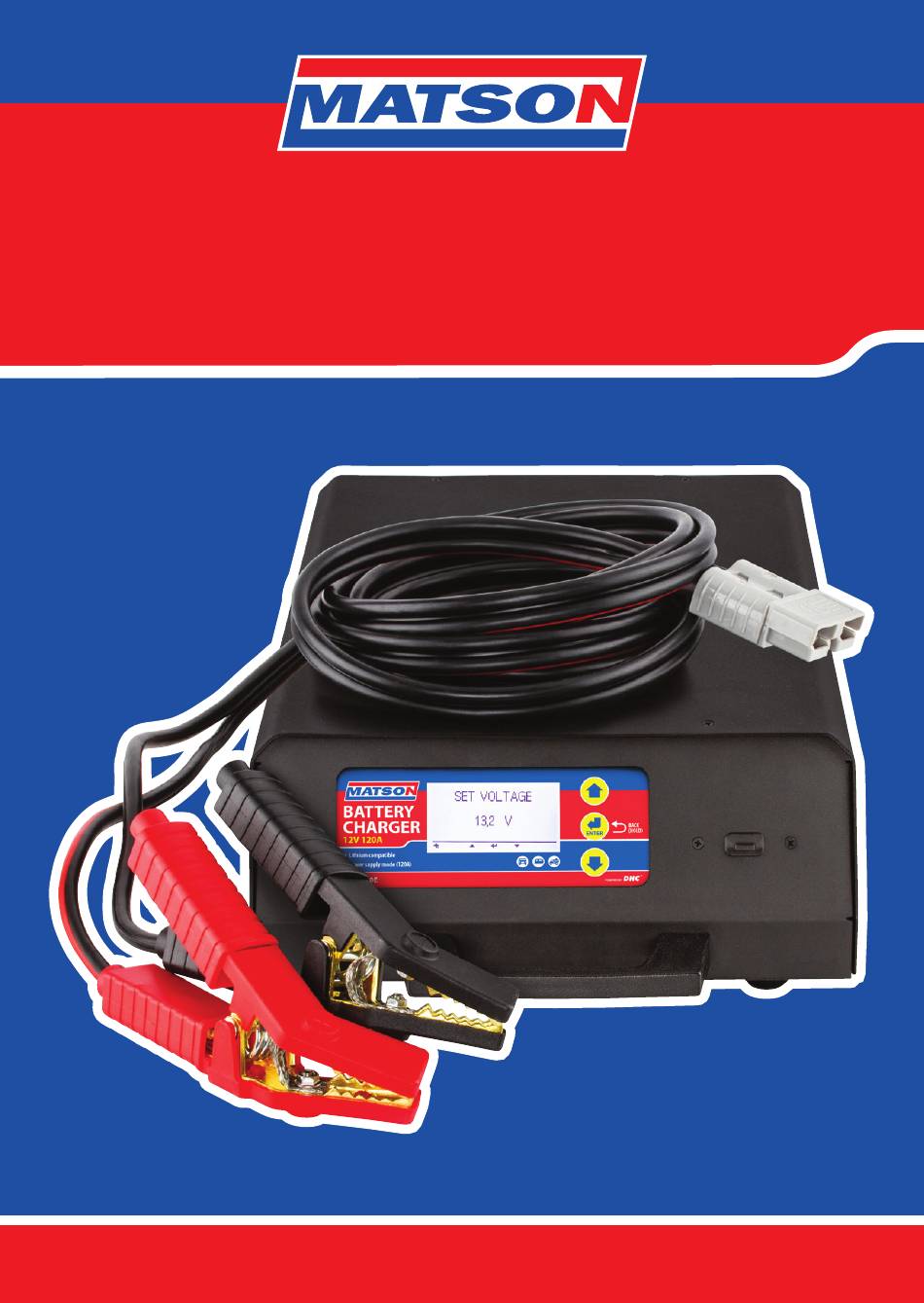

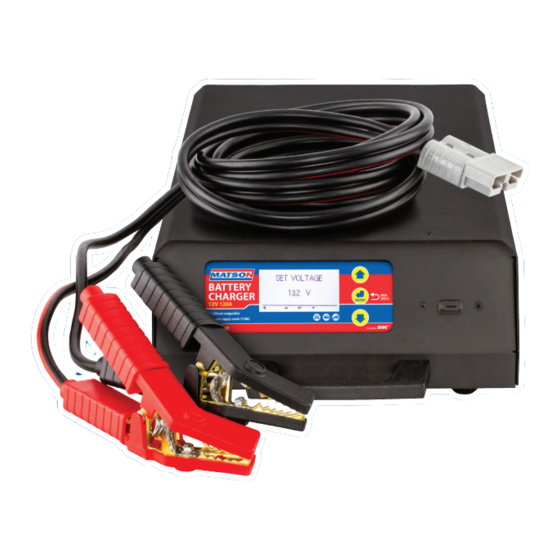

- Page 1 AE12000E BATTERY CHARGER 12V 120A MANUAL AE12000E MANUAL...
- Page 2 BATTERY CHARGER 12V 120A To avoid any personal injury, please read the safety instructions below. This manual contains important safety and operating instructions for the AE12000E Jump Starter. Consider ALL safety, warning and caution WARNING instructions carefully. WARNING 1. WARNING: Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging.
- Page 3 23. The charger will automatically return to its previous charging status when powering on only if it is shut down from showroom mode. 24. For indoor use only. 25. Disconnect the supply before making or breaking the connections to the battery. AE12000E MANUAL...
-
Page 4: Specifications
Display 2.5-inch LCD 128 x 64 370 x 254 x 110 mm Dimension (with handle) (approx. 14.5 x 10 x 4.3 inches) Wall Mount Support Operating Languages EN, FR, DE, ES, IT, PT … up to 25 languages AE12000E MANUAL... -
Page 5: Personal Precautions
3. Never allow battery acid to drip on charger when reading gravity or filling battery. 4. Do not operate charger in a closed area or restrict ventilation in any way. 5. Do not set a battery on top of charger. AE12000E MANUAL... -
Page 6: Preparing To Charge
AC cord from electric outlet. Never allow clips to touch each other. 4 Make sure the battery terminals are clean. Wire brush them if necessary. Clamp the black end (NEG, -) to the negative battery terminal. Clamp the red end (POS, +) to the positive battery terminal. AE12000E MANUAL... -
Page 7: Grounding And Ac Power Cord Connection Instructions
Do not connect the clip to the carburettor, fuel lines or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block. Connect the AC supply cord to the electrical outlet for processing the charging. AE12000E MANUAL... - Page 8 When Using The 5 Meters (Diameter: 25mm² ) Cable Set Voltage Set Max current @ operating temperature between 0- 25º C 12.5V 120A 13.0V 120A 14.0V 114A 14.5V 111A 14.8V 109A NOTE: Under the OTP function, the charger can operate at 100A and 14.8V at temperature 40°C. AE12000E MANUAL...
-
Page 9: Wall Mount Bracket Installation
Please secure the charger with wall mount brackets before using. MENU Press keys to select mode. Press “ENTER” key to confirm. MENU MENU MENU CHARGE BATTERY POWER SUPPLY SHOWROOM MENU MENU REPLACE BATTERY SETTING AE12000E MANUAL... - Page 10 CHARGING CURRENT adjust the charging current. Press key to choose ON OFF or LEAVE. FLOODED ON: Start charging the battery. 100 AH 14V > ON/OFF OFF: Stop charging the battery. 20A EXIT EXIT: Return to main menu. 10 | AE12000E MANUAL...
- Page 11 100 AH up or stop charging battery. 14V > ON/OFF 20A EXIT LITHIUM(LiFePO4) Press keys to choose EXIT and then press 100 AH “ENTER” key to return to MENU. 14 V ON/OFF 20 A > EXIT AE12000E MANUAL | 11...
-
Page 12: Power Supply Mode
> ON OFF or > LEAVE. Press “ENTER” to choose ON or OFF to start or stop SHOWROOM mode. Press keys to choose > EXIT and then press “ENTER” key to return to MENU. 12 | AE12000E MANUAL... - Page 13 To lock or unlock instruction of lock / unlock showroom mode Press: Enter will be displayed. SHOWROOM Press “ENTER” keys sequentially to unlock the showroom mode. 20A > ON/OFF Once unlocked, an unlock icon will be displayed. EXIT AE12000E MANUAL | 13...
- Page 14 > EXIT and then press “ENTER” key to return to MENU. SETTING MENU Press “ENTER” key. SETTING SETTING BACKLIGHT CONTRAST LANGUAGE Press keys to select. LCD ROTATE AUTO RESTART Press “ENTER” key to confirm. CLOCK DEVICE INFO CABLE SETTING FW UPDATE 14 | AE12000E MANUAL...
- Page 15 Press “ENTER” key to confirm. SPANISH ITALIAN PORTUGUESE LCD ROTATE Start LCD ROTATE when the device is mounted on the wall. Press keys to select ON/OFF. Press “ENTER” key to confirm. LCD ROTATE ON / OFF AE12000E MANUAL | 15...
-
Page 16: Auto Restart
M_V00.A / C_V01.B Firmware Version Press “ENTER” key to MENU. V00.A CABLE SETTING CABLE SETTING 3 METERS If the enclosed 3M or 5M cable in charger is 5 METERS changed. Please reset the correct length. CABLE CALIBRATION 16 | AE12000E MANUAL... -
Page 17: Cable Calibration
Press ENTER and keys to select START CABLE CALIBRATION After selecting START, press “ENTER” for START cable calibration. EXIT Calibration Success! CABLE CALIBRATION Press keys to select EXIT to return START to MENU. EXIT AE12000E MANUAL | 17... -
Page 18: Troubleshooting
The cables may be short circuited Check the cables or cable connections! or damaged. connection to battery. The charger is connected Battery voltage is too high. to 24V battery instead of Connect to 12V battery. 12V battery. 18 | AE12000E MANUAL... - Page 19 The battery voltage is Charge the battery first Battery voltage is too low, under 12V before entering before proceeding with please charge battery first. power supply mode. power supply mode. AE12000E MANUAL | 19...
-
Page 20: Warranty Policy
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Tridon Australia will bear costs associated with claiming legitimate warranties. Proof of expenses incurred must be submitted to Tridon Australia Pty Ltd. 20 | AE12000E MANUAL...
