Summary of Contents for matson Infinite IR61224

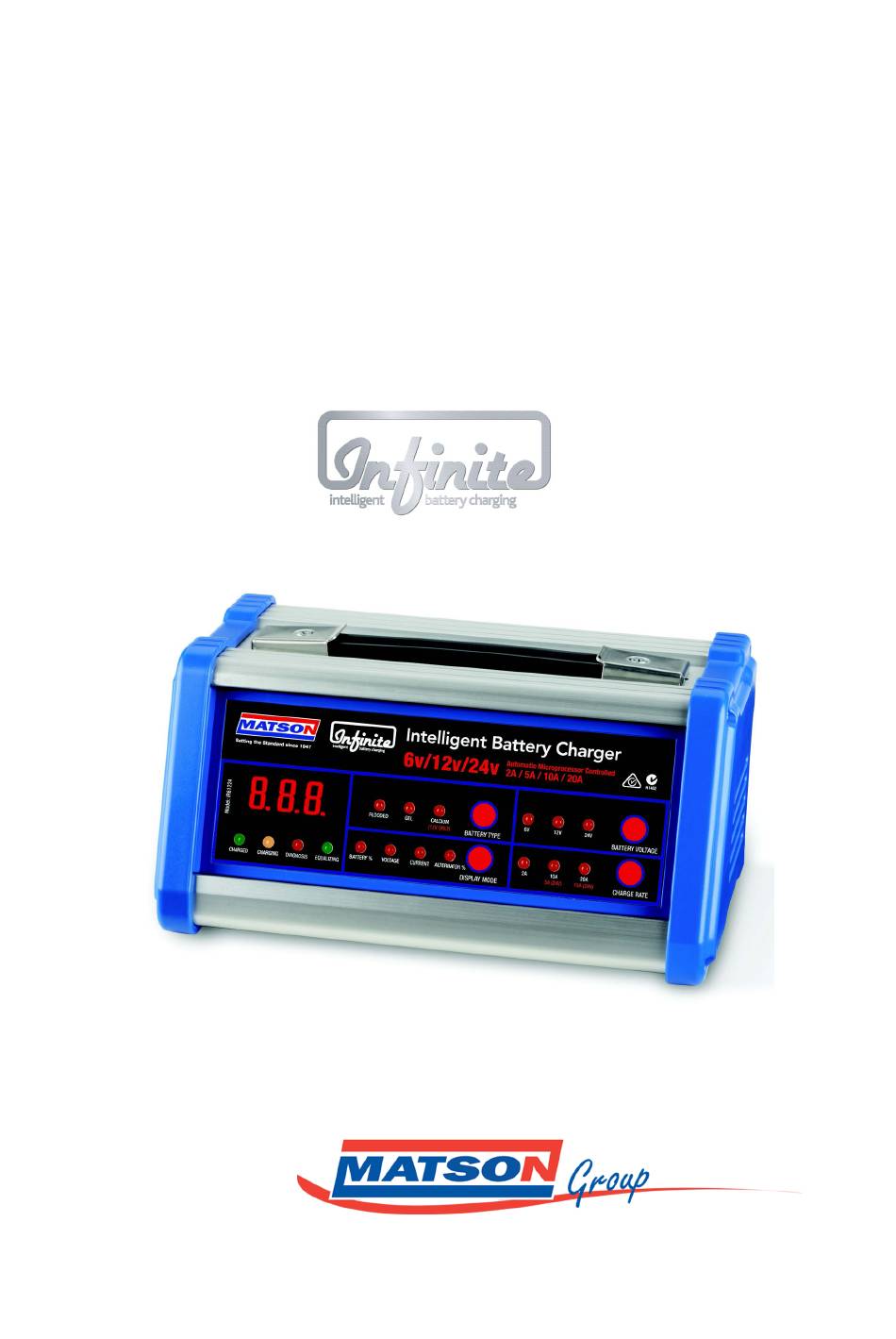

- Page 1 IR61224 BATTERY CHARGER...
-
Page 2: Revision Status
Revision Status Revision Change Topic 20150210 Document Released IR61224 | 20150210... -
Page 3: Table Of Contents
Contents Revision Status...........................2 Safety............................4 General Information........................5 Operation............................7 Error Codes..........................10 Warranty...........................11 IR61224 | 20150210... -
Page 4: Safety
Safety This manual contains important safety and operating instructions for the IR61224 Battery Charger. Read this manual carefully before using. Consider ALL safety, warning and caution instructions carefully. Warning 1. The battery charger is intended for use by adults and should not be operated by children 2. -
Page 5: General Information

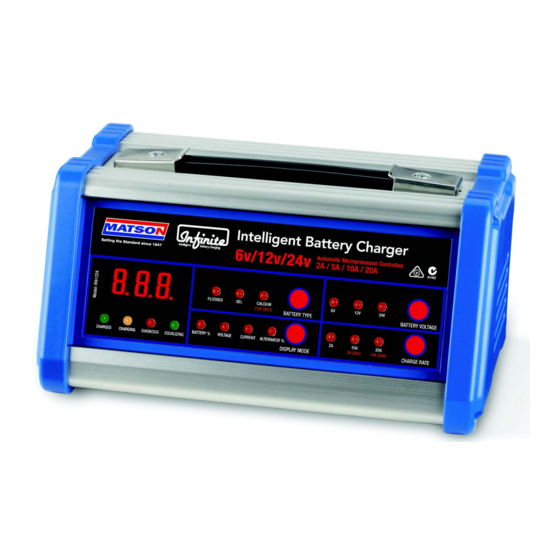

General Information Features The Matson INFINITE IR61224 is a fully automatic 7 stage battery charger. The INFINITE IR61224 charger: • Prevents the battery from overcharging and consequent damage • Can be connected to the battery indefinitely • Are programmable for different battery types including GEL, AGM, Deep Cycle, Sealed Lead Acid and Calcium batteries •... - Page 6 Model IR61224 Output Current 6/12 Volt, 2/10/20 Amp. Selectable 24 Volt, 2/5/10 Amp. Selectable Min. Start Voltage 1.5 Volt Charge Control Desulphation High Frequency Pulse Charge (DEPENDENT ON DIAGNOSIS) Soft Start 12 Volt 24 Volt Charge Rates 6 Volt • Flooded - 14.7v •...
-
Page 7: Operation
Operation Front Panel Indicators BATTERY TYPE Press to select. Selection cycles through FLOODED / GEL / CALCIUM Red LED indicates type selected BATTERY VOLTAGE Press to select. Selection cycles through 6V / 12V / 24V Red LED indicates voltage selected CHARGE RATE Press to select. - Page 8 DIAGNOSIS LED Red LED - lights when charger is turned on and stays on until clamps are connected EQUALIZING LED Green LED - lights when the charger detects less than 8 volts in the battery being charged. The charger equalizes each cell until the battery reaches a minimum charge level - approximately 2.1 volts per cell. Charging A Battery 1.
- Page 9 2. Press DISPLAY MODE to select ALTERNATOR % 3. Connect the RED DC clamp from the charger to the Positive (+) battery post and the BLACK DC clamp from the charger to the Negative (-) battery post. 4. Start the engine and rev the motor - •...
-
Page 10: Error Codes
Error Codes Troubleshooting LED / Error Code Fault / Condition Comment DIAGNOSIS LED lit Charger is diagnosing battery LED stays ON until clamps are condition connected CHARGE LED lit Battery is charging CHARGED LED lit Battery is fully charged and operating in float mode EQUALIZING LED lit Charger is equalizing the charge... -
Page 11: Warranty
Email: sales@matson.com.au www.matson.com.au Warranty Matson warrants its products to be free of defects for reasonable consumer use for a period of 12 months. Matson will repair or replace the warranted product and it will return the repaired products under warranty to the consumer at Matson’s cost. -
Page 12: Ir61224
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given to the customer in this warranty are in addition to other rights and remedies under a law in relation to the products to which this warranty applies. - Page 13 Index Alternator Function Safety - Warnings and Cautions Charging A Battery Troubleshooting Front Panel Indicators Warranty IR61224 Features IR61224 | 20150210...
