- Page 1 IR61224 BATTERY CHARGER...
-
Page 2: Table Of Contents
CONTENTS SAFETY GENERAL INFORMATION OPERATION ERROR CODES WARRANTY... -
Page 3: Safety
SAFETY IR61224 6/12/24 VOLT CHARGER This manual contains important safety and operating instructions for the IR61224 Battery Charger. Read this manual carefully before using. Consider ALL safety, warning and caution instructions carefully. Warning 1. The battery charger is intended for use by adults and should not be operated by children 2. -
Page 4: General Information

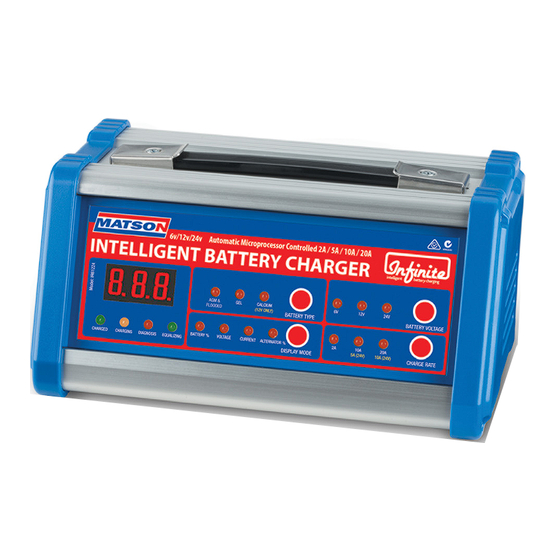

GENERAL INFORMATION FEATURES The Matson INFINITE IR61224 is a fully automatic 7 stage battery charger. The INFINITE IR61224 charger: Prevents the battery from overcharging and consequent damage Can be connected to the battery indefinitely Are programmable for different battery types including GEL, AGM, Deep Cycle, Sealed Lead Acid and Calcium batteries Has variable Voltage outputs Has a unique inbuilt diagnosis program. - Page 5 GENERAL INFORMATION SPECIFICATIONS MODEL IR61224 Charging Stages Input 240vac, 50Hz Output Voltage 6/12/24 Volt DC Selectable 6/12 Volt, 2/10/20 Amp. Selectable Output Current 24 Volt, 2/5/10 Amp. Selectable Min. Start Voltage 1.5 Volt CHARGE CONTROL Desulphation High Frequency Pulse Charge (DEPENDENT ON DIAGNOSIS)
-
Page 6: Operation
OPERATION FRONT PANEL INDICATORS BATTERY TYPE Press to select. Selection cycles through FLOODED / GEL / CALCIUM Red LED indicates type selected BATTERY VOLTAGE Press to select. Selection cycles through 6V / 12V / 24V Red LED indicates voltage selected CHARGE RATE Press to select. - Page 7 OPERATION CHARGING A BATTERY 1. Turn the charger ON by connecting it to 240VAC mains power 2. Press BATTERY TYPE to select the required battery chemistry 3. Select BATTERY VOLTAGE - 6 / 12 / 24 volts 4. Select CHARGE RATE required If charging a battery in a vehicle, ensure cables are removed from any rotating or crush hazards.
-
Page 8: Error Codes
ERROR CODES TROUBLESHOOTING LED/ERROR CODE Fault / Condition Comment DIAGNOSIS LED lit Charger is diagnosing battery condition LED stays ON until clamps are connected CHARGE LED lit Battery is charging CHARGED LED lit Battery is fully charged and operating in float mode EQUALIZING LED lit Charger is equalizing the charge across ALL battery cells Bad cells in battery... -
Page 9: Warranty
WARRANTY WARRANTY AGAINST DEFECTS PROCEDURE Warranty Policy Products developed and sold by Tridon Australia Pty Ltd come with a guarantee for the reasonable life of the product, for the purpose it is commonly used. This is in addition to the rights of the consumer under the Australian Consumer Law. To be considered for warranty please take the product with proof of purchase to the store where you purchased the product or contact Tridon Australia The warranty is given by: Tridon Australia, 21-25 Derby St, Silverwater, NSW 2128. - Page 10 77 Howick Street Launceston TAS 7250 Matson - Exclusively distributed in Australia and New Zealand by Tridon 0516-18 © Copyright TRIDON AUSTRALIA PTY. LTD. 2018 A.C.N. 001 398 698 Reproduction of this catalogue in part or full is not permitted without written approval. Illustrations in this catalogue are for identification purposes only and there may be slight variations between the illustration and actual product.
