Summary of Contents for matson AEE400

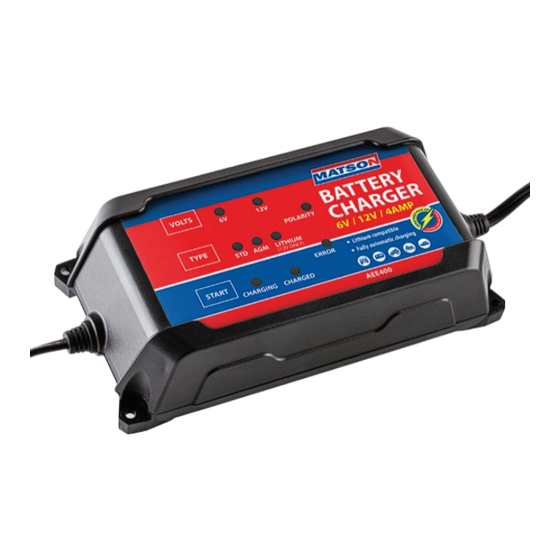

- Page 1 BATTERY CHARGER 6V / 12V / 4AMP MANUAL AEE400 MANUAL...
- Page 2 BATTERY CHARGER 6V / 12V / 4AMP To avoid any personal injury, please read the safety instructions below. This manual contains important safety and operating instructions for the AEE400 Battery Charger. Consider ALL safety, warning and caution WARNING instructions carefully. SAFETY 1.
- Page 3 13. Never use this charger in or on any boat or watercraft directly. You must remove the battery from the boat or watercraft and charge the battery at the properly installed location of this charger. 14. It is not suggested to expose the charger to moisture and should not be subjected to inclement weather. AEE400 MANUAL...
- Page 4 Do not use battery charger for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage to property. AEE400 MANUAL...
-
Page 5: Preparation For Charging
7. If the battery and terminals have a white or bluish crust on them, the charging system may be having problem. These problems should be corrected before the battery is replaced after charging. AEE400 MANUAL... - Page 6 Do not connect the clip to the carburetor, fuel lines or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block. Connect the AC supply cord to the electrical outlet for processing the charging. AEE400 MANUAL...
- Page 7 4. When disconnecting the charger, always do so in the reverse order of the connecting procedure and break the first connection while as far away from the battery as practical. NOTE: A marine battery must be removed and charged on shore. To charge it onboard requires equipment specially designed for marine use. AEE400 MANUAL...
-
Page 8: Setting Up And Operation
Plug AC power cord into an AC power source. All LEDs will light momentarily, then only the LEDs corresponding to charging settings should stay lit. The charger is in Standby Mode now. If the ERROR LED lights, disconnect it from AC power source immediately and find the cause of the defect. AEE400 MANUAL... -
Page 9: Charge A Battery
6V / 12V STD Batteries / AGM / 12V LiFep04 Protection Reverse Polarity, Over Temp., Over Current, etc Dimensions 172(L) X 89(W) X 45 (H) mm Start Voltage Operating Temperature 0~50ºC, output power is reduced automatically at high Temperatures AEE400 MANUAL... - Page 10 If the battery’s voltage is too low (<6V) to support Recovery Mode, while charging, the Battery Type LED will flash rapidly to alert the user for this condition. Once the battery’s voltage increases above 6V, Recovery Mode will again be supported, and the Battery Type LED will stop flashing. 10 | AEE400 MANUAL...
-
Page 11: Warranty Policy
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Tridon Australia will bear costs associated with claiming legitimate warranties. Proof of expenses incurred must be submitted to Tridon Australia Pty Ltd. AEE400 MANUAL | 11...
