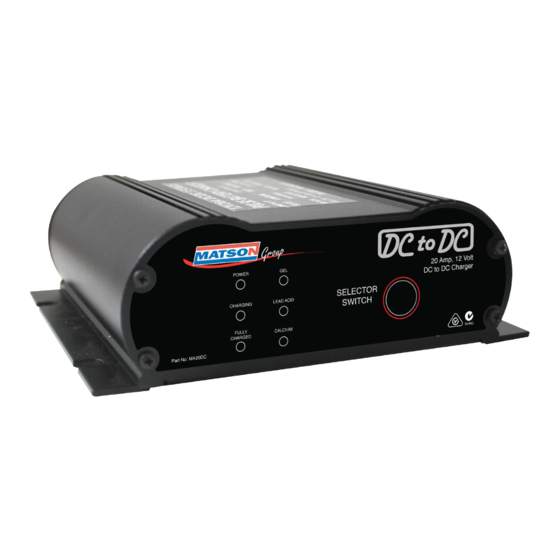

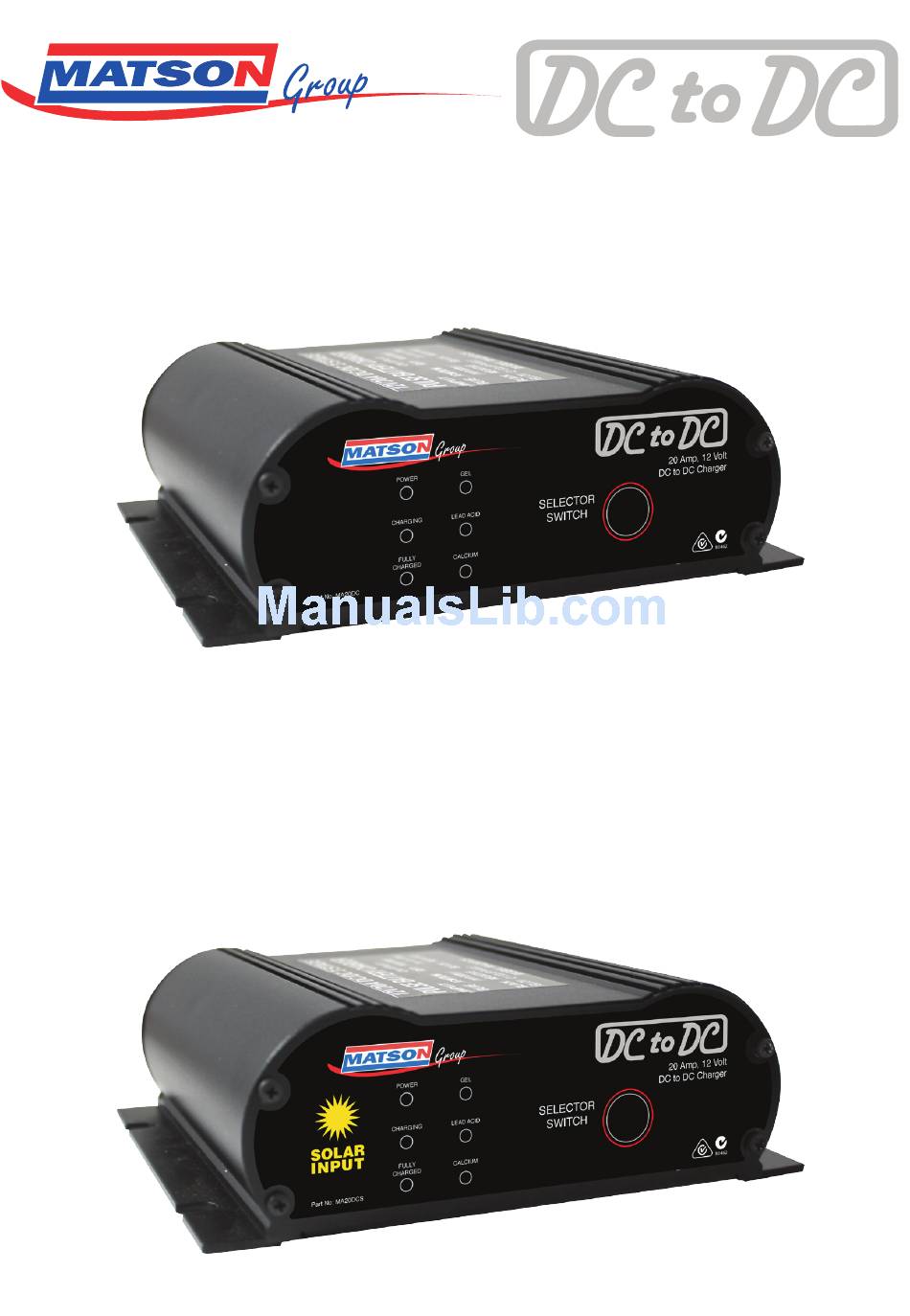

- Page 1 MA20DC 20 AMP, DC TO DC BATTERY CHARGER MA20DCS 20 AMP, DC TO DC BATTERY CHARGER WITH SOLAR INPUT...
- Page 2 FEATURES Matson MA20DC and MA20DCS • Designed to boost the low voltage found at the end of long cable lengths to a useable level so your Auxiliary battery can be recharged to 100%. • Three (3) Stage smart charging which comprises of BOOST, ABSORPTION and FLOAT ensures simple yet optimal charging.
- Page 3 • Inbuilt over charge protection. Charger will automatically reduce current (amps) as required to optimise battery charging. • The charger has been designed to recommence charging from float mode when a load is placed on the auxiliary battery. i.e. if auxiliary battery is fully charged and the charger is in float mode, the charger will recommence it’s charging cycle automatically when the auxiliary battery is used again. • Can be used with either Fixed or Variable voltage alternators (with outputs above 12.2 Volts) WARNINGS • Before connecting the charger ensure you have read the...
-
Page 4: Installation Instructions
INSTAllATIoN INSTRUCTIoNS • Install the charger in a suitable location within the vehicle, although the charger is splash resistant we recommend it to be placed in a dry area. • It is recommended that you locate the Charger no closer than 300mm and no further than 3000mm from the auxiliary battery, but it should always be closer to the auxiliary battery. -
Page 6: Operating Instructions
INSTRUCTIoNS Once correctly installed the Matson MA20DC & MA20DCS chargers are very simple. Just “set your Chemistry and forget”. Charger Display: • Red LED indicates “POWER” is on to the unit • Green LED indicates the unit is “CHARGING” the auxiliary battery. -
Page 7: Technical Specifications
TEChNICAl SpECIFICATIoNS Model No MA20DC & MA20DCS Type 3 Stage pulse charge Input 13.0v to 16.0v DC Low Voltage Cutout 12.2 Volt Output Current 20 Amp Output Voltage CALCIUM AGM/Deep Cycle/VRLA Absorption 14.3V 14.7V 14.7V Fully Charged (Float 13.3V 13.8V 13.8V... -
Page 8: Warranty Card
For full warranty details, please see www.matson.com.au Please Note: • Should you experience any warranty related issues with this charger please call Matson Warranty Department on (02) 9833 3444 between the hours of 8am - 4:00pm Monday - Friday. • Our Warranty Department will provide return instructions so please contact them before returning the charger.
