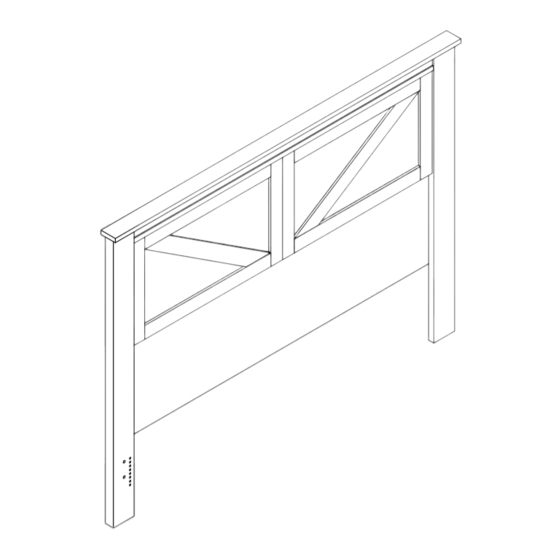

Farmington Headboard
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345749213COM00GO
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
Tough
Advertisement
Related Manuals for Ameriwood HOME 5749213COM
Summary of Contents for Ameriwood HOME 5749213COM
- Page 1 Tough Visit: www.ameriwoodhome.com Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. - Put heavy items on lower shelves or drawers.
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting. -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not actual size HEADBOARD PANEL ASSEMBLY HEADBOARD LOWER PANEL T5749213010GO T5749213020GO QTY: 1 PC QTY: 1 PC LEFT HEADBOARD POST T5749213030GO T5749213040GO QTY: 1 PC QTY: 1 PC RIGHT HEADBOARD POST T5749213050GO QTY: 1 PC ameriwoodhome.com Tube... - Page 5 Board Identification Not actual size ameriwoodhome.com Tube...
-
Page 6: Part List
Hardware Bag Reference number: 25749213COM0GO Part List Actual Size Ø8 x 20mm M8 x 30mm Ø15 x 10mm ×4 ×4 ×2 CAM LOCK CAM BOLT WOOD DOWEL TGO2100 TGO2000 TGO2900 Ø4.2 x 25mm ×16 SCREW TGO1001 No Actual Size 1/4" 1/4"... - Page 7 STEP ×2 ×4 1.1 Insert (3) into (D) and (E) as illustrated. 1.2 Attach cam bolt (1) into (B) as illustrated. ameriwoodhome.com Tube...
- Page 8 STEP ×6 2.1 Attach (A) into (D) and (E) with (4) as illustrated. ameriwoodhome.com Tube...
- Page 9 STEP ×10 3.1 Attach (B) into (D), (E) and (A) with (4) as illustrated. ameriwoodhome.com Tube...
- Page 10 STEP Quick Assembly LOCK ×4 Proper orientation of CAM LOCK 4.1 Attach (C) into (A) with (1) as illustrated. ameriwoodhome.com Tube...
- Page 11 Supplied Hardware Hardware supplied for attaching the headboard to the bed frame. Hardware suministrado para sujetar el cabecero a la cama. Matériel fourni pour fixer la tête de lit au lit. ×8 ×4 ×4 NOTE: This hardware is not needed if this headboard is assembled to the Footboard model 5748213COM.
- Page 12 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
- Page 13 Visitez: vis. ameriwoodhome.com Tube Tube Tube...
- Page 14 (2) CAM BOLT HAUT (4) VIS (6) ÉCROU Page 10 Page 11 5 Étoiles ameriwoodhome.com Tube Tube Tube...
