All WC's come with a 3/6 litre flush as standard which can be reduced to a 2.5/4.5 litre flush for the slimline cisterns

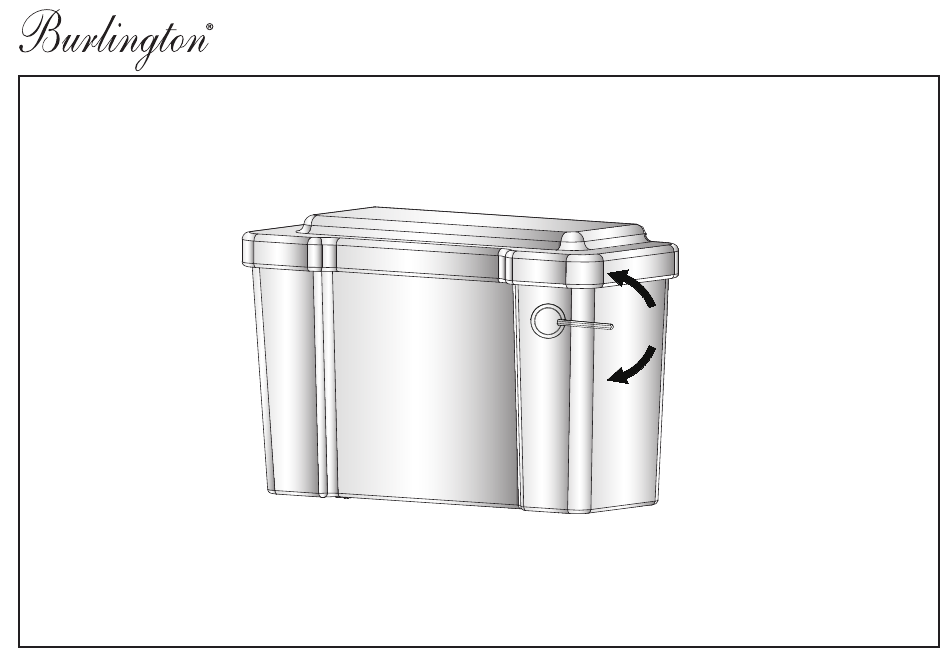

On the Close Coupled WC you must press the lever down lightly for the 6 litre flush and lightly lift the lever for the 3 litre flush
Please note that it is imperative that there are no loops or kinks in the yellow tube when installed and that the lever is not operated
with excessive force as this will damage the cable inside the tube that lifts and lowers the flush valve causing the flush to fail
beyond repair
1 - 5
Lever Flush Cistern Fittings
Arcade close coupled cistern
3 litres
6 litres
ARCSP7
B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Burlington ARCSP7
Summary of Contents for Burlington ARCSP7
- Page 1 Lever Flush Cistern Fittings ARCSP7 Arcade close coupled cistern All WC’s come with a 3/6 litre flush as standard which can be reduced to a 2.5/4.5 litre flush for the slimline cisterns On the Close Coupled WC you must press the lever down lightly for the 6 litre flush and lightly lift the lever for the 3 litre flush...
-
Page 2: Parts Supplied
Parts supplied: ● Please read these instructions carefully to avoid damage to the valves, and to ensure correct installation. Rubber Doughnut Fixing Nut ● Do not use bleach or bleach based cleaning products in Bolt the cistern, as these will cause damage to the seals. We cannot be held responsible or liable for any failure which results from the use of bleach based products. - Page 3 To increase the water level: To decrease the water level: Hold the water inlet body, use a screw driver to adjust the Hold the water inlet body, use a screw driver to adjust the Adjustment Rod clockwise (as shown). Adjustment Rod anti-clockwise (as shown). The float should be raised.
- Page 4 Flush Valve Installation And Problem Solving 1: Flush Valve scale and adjustment setting Note: The Flush Valve is preset for 6L full flush and 3L half flush. The diagram “A” below indicates the correct setting for 6L full flush and 3L half flush. The diagram “B”...
- Page 5 Close Coupled Cistern & Flush Level Installation 1: Install Close Coupled Cistern To Pan * Please ensure the flush cone is in position before installation. 2: Install Lever Insert the box and tighten the nut. * Raise the lever so that it fits into the flush box in the correct position.
