Burlington B7ES Quick Start Manual

Roll top basin stand

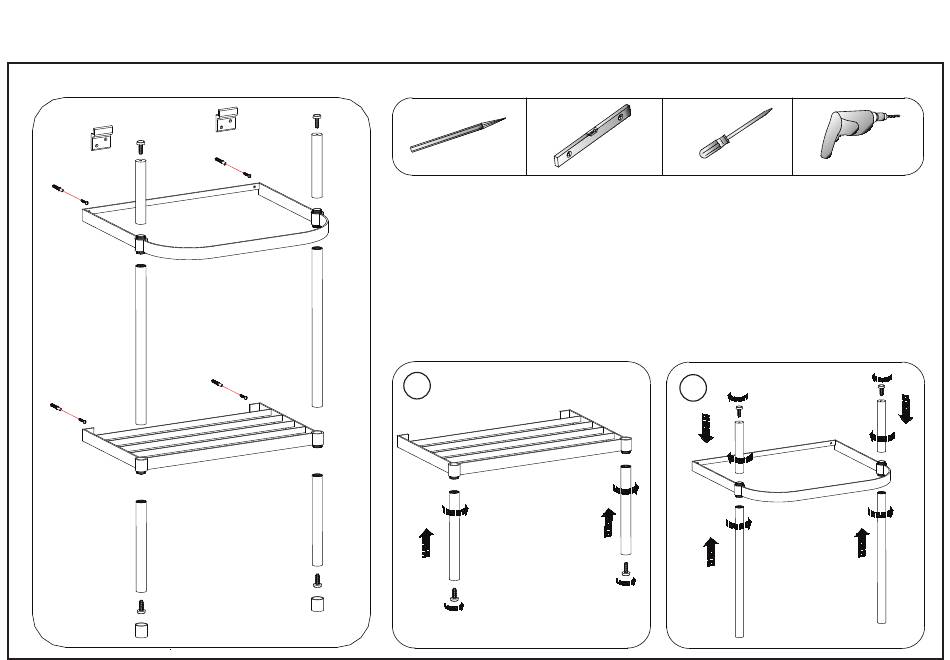

Parts supplied:

• Please unwrap and check it carefully to ensure it has not been damaged in handling or transport.

• Please check that all parts have been supplied.

• Assemble basin stand on a mat to protect against scratch the surface.

• Installation should be completed by a suitably competent person.

• The wall fixings supplied may not be suitable for your installation. You may need to source alternatives depending

on the material and strength of the wall you are fixing to.

• Please dispose of packaging in a responsible manner.

Clean with a damp cloth and washing up liquid or other mild detergent. Do not use strong detergents or cleaners

containing abrasives which may scratch the surface.

1 - 2

Roll Top Basin Stand

B7ES

B8ES

B9ES

B10ES

Ø8mm

Table of Contents

Do you have a question about the B7ES and is the answer not in the manual?

Page 1 Roll Top Basin Stand B7ES Roll Top Basin Stand B8ES Roll Top Basin Stand B9ES Roll Top Basin Stand B10ES Parts supplied: Tools required: Ø8mm Important • Please unwrap and check it carefully to ensure it has not been damaged in handling or transport.
Page 2 Ø8mm For the height requirement, if necessary the pipes can be cut at this end. Place the basin in position, check for level. Place the basin in position ensuring that it is level. After level, position the basin bracket against the wall, to The basin must be fixed to the wall using the support the basin weight (see diagram below), mark the supplied basin brackets or other appropriate method.
