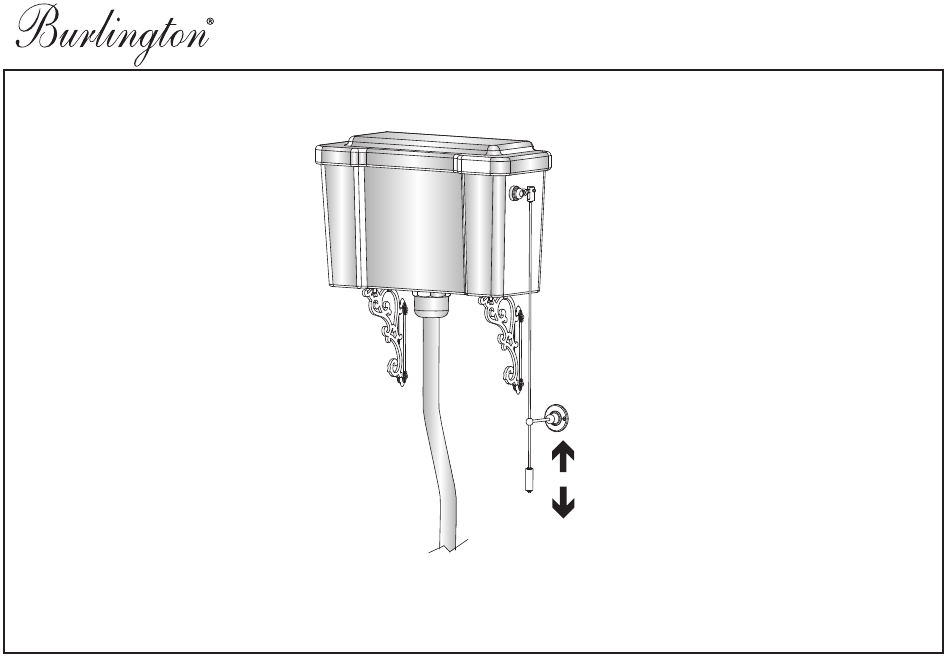

On the High Level WC you must lightly pull the rod down for the 6 litre flush and lightly push the rod up for the 3 litre flush
Please note that it is imperative that there are no loops or kinks in the yellow tube when installed and that the lever is not
operated with excessive force as this will damage the cable inside the tube that lifts and lowers the flush valve causing the
flush to fail beyond repair
3 litres
6 litres
1 - 5
High Level Dual Flush SP7
E
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Burlington SP7
Summary of Contents for Burlington SP7
- Page 1 High Level Dual Flush SP7 On the High Level WC you must lightly pull the rod down for the 6 litre flush and lightly push the rod up for the 3 litre flush 3 litres 6 litres Please note that it is imperative that there are no loops or kinks in the yellow tube when installed and that the lever is not...
- Page 2 Parts supplied: Flush Cone ● Please read these instructions carefully to avoid damage to the valves, and to ensure correct installation. ● Do not use bleach or bleach based cleaning products in Plastic Lever Washer the cistern, as these will cause damage to the seals. We cannot be held responsible or liable for any failure Cone which results from the use of bleach based products.
- Page 3 "L" Adjustment the rod: A: By adjusting clockwise the water level rises and flush volume increases. B: By adjusting anti-clockwise the water level falls and the flush volume decreases. L (mm) L (mm) Item 6L full flush / 3L half flush 4.5L full flush / 2.6L half flush Tighten the nut, connect the water supply to the cistern.
- Page 4 Flush Valve Installation And Problem Solving 1: Flush Valve scale and adjustment setting The below diagram is for reference only. In this sample, 1 is set to 2.5, 2 is set to 5, 3 is set to 1.5 Note: The flush valve can be adjusted to suit the paticular cistern, please refer to below tables for the settings. For adjustment method, please refer to the adjustment setting on right side.
- Page 5 Flush Lever Installation 1: Install Flush Lever Onto Cistern * The fixing nut should be tightened as much as possible to avoid the cistern lever working loose during operation. 2: Install Lever To Flush Lever box Insert the box and tighten the nut.
