Tools required:
Parts supplied:
seat
1
Place the seat in the final position. Mark the fixing hole positions
through the pan holes with a pencil on the underside the seat.
1x
back board
fixing bolt
1x
2
Turn the seat over, and place on a protective mat.
Drill holes (recommended depth 15mm) in the marked
positions using the Ø11mm drill bit.

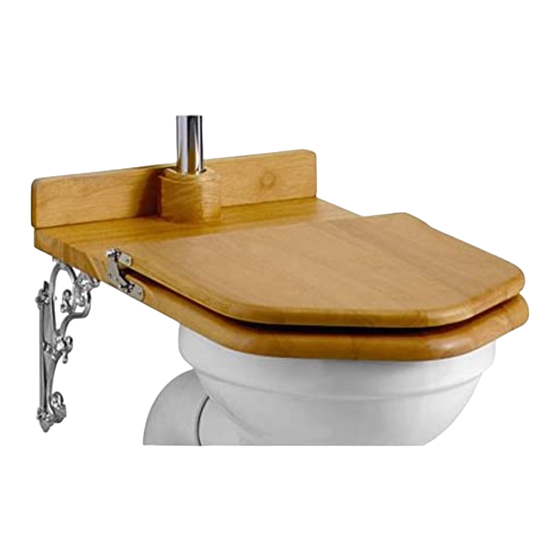

Full Traditional High Level Golden Oak WC seat including Medium Ornate Brackets - Chrome
Full Traditional High Level Mahogany WC seat including Medium Ornate Brackets
Full Traditional Low Level Golden Oak WC seat including Medium Ornate Brackets - Chrome
Full Traditional Low Level Mahogany WC seat including Medium Ornate Brackets
8mm
ornate
bracket
allen key
1x
2x
Ø11mm
1 - 2
Ø6mm
Ø11mm
ST4.2*12.8mm
Ø4.2*38mm
screw
screw
8x
2x
3
Fix the plugs supplied into the drilled holes using the
allen key.
S14
- Chrome
S15
S19
- Chrome
S20
rawl plug
8x
8x
C
