- Page 2 Avon Thermostatic Exposed Shower Valve Single Outlet AF1S with Fixed Shower Arm Options: Burlington has 2 different style handles for your selection, when using these additional handles the indices will need to be utilised from the original handles. Anglesey Birkenhead...
- Page 3 Dimension G1/2'' 236.4 136.5 Parts Identification MAIN OUTLET (SHOWER-FIXED HEAD) RAWL WATER FLOW PLUG CONTROL HANDLE FLOW CONTROL CARTRIDGE CARTRIDGE PLATE COLD INLET SPRING WASHER FLAT WASHER SCREW FIXING COVER METAL BLOCK CHECK PLATE RETAINING VALVE RING HOT INLET FIXING SCREW RETAINING SLEEVE...

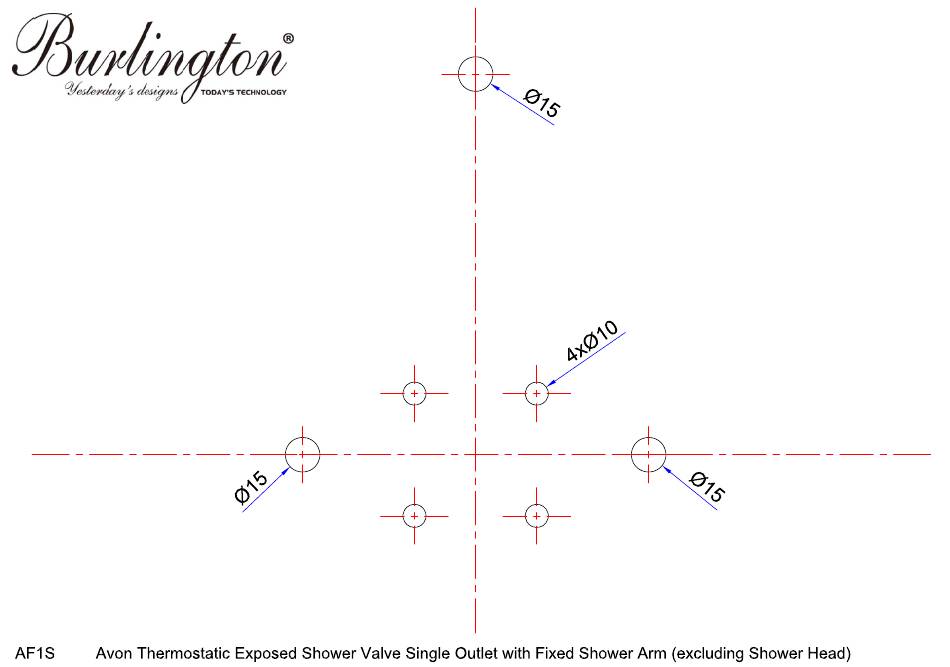

- Page 4 Installation OUTLET PIPE WALL OUTLET PIPE COLD INLET INLET PIPES HOT INLET FIXING COVER RETAINING PLATE RING SCREW WALL INLET PIPE The valve should be installed in accordance with the water bye-laws. For further details refer to the latest copy of Water Bye-laws guide or your local water authority.
- Page 5 Operation 1. Turn the water flow control handle to increase/decrease WATER FLOW the water flow and turn on/off. CONTROL 2. Turn the temperature control handle to increase/decrease the water temperature. 3. The temperature control knob is pre-set the auto stop at 42°C to avoid scalding.
- Page 6 METAL BLOCK CARTRIDGE CLAMP NUT CERAMIC RING PLASTIC BLOCK METAL RING CARTRIDGE Use part A to loosen/tighten the cartridge clamp nut. CARTRIDGE LOCATION LUG CARTRIDGE Commissioning & Annual Test The installation of thermostatic mixing valves must comply with the requirement of the Water Supply (Water Fittings) Regulations 1999. TMV2 approve valve must be tested once a year, to check if it is out of the original maximum temperature set.
