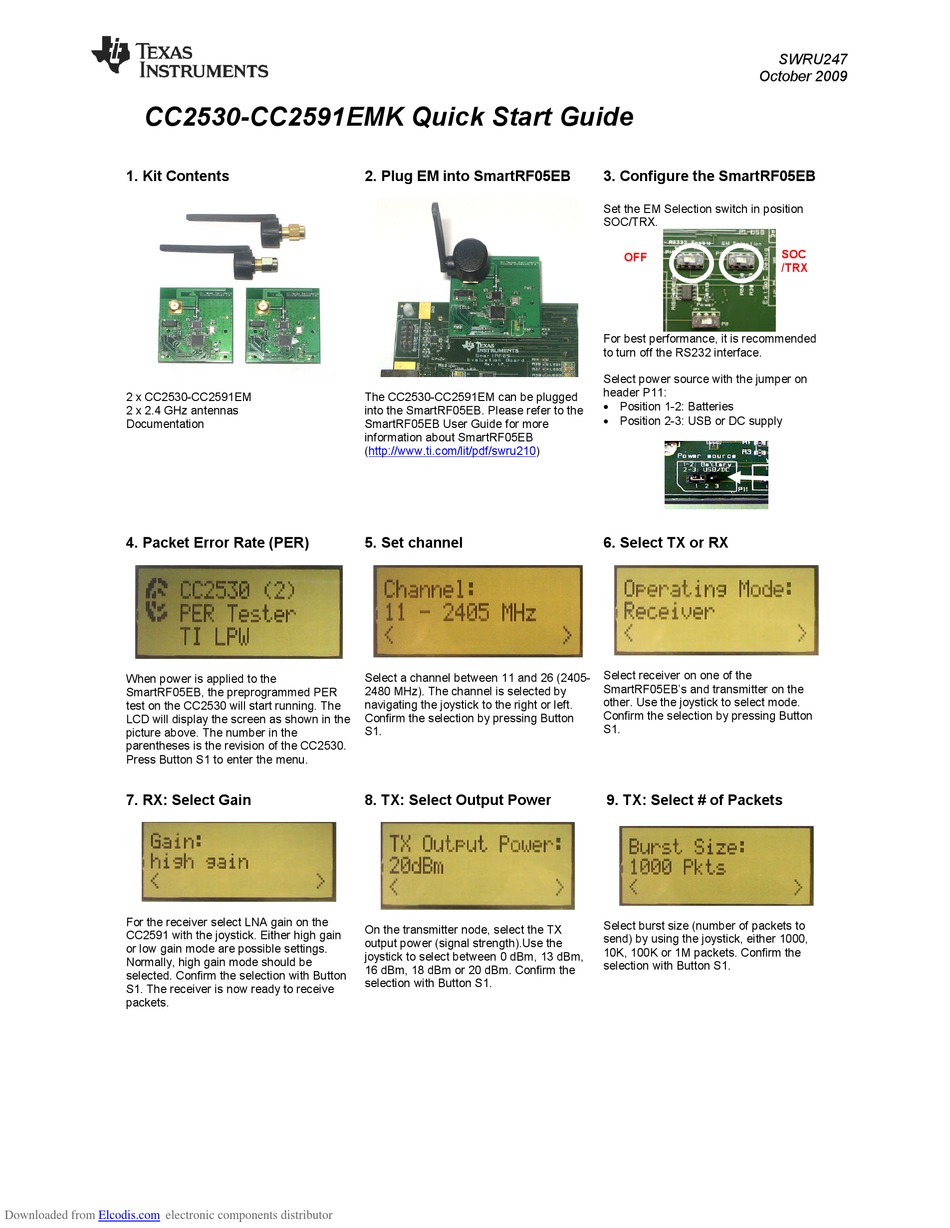

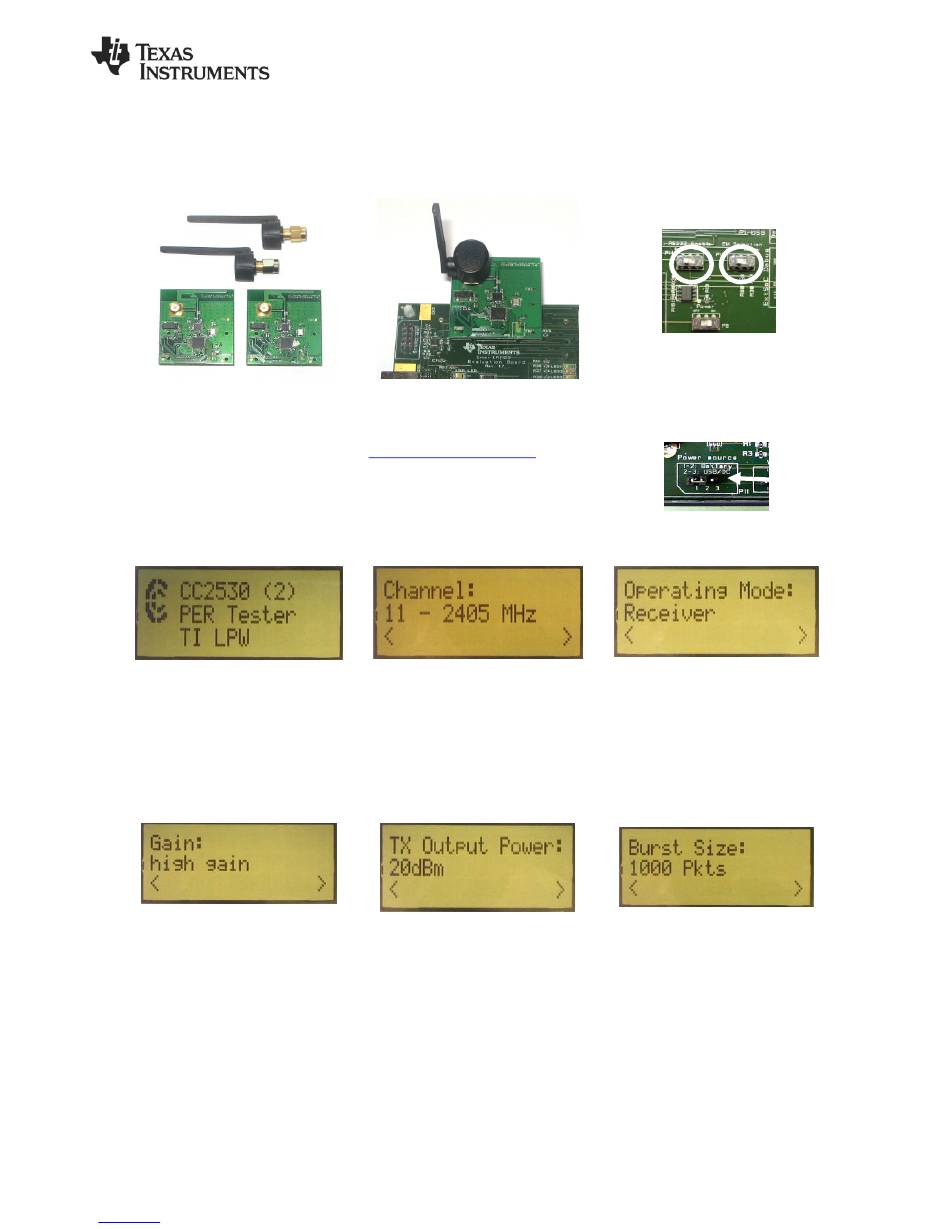

CC2530-CC2591EMK Quick Start Guide

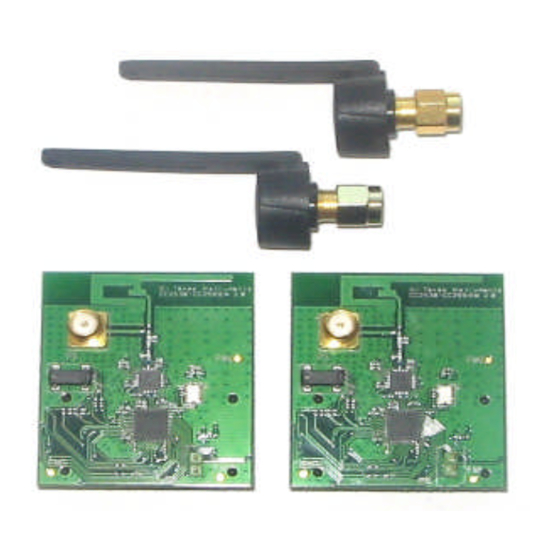

1. Kit Contents
2 x CC2530-CC2591EM
2 x 2.4 GHz antennas
Documentation
4. Packet Error Rate (PER)
When power is applied to the
SmartRF05EB, the preprogrammed PER
test on the CC2530 will start running. The
LCD will display the screen as shown in the
picture above. The number in the
parentheses is the revision of the CC2530.
Press Button S1 to enter the menu.
7. RX: Select Gain
For the receiver select LNA gain on the
CC2591 with the joystick. Either high gain
or low gain mode are possible settings.
Normally, high gain mode should be
selected. Confirm the selection with Button
S1. The receiver is now ready to receive
packets.
Downloaded from Elcodis.com electronic components distributor
2. Plug EM into SmartRF05EB
The CC2530-CC2591EM can be plugged
into the SmartRF05EB. Please refer to the
SmartRF05EB User Guide for more
information about SmartRF05EB
(http://www.ti.com/lit/pdf/swru210)
5. Set channel
Select a channel between 11 and 26 (2405-
2480 MHz). The channel is selected by
navigating the joystick to the right or left.
Confirm the selection by pressing Button
S1.
8. TX: Select Output Power
On the transmitter node, select the TX
output power (signal strength).Use the
joystick to select between 0 dBm, 13 dBm,
16 dBm, 18 dBm or 20 dBm. Confirm the
selection with Button S1.
SWRU247
October 2009
3. Configure the SmartRF05EB
Set the EM Selection switch in position
SOC/TRX.
SOC
OFF
/TRX
For best performance, it is recommended
to turn off the RS232 interface.
Select power source with the jumper on
header P11:
 Position 1-2: Batteries
 Position 2-3: USB or DC supply
6. Select TX or RX
Select receiver on one of the
SmartRF05EB's and transmitter on the
other. Use the joystick to select mode.
Confirm the selection by pressing Button
S1.
9. TX: Select # of Packets
Select burst size (number of packets to
send) by using the joystick, either 1000,
10K, 100K or 1M packets. Confirm the
selection with Button S1.
