CAUTION: Exhaust system can be extremely hot.
Let motorcycle cool down before
beginning installation. Always wear
hand and eye protection and take
precautionary measures to avoid
injury.
WARNING: Always properly support vehicle with
a stand and/or lift when servicing or
performing any work. Unstable
vehicles may present dangerous
conditions and may cause property
damage and/or personal injury.
NOTE:
Read through all instructions before
beginning installation.
Removal
1. Loosen muffler heatshield clamp located behind
the front section of the muffler heatshield.
2. Remove the muffler heatshield bolt and remove
muffler heatshield by sliding toward the front.
3. Loosen the muffler exhaust clamp and while
securely supporting the stock muffler, remove
the muffler mount bolt. Carefully remove the
stock muffler assembly.
Note: The stock exhaust gasket will not be
re-used with the Yoshimura slip-on.
Installation

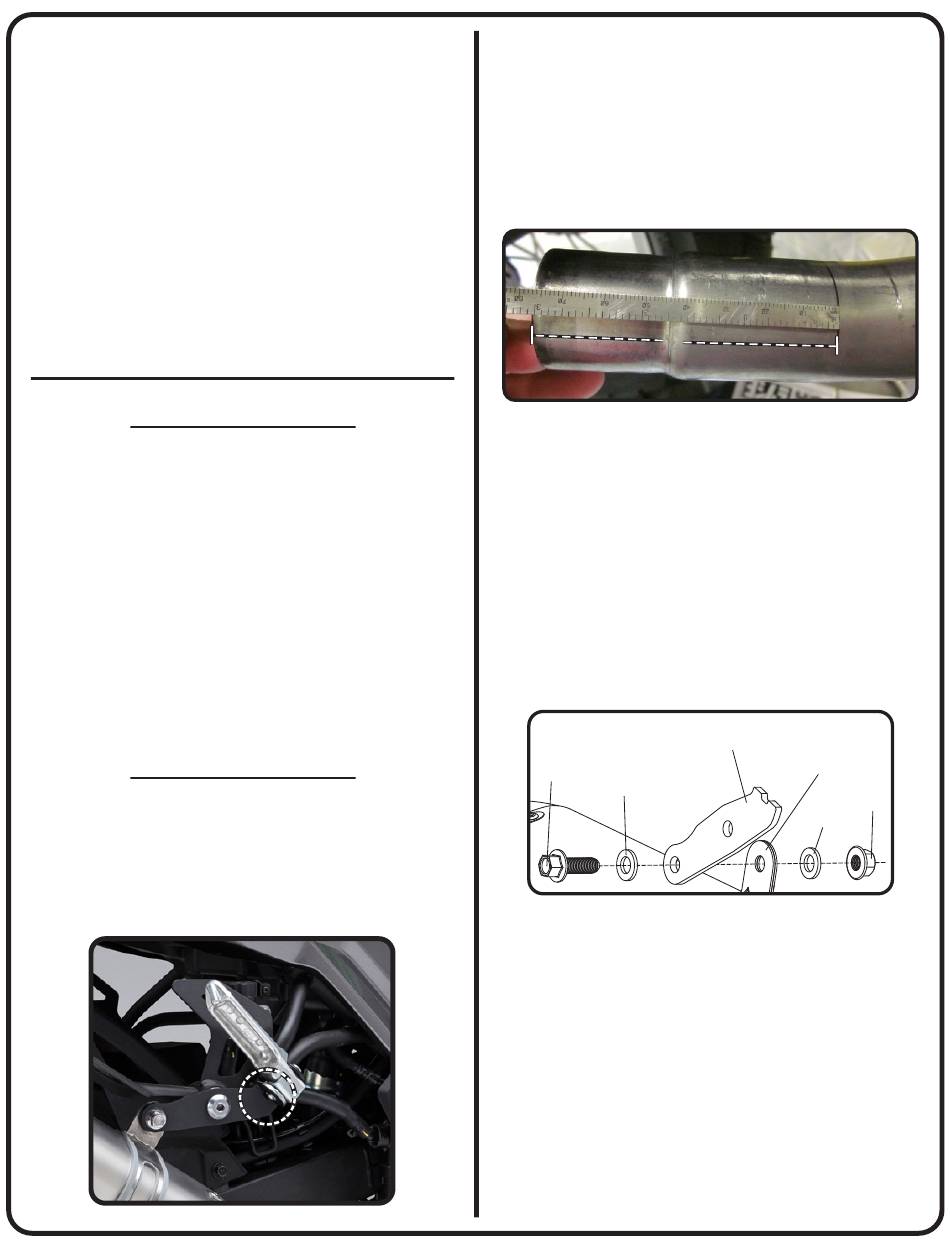

1. Install (No. 11) 14360-MBKT, muffler bracket to
the frontside of the stock muffler mount using the
stock muffler mount bolt and nut. Torque to
factory specification.
Note: The top of the muffler bracket must rest
against the bottom of the footpeg bracket.
2. Slide (No. 6) 22055, exhaust clamp over (No. 1)
14360-435, tailpipe inlet. Do not torque at this
time.
3. Install (No. 1) 14360-435, tailpipe inlet over stock
header outlet.
Note: Slide tailpipe approximately 3" over the
stock header outlet.
3"
4. Install (No. 2) muffler, over (No. 1) 14360-435,
tailpipe outlet.
5. Install (No. 4) HT SHLDR77, muffler clamp heat
insulator onto (No. 3) YM7M-MPCAX, muffler
clamp. Trim excess muffler clamp heat insulator if
necessary.
6. Slide (No. 3) YM7M-MPCAX, muffler clamp over
(No. 2) muffler and align muffler clamp to the
backside of (No. 11) 14360-MBKT, muffler
bracket. Secure using (No. 8) M10X30H, 10mm
bolt, (No. 7) 10X20WSH, washers, and (No. 10)
10MMFNUT, flange nut as shown.
8
7
7. Torque (No. 6) 22055, exhaust clamp to 8.5 Nm
(0.86 kg-m, 6 ft-lb).
8. Install (No. 5) RACE-SPX-1, small exhaust
springs between muffler and tailpipe using
ST-200, spring puller tool supplied in the kit.
9. Install (No. 12) 14360-HS, heatshield onto (No. 1)
14360-435, tailpipe using (No. 9) RC116HSB,
heatshield bolts.
11
3
10
7
3
