5420 DANIELS STREET STE A, CHINO CA 91710 · (800) 634-9166 · (909) 628-4722 · FAX (909) 591-2198
K awasaki

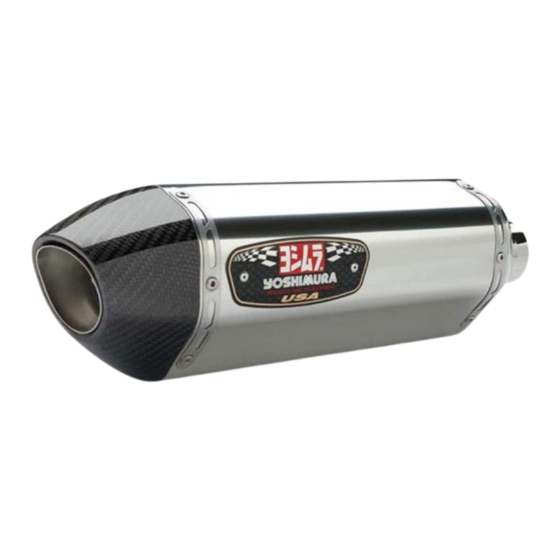

R77 Stainless Steel Slip-On
All Street Series systems are:
• Slip-on/Bolt-on applications that do not require tampering with the vehicle's emissions control system.
• CARB/EPA tail-pipe emissions compliant.
• Marked with appropriate EPA noise labels.
• Not tested for EPA new vehicle noise compliance.
You must know how to remove and replace your stock exhaust in order to install this product
otherwise have it installed by a professional mechanic. Keep all stock parts from your existing
system as some components may be necessary to install your new Yoshimura exhaust depending
on the application. Read through all instructions before beginning installation. Exhaust system can
be extremely hot. Let motorcycle cool down before beginning installation. Always wear hand and
eye protection and take precautionary measures to avoid injury.
NOTE: IN THE STATE OF CALIFORNIA, IT IS ILLEGAL TO MODIFY THE EMISSION CONTROL SYSTEM, WHICH INCLUDES THE CARBURETORS OF ANY VEHICLE.
RESEARCH&DEVELOPMENT OF AMERICA, INC.
WWW.YOSHIMURA-RD.COM
Street Series
Qualified Manufacturer Declared "Replacement Part "
2017~2023
14360BJ520
Works Finish
Versys-X 300
(SS/CF)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yoshimura Street 14360BJ520
Summary of Contents for Yoshimura Street 14360BJ520
- Page 1 Keep all stock parts from your existing system as some components may be necessary to install your new Yoshimura exhaust depending on the application. Read through all instructions before beginning installation. Exhaust system can be extremely hot.
-
Page 2: Assembly Diagram
Assembly Diagram Item Description Qty. 14360-435 Yoshimura Tailpipe SRR77M12D Yoshimura Muffler Assembly YM7M-MPCAX Muffler Clamp HT SHLDR77 Muffler Clamp Insulator RACE-SPX-1 Small Exhaust Spring 22055 Exhaust Clamp 10X20WSH 10mm Washer M10X30H 10mm x 30mm Flanged Hex Head Bolt RC116HSB 6mm x 8mm Heatshield Screw... -
Page 3: Installation
Secure using (No. 8) M10X30H, 10mm Note: The stock exhaust gasket will not be bolt, (No. 7) 10X20WSH, washers, and (No. 10) re-used with the Yoshimura slip-on. 10MMFNUT, flange nut as shown. Installation 1. Install (No. 11) 14360-MBKT, muffler bracket to the frontside of the stock muffler mount using the stock muffler mount bolt and nut. - Page 4 If any problem is found, please carefully follow through the installation steps again. If problem still persists, please call Yoshimura Tech Department at (800) 634-9166 / in CA (909) 628-4722. 11. It is recommended that the muffler and tailpipe be wiped down with rubbing alcohol to remove oil and fingerprints.
-
Page 5: Exhaust System Maintenance
Dear Yoshimura Customer, Congratulations and thank you for purchasing a Yoshimura Exhaust System. Over six decades of experience in research and development, state of the art machinery, materials and craftsmanship of the highest quality all come together in a product of exceptional quality and performance—in other words, this is the best thing you can put on your bike. - Page 6 When you are performing periodic maintenance on your vehicle (like a tire change, or an oil change) you can remove your Yoshimura muffler from the vehicle and weigh it again.
- Page 7 (found on header and tail-pipe components). 6. Also, feel free to ask through online e-mail at sales@yoshimura-rd.com, or fax your question/problems to (909) 591- 2198. To obtain technical information directly from Yoshimura, call (909) 628-4722.
