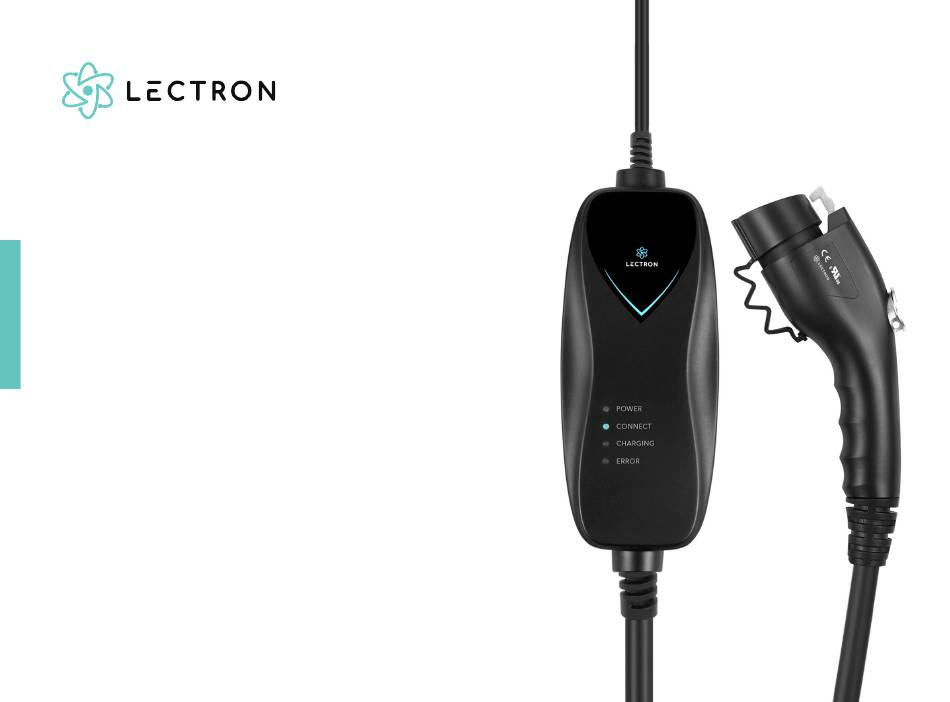

- Page 1 1 5 A M P C H A R G E R C O M P A T I B L E W I T H J 1 7 7 2 Portable EV Charger (WiFi Version) U S E R M A N U A L...
-
Page 2: Table Of Contents
C O N T E N T S What’s Included ................................Safety Instructions ..............................Adjusting Charging Current ..........................LED Status Indicators ............................... Access Bluetooth ................................. Accessing the lectron app ........................... Installation Guide ................................ Charging Your Vehicle ............................. Troubleshooting ................................Specifications ................................. Get More Support ............................... -
Page 3: What's Included

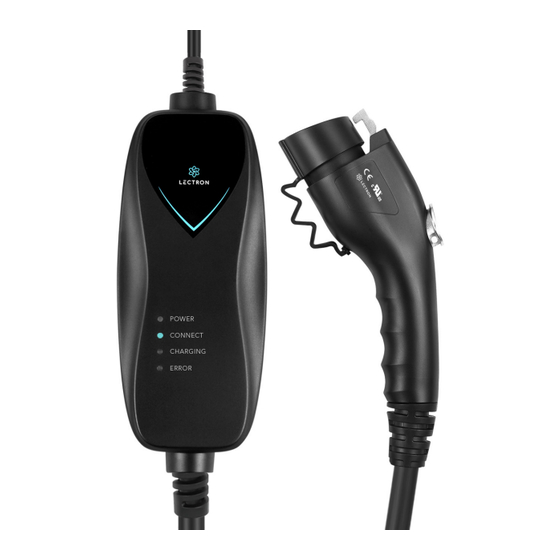

15 Amp Portable EV Charger Compatible with Tesla 15 Amp portable EV charger Charging handle SAE J1772 POWER CONNECT CHARGING ERROR C O M P A T A B I L I T Y NEMA 5-15 SAE J1772 (120 V) -
Page 4: Safety Instructions
DO NOT ATTEMPT TO REPAIR THE CABLE YOURSELF. For assistance, contact Customer all local codes. If there are conflicts between local codes Service at: contact@ev-lectron.com and the NEC, local codes shall take precedence. • This product must be grounded. In case of a malfunction •... -
Page 5: Adjusting Charging Current
15A Portable Charger using the Lectron App: 1. Ensure that the charger is powered on. Charging current can only be adjusted through the Lectron App when the device is active. 2. Download the Lectron App for detailed control of your 15A Portable Charger (refer to page 8: “Accessing the... -
Page 6: Led Status Indicators
L E D S T A T U S I N D I C A T O R S Status indications are displayed. F U N C T I O N & S T A T U S I N D I C A T I O N P O R T A B L E E V D I A G R A M L E D C O L O R F U N C T I O N... -
Page 7: Access Bluetooth
A C C E S S B L U E T O O T H 1. Enable Bluetooth Permissions 2. Additional Steps for Android Ensure that Bluetooth permissions are enabled on If you are using an Android device, please also enable your Apple or Android device by following these steps: “Nearby Devices”... -
Page 8: Accessing The Lectron App
A C C E S S I N G T H E L E C T R O N A P P 1. Scan the first QR code with your mobile device or tablet to download and access the Lectron App. 2. Download the Lectron App 3. Register using your email, 4. - Page 9 5. Set your login 6. Access the Lectron 7. Tap “My chargers”. 8. Tap “Add Charger” on the password. App homescreen. app and select 15A Portable Charger when prompted. Make sure the 15A Portable Charger is powered on & your phone’s Bluetooth is enabled.
-
Page 10: Installation Guide
I N S T A L L A T I O N C H A R G I N G Y O U R G U I D E V E H I C L E Important: Prior to charging, ensure your vehicle is parked Insert the screw into the wall then hang up the device. - Page 11 3. Plug the charging handle into your vehicle’s charging 5. When your vehicle is fully charged, the Charging outlet until it clicks. Once latched, the charging handle Indicator light will stay solid. Your vehicle has a will not disengage until you press the release button. “dashboard gauge”, which also shows if your vehicle is fully charged.
-
Page 12: Troubleshooting
1.Inspect the charger module for overheating: a. Carefully unplug the charger module from the wall outlet and allow it to cool. Above the temperature limit. b. If the problem continues, contact Lectron Customer Support at contact@ev-lectron.com for assistance. Cases: 1. Temperature is too high. The charger will restart charging when it cools down. -
Page 13: Specifications
50 / 60 Hz Cable length: 16 ft Plug: NEMA 5-15 EV connector: SAE J1772 Dimensions: 8.1 x 3.2 x 1.6 in (20.8 x 8.2 x 4.23 cm) Weight: 5.3 lb (2.4 kg) Operating temperature: -22 °F to 122 °F (-30 °C to 50 °C) -
Page 14: Get More Support
G E T M O R E S U P P O R T Need assistance? Scan the QR code below or email us at contact@ev-lectron.com www.ev-lectron.com Made in China...
