Larson Electronics IND-EV-SS-48-1L-UVC-V3-MS Instruction Manual

40W Industrial UVC Corner Mount Fluorescent Fixture
(1) 4' UV Lamp - Shatter Proof Bulbs - Surface Mount - Ideal for Elevator Use -
Thank you for your purchase of the Larson Electronics IND-EV-SS-48-1L-UVC-V3-MS Fluorescent Fixture.
EPA Reg. No 98409-1
EPA Est. No. 98409-TX-1
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE
NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR
SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION
SHEET, CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.
WARNING: ULTRAVIOLET LIGHT IS HARMFUL TO EYES AND SKIN. DO NOT STARE DIRECTLY INTO THE
ULTRAVIOLET BEAM WITHOUT WEARING PROTECTIVE GEAR TO PROTECT EYES FROM LONG TERM DAMAGE.
UNPLUG LAMP BEFORE SERVICING.
The Larson Electronics IND-EV-SS-48-1L-UVC-V3-MS Corner Mount UV Fluorescent Fixture provides continuous UVC illumination at a
45° angle to the ground which is ideal for use in elevators. This 40-watt unit features one, 4-foot UV fluorescent lamp with shatterproof
coating, housed in a 304 stainless steel housing. The luminary caters to corner surface mounting, operates on 120-277 V AC, 50/60 Hz,
and is equipped with a motion sensor. The IND-EV-SS-48-1L-UVC-V3-MS runs continuously as long as it has power and only shuts off
when it detects the movement of passengers. For best results, combine 2-3 of these fixtures inside each elevator car.

Mounting

The IND-EV-SS-48-1L-UVC-V3-MS features a corner surface mounting system that allows
the beam to project at a 45° towards the ground. Operators may use two L-bracket
mounting brackets (located on the rear of the fixture) for secure installations. The brackets
both have a 45° bend that allows the fixture to be angled downwards during installation.
Combine 2-3 of these fixtures in each elevator car for best results. Power connections to the
UV unit can be completed via two accessible, threaded wiring hubs (1/2" or 3/4").

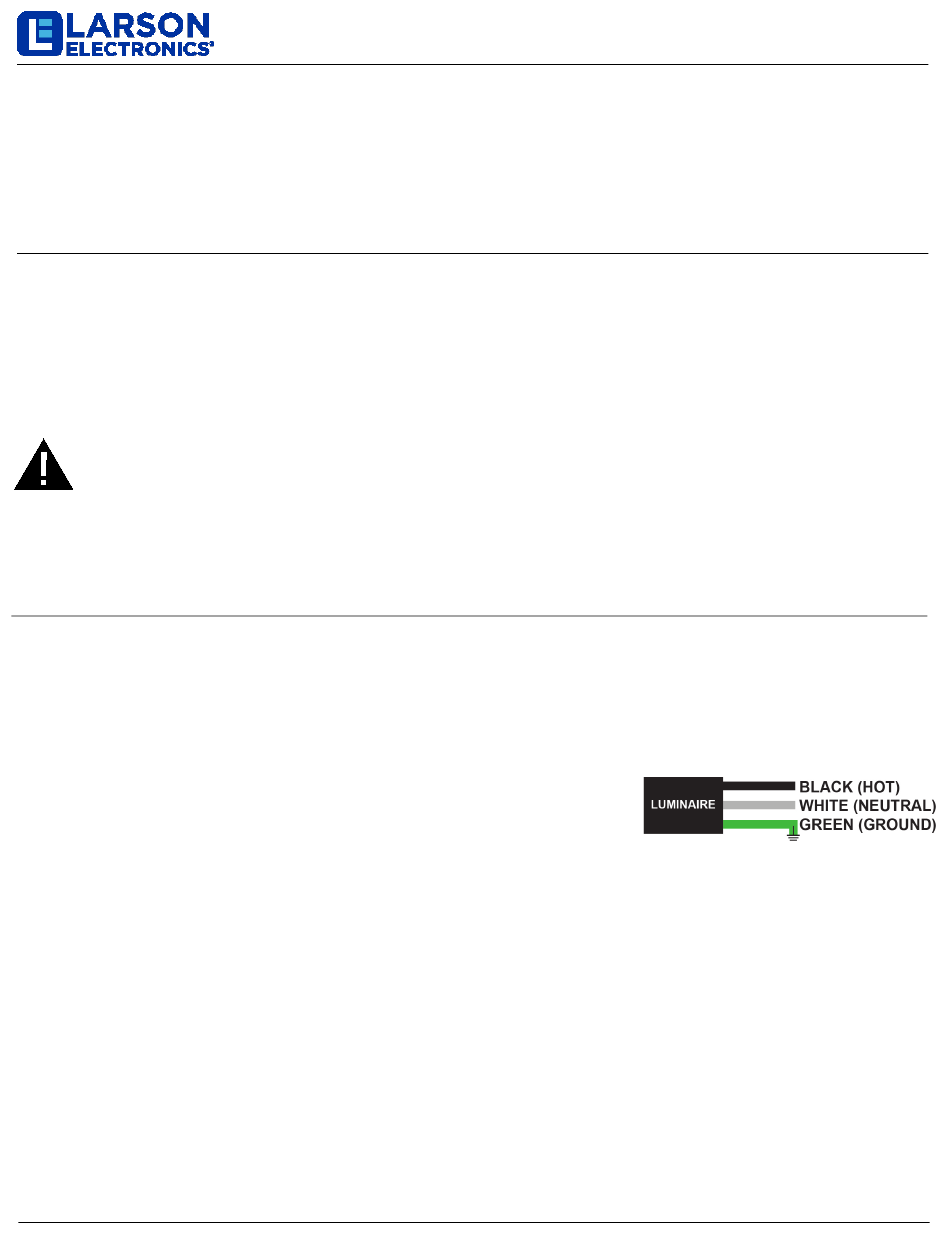

Wiring

Before you begin connecting any wiring, be sure the supply power is turned off at the breaker. Complete connections between the supply
wiring and the luminaire wiring per the diagram above using suitable connectors. Wiring from luminaire extends from the hub located at the
side of the fixture. Be sure to follow local and national code when completing these connections. Once connections are completed, the
fixture is ready to be powered on.

Lamp Replacement

NOTE:
Do not touch bulb with bare hands. The oil in your skin will damage the lamp. Fingerprints will result in reduced performance
and significantly reduce the lifespan of the lamp unless they are removed with alcohol.
To replace a burned out or broken bulb, first make sure the bulb you are replacing it with is of the same type and rating. Also, be sure
power is off at the breaker. This fixture uses 2-pin T8 style fluorescent bulbs. Remove the old bulb by rotating 1/4 turn to free the bulb from
it's receptacles. Install the new bulb by sliding the pins at the ends of the lamp into the open slots in the bulb receptacles and rotate 1/4
turn to secure it in place. Restore power.
Larson Electronics, LLC
Continuous Operation
Instruction Manual
IND-EV-SS-48-1L-UVC-V3-MS
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (800) 369-6671
MUST BE WIRED
Fax: (903) 498-3364
IND-EV-SS-48-1L-UVC-V3-MS
IN ACCORDANCE
www.larsonelectronics.com
WITH
1 of 3
