Larson Electronics IND-LLP-UVC-KT.EV-R1-120V-0.75IN Instruction Manual

Dental Exam Room UV Disinfection Package for Dental Offices
Thank you for your purchase of the Larson Electronics IND-LLP-UVC-KT.EV-R1-120V-0.75INeLEVATOR UV Disinfection Package. The
IND-LLP-UVC-KT.EV-R1-120V-0.75IN includes one Corner Mount Elevator UVC Fixture, one UV Air Disinfection for Occupied Areas,
and one Contact-less Device to help operate sanitation devices. The IND-LLP-UVC-KT.DDS-R1-120V includes everything needed to
disinfect and keep a single dental patient room safe both during and after a visit. The indirect UV air disinfection fixture cleans the upper

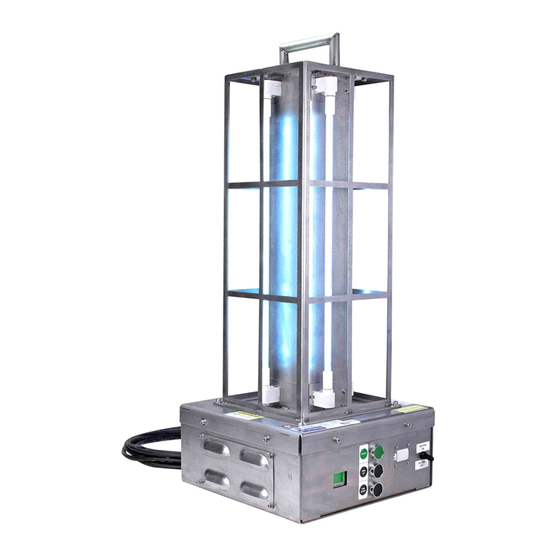

room air of occupied spaces while the germicidal UV sanitation light can then be used to thoroughly disinfect the room once it is empty
again.
EPA Reg. No 98409-1
EPA Est. No. 98409-TX-1
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THE IND-AHC-TRF-2X2-UVC-R1-120V SERIES AND
IND-EV-SS-48-1L-UVC-V1-MS MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND ALL APPLICABLE
LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS PRODUCT.
IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET, CONSULT AN
ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE INSTALLATION OR
PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK – DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING. RISK
OF PERSONAL INJURY – FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY. RISK
OF BURN – ALLOW FIXTURE TO COOL BEFORE SERVICING.
WARNING: ULTRAVIOLET LIGHT IS HARMFUL TO EYES AND SKIN. DO NOT STARE DIRECTLY INTO THE
ULTRAVIOLET BEAM WITHOUT WEARING PROTECTIVE GEAR TO PROTECT EYES FROM LONG TERM DAMAGE.
UNPLUG LAMP BEFORE SERVICING.
The Larson Electronics IND-EV-SS-48-1L-UVC-V1-MS Corner Mount UV Fluorescent Fixture provides UVC
illumination at a 45° angle to the ground which is ideal for use in elevators. This 40-watt unit features one, 4-foot UV
fluorescent lamp with shatter proof coating, housed in a 304 stainless steel housing. The luminary caters to corner
surface mounting, operates on 120-277V AC, 50/60 Hz, and is equipped with a motion sensor and automatic timer.
For best results, combine 2-3 of these fixtures inside each elevator car.

Mounting

The IND-EV-SS-48-1L-UVC-V1-MS features a corner surface
mounting system that allows the beam to project at a 45° towards
the ground. Operators may use four L-bracket mounting taps (one
at each corner) for secure installations. Combine 2-3 of these
fixtures in each elevator car for best results. Power connections to
the UV unit can be completed via two accessible, threaded wiring
hubs (1/2" or 3/4").

Wiring

Before you begin connecting any wiring, be sure the supply power is turned off at the breaker. Complete connections
between the supply wiring and the luminaire wiring per the diagram above using suitable connectors. Wiring from luminaire
extends from the hub located at the side of the fixture. Be sure to follow local and national code when completing these
connections. Once connections are completed, the fixture is ready to be powered on.

Lamp Replacement

NOTE:
Do not touch bulb with bare hands. The oil in your skin will damage the lamp. Fingerprints will result in reduced
performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol.
To replace a burned out or broken bulb, first make sure the bulb you are replacing it with is of the same type and rating. Also,
be sure power is off at the breaker. This fixture uses 2-pin T8 style fluorescent bulbs. Remove the old bulb by rotating 1/4
turn to free the bulb from it's receptacles. Install the new bulb by sliding the pins at the ends of the lamp into the open slots in
the bulb receptacles and rotate 1/4 turn to secure it in place. Restore power.
