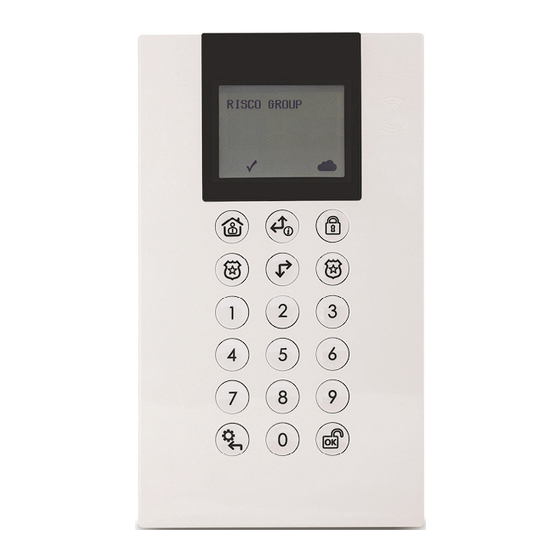

- Page 1 LCD Panda Keypad & LCD Panda Proximity Keypad Installation and User Guide Models: RP432KPP2...
- Page 2 Language Page...
-
Page 3: Main Features
Introduction The user-friendly wired LCD & Proximity keypad enables simple operation and programming of the LightSYS (version 5.63 and above) and ProSYS Plus (version 1.2 and above) security systems, and for the CS (Version 3.1.0.0003). Main Features Optional built-in proximity tag reader ... - Page 4 Figure 3 Figure 4 Figure 5 * Used for tamper 4. Connect the wires to the (AUX, COM and BUS) connector shown in Figure 7. 5. Mount the keypad to the mounting bracket (see Figure 4). 6. Insert the fastening screw to lock the keypad (see Figure 5). Mounting on Gang Box (Optional): 1.
-
Page 5: Keypad Pcb
Keypad PCB Use DIP switches 1 to 5 to define the BUS ID of each accessory / detector according to the table in Figure 7. Figure 7... - Page 6 Configuration Visual Indicators The following visual indicators are displayed on the LCD panel: Icon Indication Operation System trouble System is operating normally Trouble System is ready to be armed System is not ready to be armed Slow Flash System is ready to be armed while exit/entry zone is open System is armed in Full Arm or Stay Arm mode System is disarmed...
-
Page 7: Emergency Keys
Keypad Keys Control Keys Operation In Normal Operation mode: Used for Away (Full setting). In User Functions menu: Used to change data. In Normal Operation mode: Used for Stay arming (Part Setting). In User Functions menu: Used to change data. Used to disarm (unset) the system after a user code is entered;... -
Page 8: Keypad Settings
Numerical keys that are used to input numeric codes (arming, disarming or used to activate specific functions) Keypad Settings Note: The following settings must be defined individually for each keypad connected to the system. To define keypad settings when idle follow this procedure: 1. -
Page 9: Cleaning The Keypad
Panda Wired LCD Keypad, Proximity RED Compliance Statement Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com... - Page 10 RISCO, for a period of (i) 24 months from the date of delivery of the Product (the “Warranty Period”). This Limited Warranty covers the Product only within the country where the Product was originally purchased and only covers Products purchased as new.
- Page 11 Software and applications distributed or made available by RISCO in conjunction with the Product (with or without the RISCO brand), including, but not limited to system software, as well as P2P services or any other service made available by RISCO in relation to the Product, are not covered under this Limited Warranty.
-
Page 12: Contacting Risco Group
RED Compliance Statement Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website (www.riscogroup.com) or at the following telephone and fax numbers:...
