Avtech AV-1011-C-MI Instructions Manual page 15

1)
2)

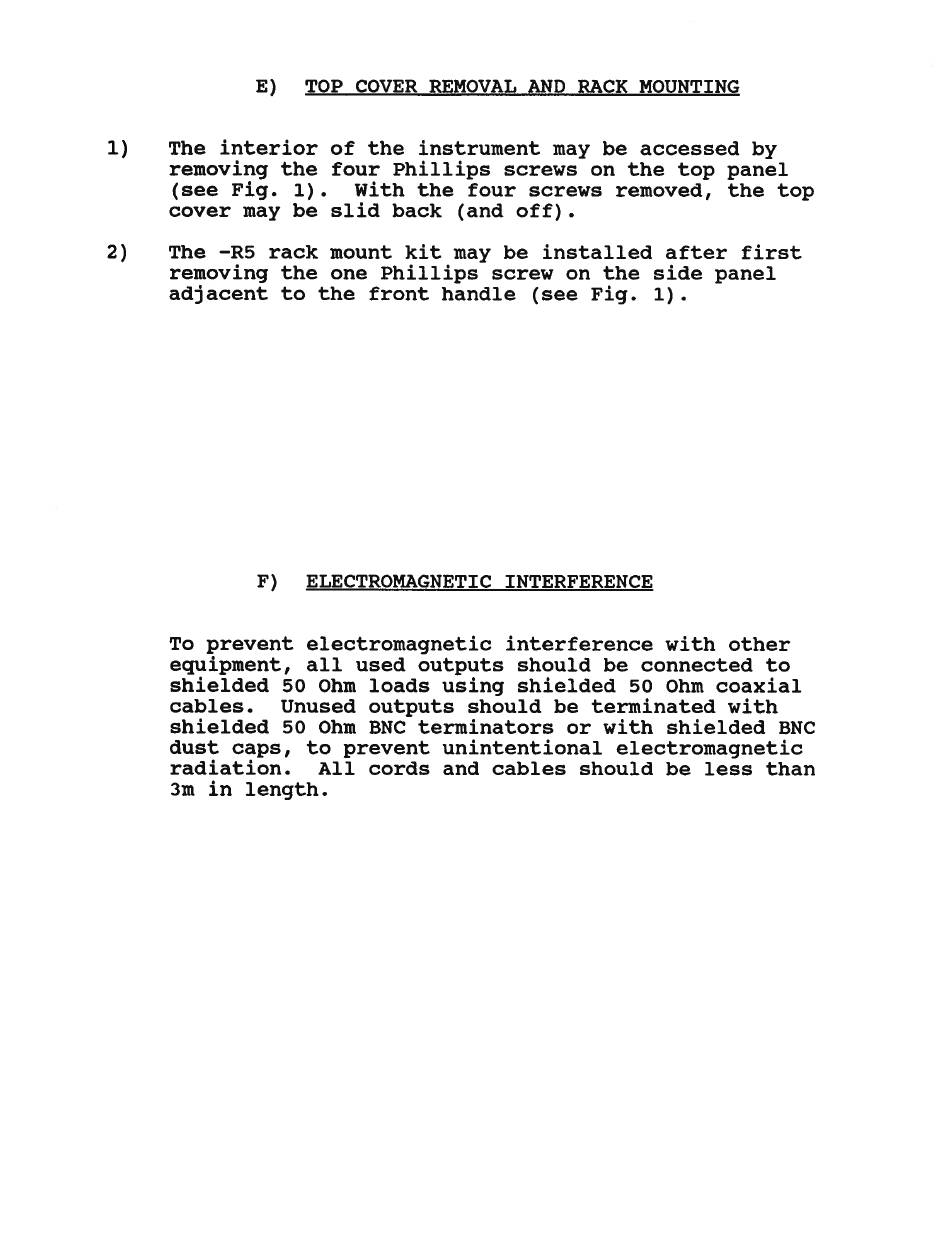

E) TOP COVER REMOVAL AND RACK MOUNTING
The interior of the instrument may be accessed by
removing the four Phillips screws on the top panel
(see Fig. 1). With the four screws removed, the top
cover may be slid back (and off).
The -R5 rack mount kit may be installed after first
removing the one Phillips screw on the side panel
adjacent to the front handle (see Fig. 1).
F) ELECTROMAGNETIC INTERFERENCE
To prevent electromagnetic interference with other
equipment, all used outputs should be connected to
shielded 50 Ohm loads using shielded 50 Ohm coaxial
cables. Unused outputs should be terminated with
shielded 50 Ohm BNC terminators or with shielded BNC
dust caps, to prevent unintentional electromagnetic
radiation. All cords and cables should be less than
3m in length.
