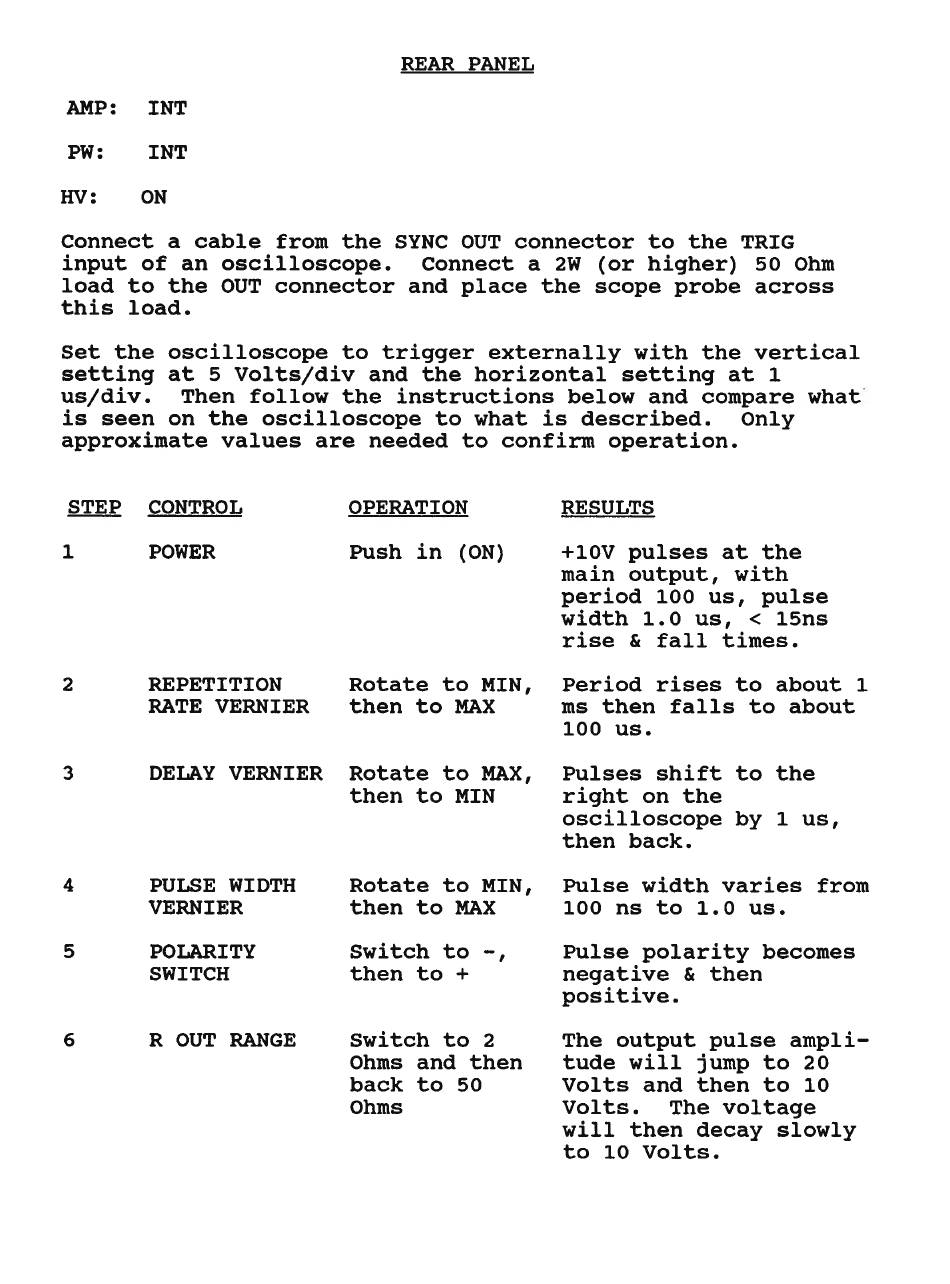

REAR
PANEL
AMP:
INT
PW:
INT
HV:
ON
Connect
a
cable
from
the
SYNC
OUT
connector
to
the
TRIG
input
of
an
oscilloscope.
Connect
a
2W
(or
higher)
50
Ohm
load
to
the
OUT
connector
and
place
the
scope
probe
across
this
load.
Set
the
oscilloscope
to
trigger
externally
with
the
vertical
setting
at
5 Volts/div
and
the
horizontal
setting
at
1
us/div.
Then
follow
the
instructions
below
and
compare
what
is
seen
on
the
oscilloscope
to
what
is
described.
Only
approximate
values
are
needed
to
confirm
operation.
STEP
CONTROL
OPERATION
RESULTS
1
POWER
Push
in
(ON)
+10V
pulses
at
the
main
output,
with
period
100
us,
pulse
width
1.0
us,
<
15ns
rise
&
fall
times.
2
REPETITION
Rotate
to
MIN,
Period
rises
to
about
1
RATE
VERNIER
then
to
MAX
ms
then
falls
to
about
100
us.
3
DELAY
VERNIER
Rotate
to
MAX,
Pulses
shift
to
the
then
to
MIN
right
on
the
oscilloscope
by
1 us,
then
back.
4
PULSE
WIDTH
Rotate
to
MIN,
Pulse
width
varies
from
VERNIER
then
to
MAX
100
ns
to
1.0
us.
5
POLARITY
Switch
to
-,
Pulse
polarity
becomes
SWITCH
then
to
+
negative
& then
positive.
6
R OUT
RANGE
Switch
to
2
The
output
pulse
ampli-
Ohms
and
then'
tude
will
jump
to
20
back
to
50
Volts
and
then
to
10
Ohms
volts.
The
voltage
will
then
decay
slowly
to
10
Volts.
