Avtech AV-1002-C-KMP2 Instructions Manual page 9

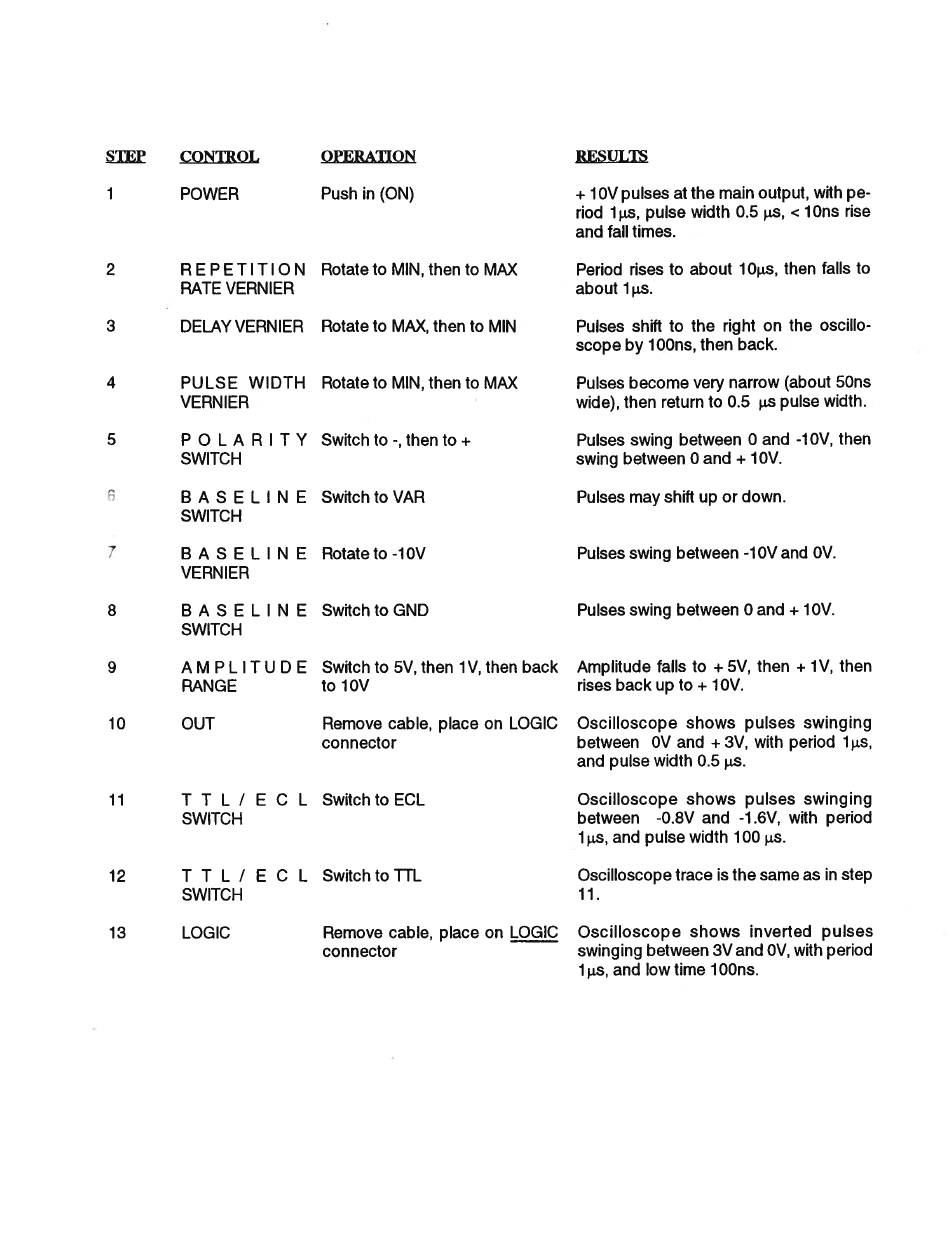

STEP CONTROL $$QOPERATION
10
11
12
13
POWER
REPETITION
RATE VERNIER
DELAY VERNIER
PULSE WIDTH
VERNIER
POLARITY
SWITCH
BASELINE
SWITCH
BASELINE
VERNIER
BASELINE
SWITCH
AMPLITUDE
RANGE
OUT
TTL/V/ECL
SWITCH
TTL/ECL
SWITCH
LOGIC
Push in (ON)
Rotate to MIN, then to MAX
Rotate to MAX, then to MIN
Rotate to MIN, then to MAX
Switch to -, then to +
Switch to VAR
Rotate to -10V
Switch to GND
Switch to 5V, then 1V, then back
to 10V
Remove cable, place on LOGIC
connector
Switch to ECL
Switch to TTL
Remove cable, place on LOGIC
connector
RESULTS
+ 10V pulses at the main output, with pe-
riod 1ps, pulse width 0.5 ps, < 10ns rise
and fall times.
Period rises to about 10ys, then falls to
about 1ps.
Pulses shift to the right on the oscillo-
scope by 100ns, then back.
Pulses become very narrow (about 50ns
wide), then return to 0.5 ps pulse width.
Pulses swing between 0 and -10V, then
swing between 0 and + 10V.
Pulses may shift up or down.
Pulses swing between -10V and OV.
Pulses swing between 0 and + 10V.
Amplitude falls to + 5V, then + 1V, then
rises back up to + 10V.
Oscilloscope shows pulses swinging
between OV and + 3V, with period tus,
and pulse width 0.5 ps.
Oscilloscope shows pulses swinging
between -0.8V and -1.6V, with period
ips, and pulse width 100 us.
Oscilloscope trace is the same as in step
11.
Oscilloscope shows inverted pulses
swinging between 3V and OV, with period
1ps, and low time 100ns.
