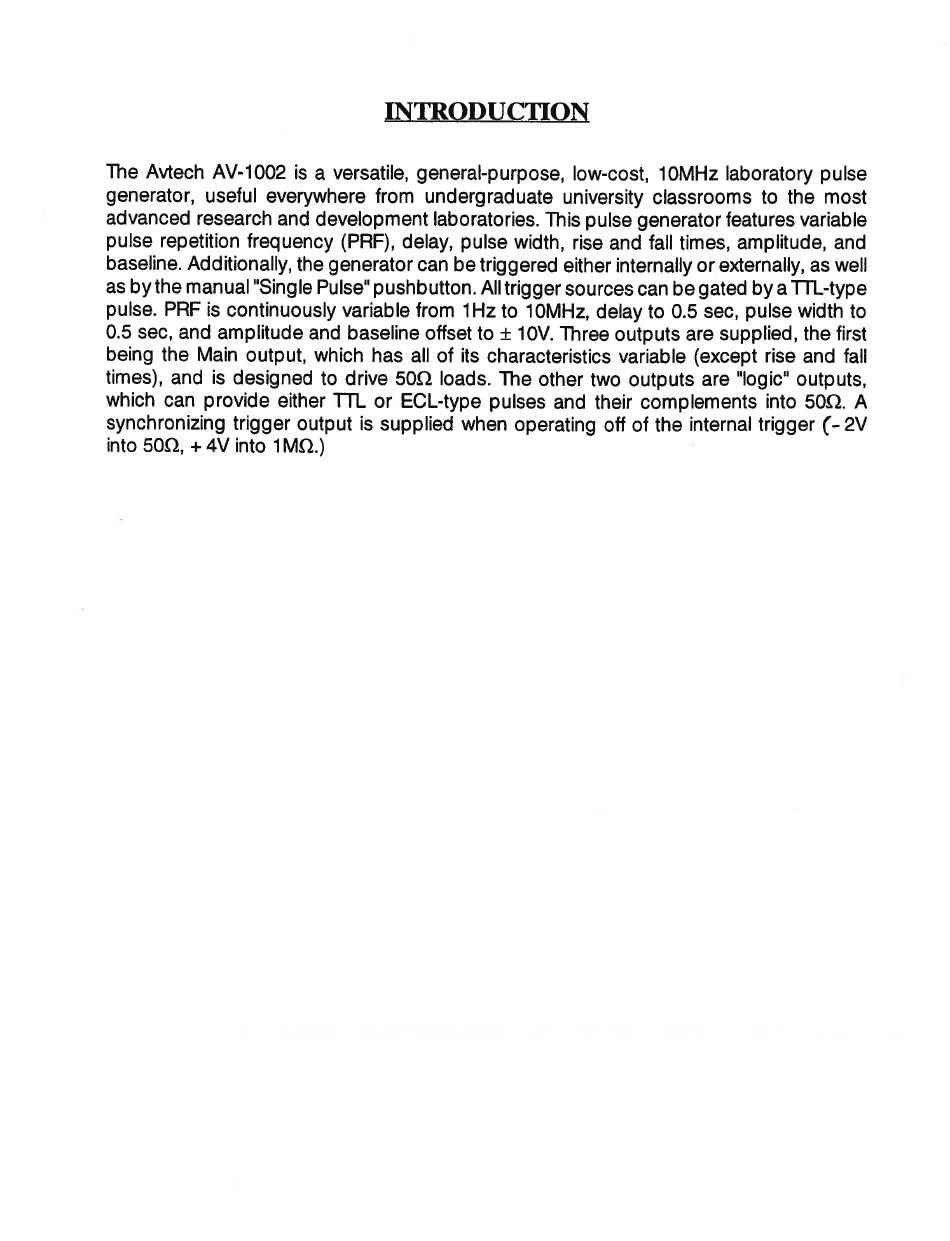

DUCTIO
The Avtech AV-1002 is a versatile, general-purpose, low-cost, 10MHz laboratory pulse
generator, useful everywhere from undergraduate university classrooms to the most
advanced research and development laboratories. This pulse generator features variable
pulse repetition frequency (PRF), delay, pulse width, rise and fall times, amplitude, and
baseline. Additionally, the generator can be triggered either internally or externally, as well
as by the manual "Single Pulse" pushbutton. All trigger sources can be gated by a TIL-type
pulse. PRF is continuously variable from 1Hz to 10MHz, delay to 0.5 sec, pulse width to
0.5 sec, and amplitude and baseline offset to + 10V. Three outputs are supplied, the first
being the Main output, which has all of its characteristics variable (except rise and fall
times), and is designed to drive 50Q loads. The other two outputs are "logic" outputs,
which can provide either TTL or ECL-type pulses and their complements into 50Q. A
synchronizing trigger output is supplied when operating off of the internal trigger (- 2V
into 50Q, + 4V into 1MQ.)
