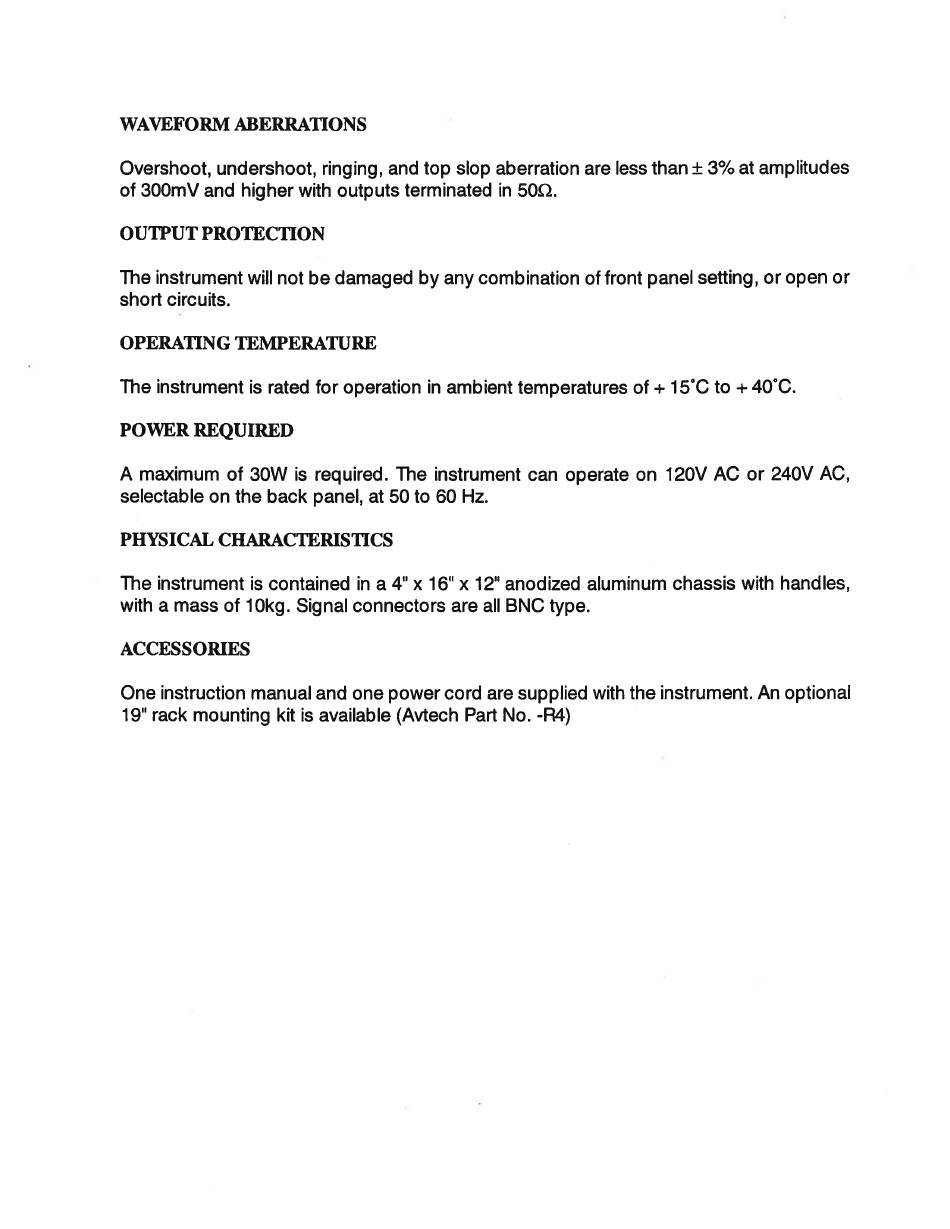

WAVEFORM ABERRATIONS
Overshoot, undershoot, ringing, and top slop aberration are less than + 3% at amplitudes
of 300mV and higher with outputs terminated in 50Q.
OUTPUT PROTECTION
The instrument will not be damaged by any combination of front panel setting, or open or
short circuits.
OPERATING TEMPERATURE
The instrument is rated for operation in ambient temperatures of + 15°C to + 40°C.
POWER REQUIRED
A maximum of 30W is required. The instrument can operate on 120V AC or 240V AC,
selectable on the back panel, at 50 to 60 Hz.
PHYSICAL CHARACTERISTICS
The instrument is contained in a 4" x 16" x 12" anodized aluminum chassis with handles,
with a mass of 10kg. Signal connectors are all BNC type.
ACCESSORIES
One instruction manual and one power cord are supplied with the instrument. An optional
19" rack mounting kit is available (Avtech Part No. -R4)
