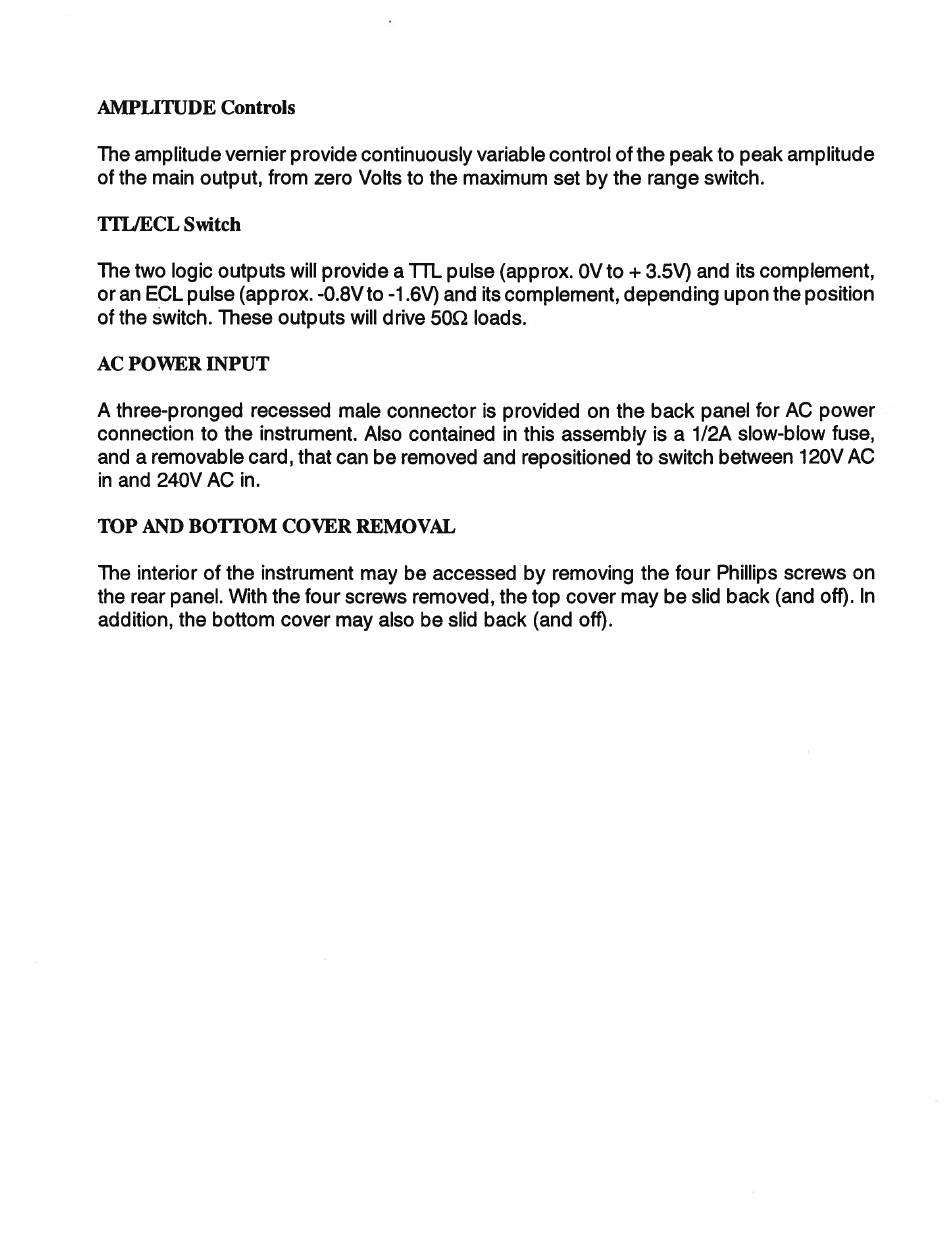

AMPLITUDE Controls
The amplitude vernier provide continuously variable control of the peak to peak amplitude
of the main output, from zero Volts to the maximum set by the range switch.
TTL/ECL Switch
The two logic outputs will provide a TTL pulse (approx. OV to + 3.5V) and its complement,
or an ECL pulse (approx. -0.8V to -1.6V) and its complement, depending upon the position
of the switch. These outputs will drive 50Q loads.
AC POWER INPUT
A three-pronged recessed male connector is provided on the back panel for AC power
connection to the instrument. Also contained in this assembly is a 1/2A slow-blow fuse,
and a removable card, that can be removed and repositioned to switch between 120V AC
in and 240V AC in.
TOP AND BOTTOM COVER REMOVAL
The interior of the instrument may be accessed by removing the four Phillips screws on
the rear panel. With the four screws removed, the top cover may be slid back (and off). In
addition, the bottom cover may also be slid back (and off).
