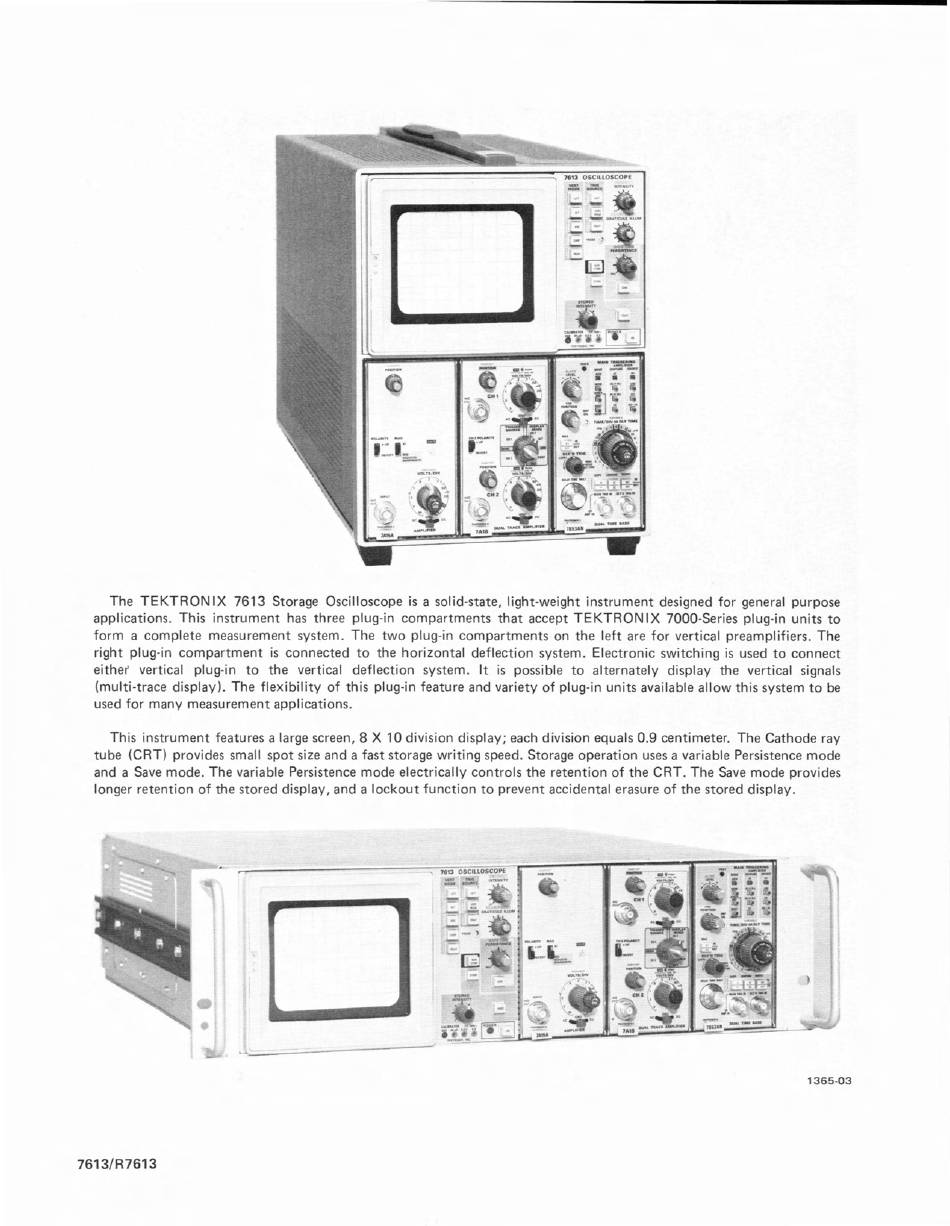

The TEKTRONIX 7613 Storage Oscilloscope is a solid-state, light-weight instrument designed for general purpose
applications. This instrument has three plug-in compartments that accept TEKTRON IX 7000-Series plug-in units to
form a complete measurement system . The two plug-in compartments on the left are for vertical preamplifiers. The
right plug-in compartment is connected to the horizontal deflection system. Electronic switching is used to conneet
eithe~
vertical plug-in to the vertical deflection system. It is possible to alternately display the vertical signals
(multi-trace display). The flexibility of this plug-in feature and variety of plug-in units available allow this system to be
used for many measurement applications.
This instrument features a large screen, 8 X 10 division display; each division equals 0.9 centimeter. The Cathode ray
tube (CRT) provides small spot size and a fast storage writing speed. Storage operation uses a variabie Persistenee mode
and a Save mode. The variabie Persistenee mode electrically contrals the retention of the CRT. The Save mode provides
longer retention of the stored display, and a lockout function to prevent accidental erasure of the stored display.
,..
1365-03
7613/R7613
